PERM
- Homogenous
- Bevelled Edges
- Easy to apply
- 0.051″ thick
- Widths from 2″ to 4″
- Free samples
- 3 Year Guarantee
5S Optimization
3 Year Warranty
Quality Line Marking
Approved Reseller
Enquiry
Enquiry
Samples
PermaStripe Overview

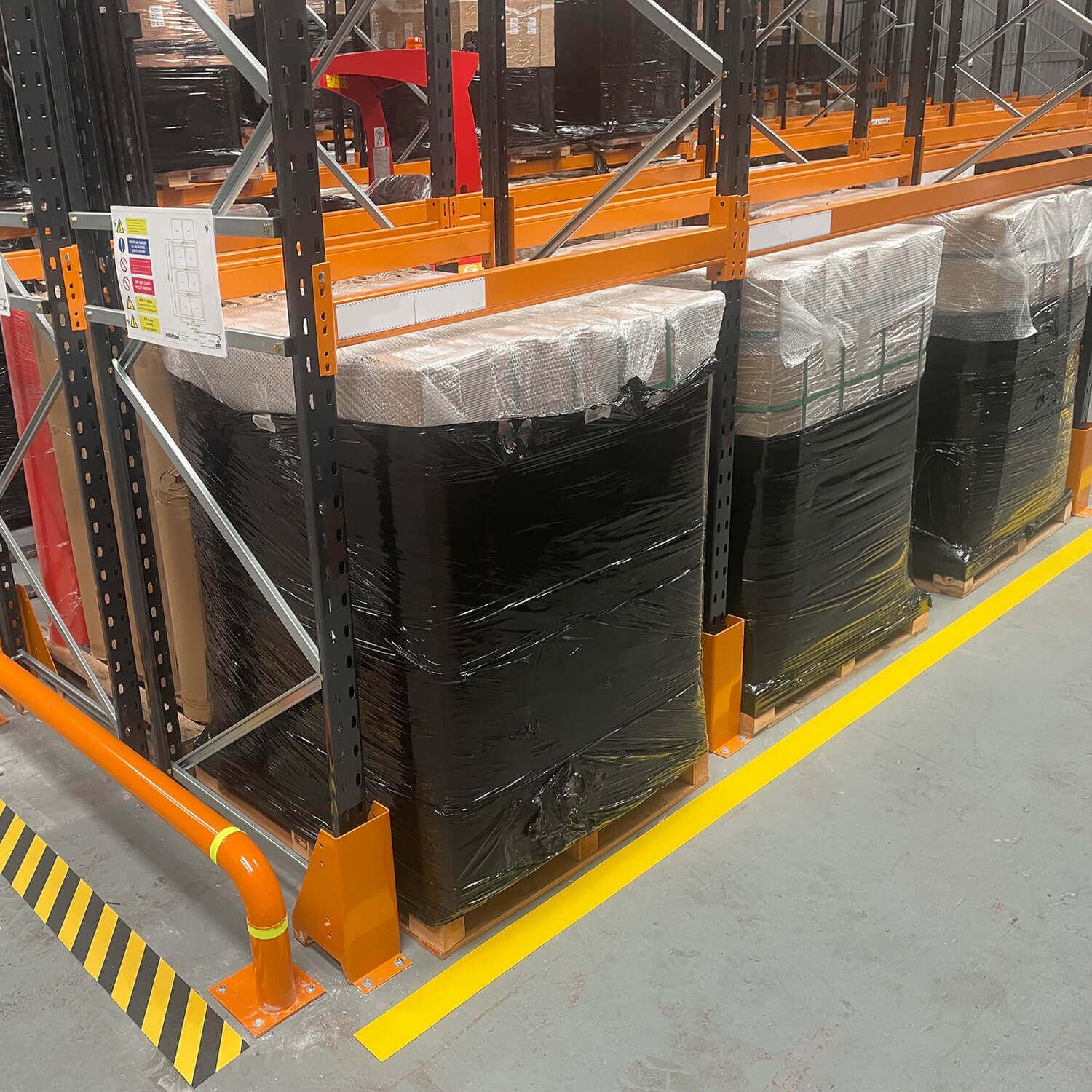

PermaStripe is the world’s most effective and durable floor marking system, designed for warehouse walkways and aisles as an alternative to painted or resin lines. With PermaStripe industrial floor tape, you can create clearly defined routes for employees to work safely and for visitors to move through your facility efficiently.
BENEFITS

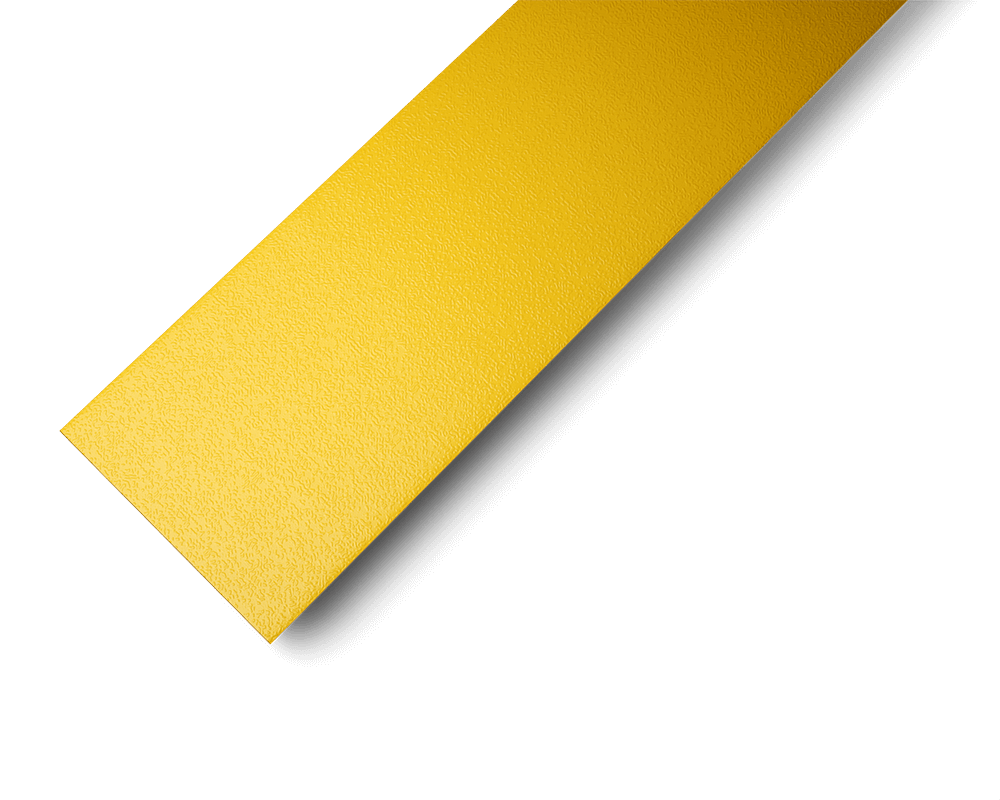

PermaStripe is an industrial-grade floor tape, 1300 microns (0.051”) thick. Its homogeneous construction ensures that scrapes or wear don’t affect the color, as the pigment runs throughout the material.
Made from tough PVC with an embossed surface and beveled edges, PermaStripe is simple to install on a clean, dry surface using its strong, permanent adhesive that covers the full width of the tape from edge to edge.
APPLICATION

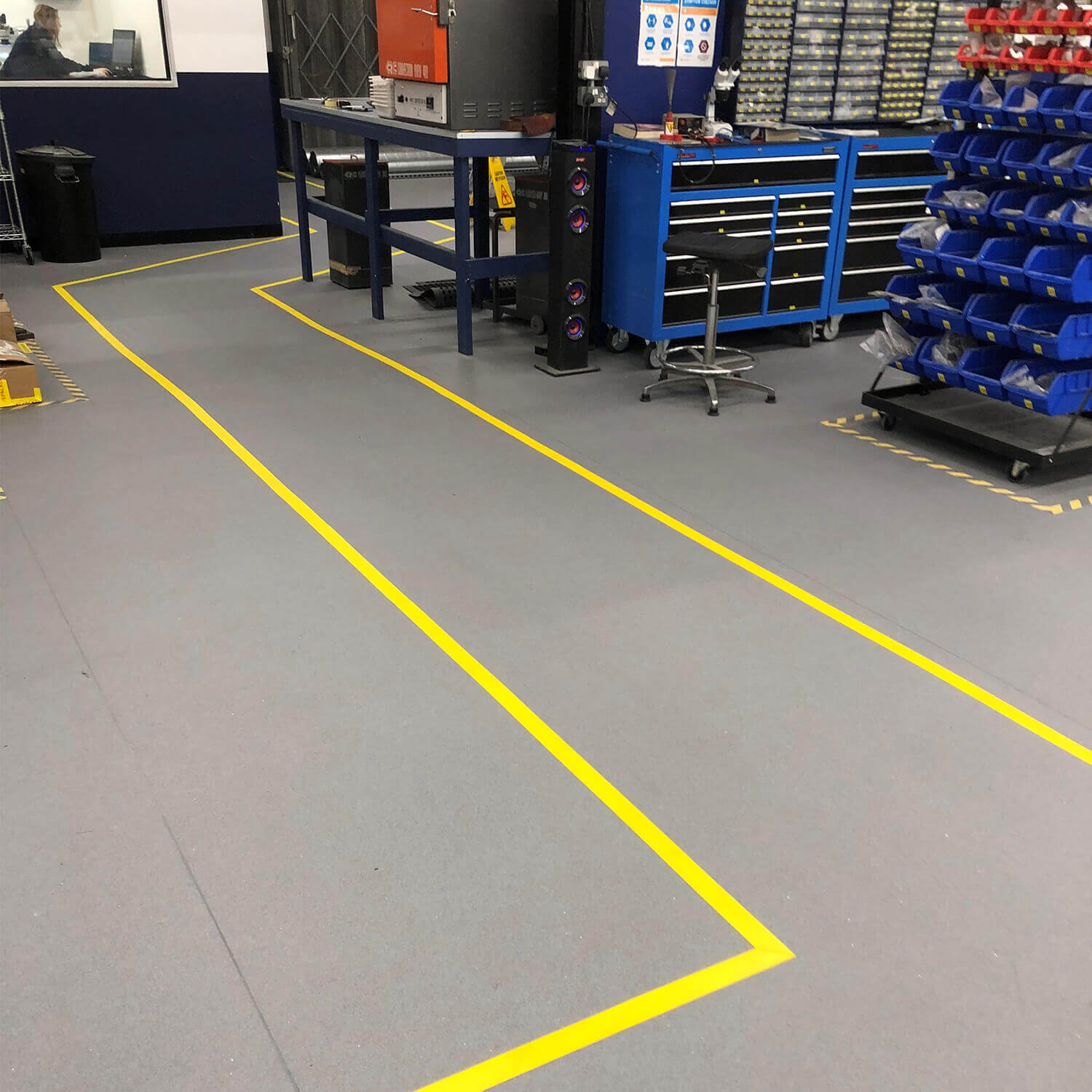

Installing the PermaStripe floor marking tape range is quick and easy. Just peel back the liner and apply to a clean, dry surface-no additional preparation is required. Once in place, the area can be used immediately, minimizing downtime in your workplace.

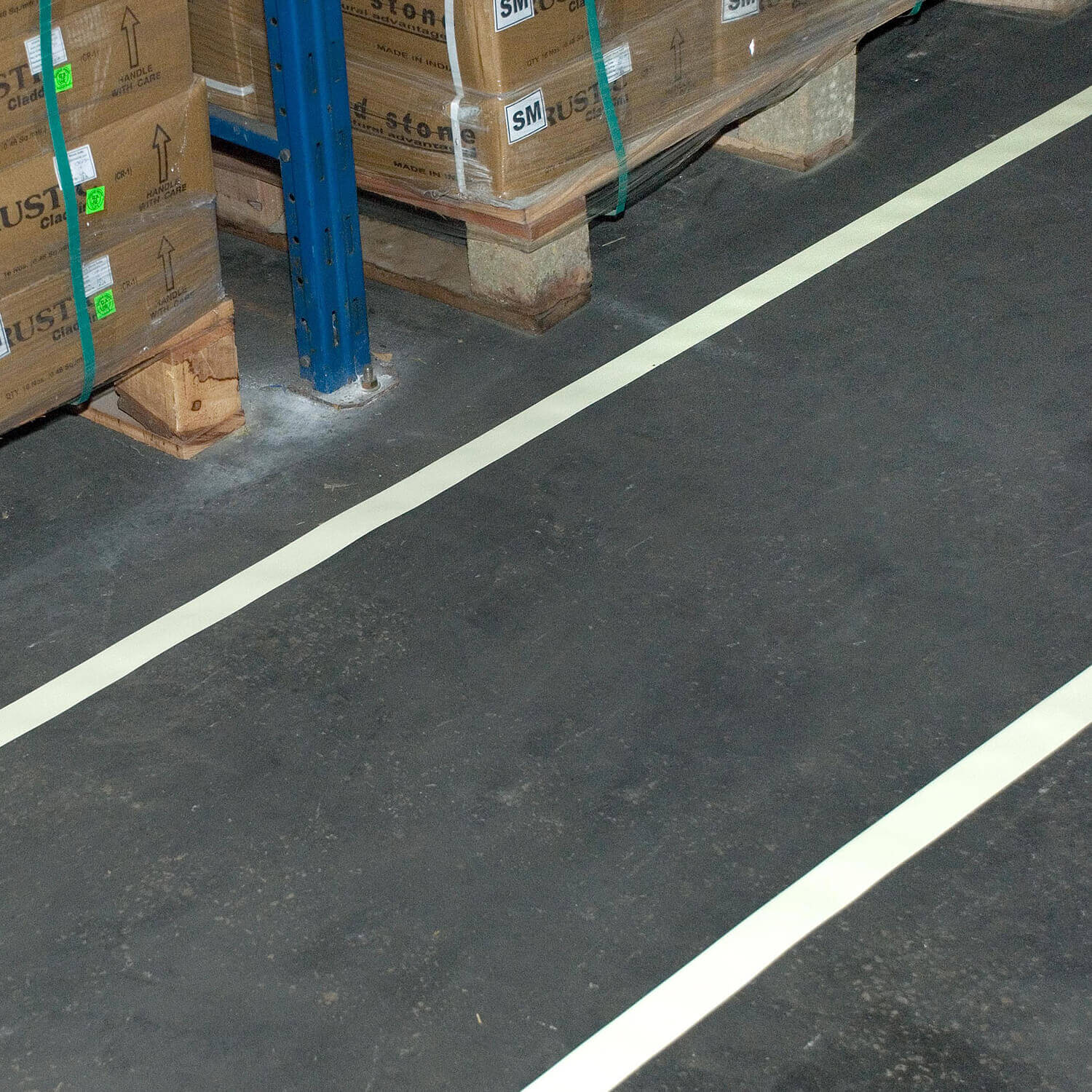

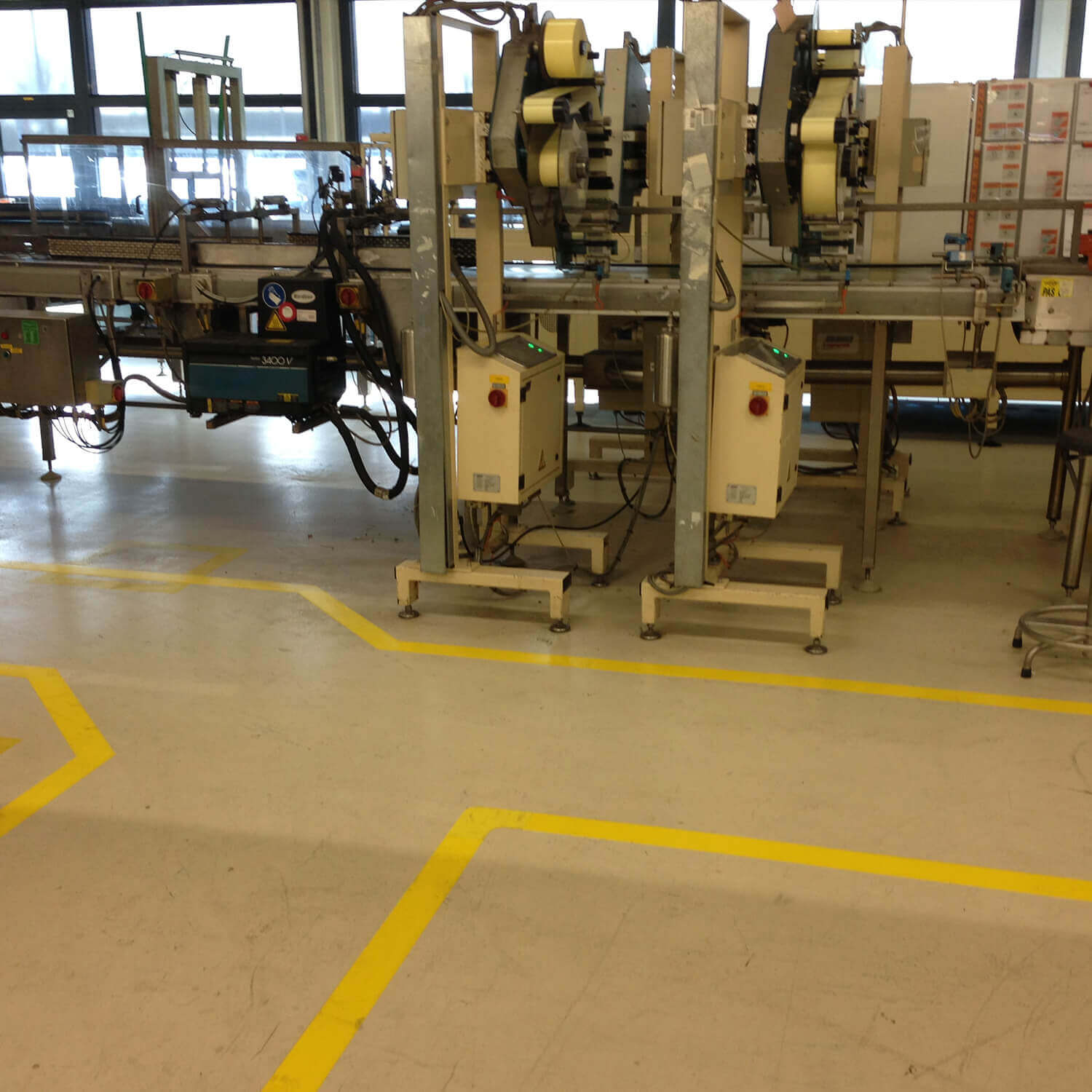

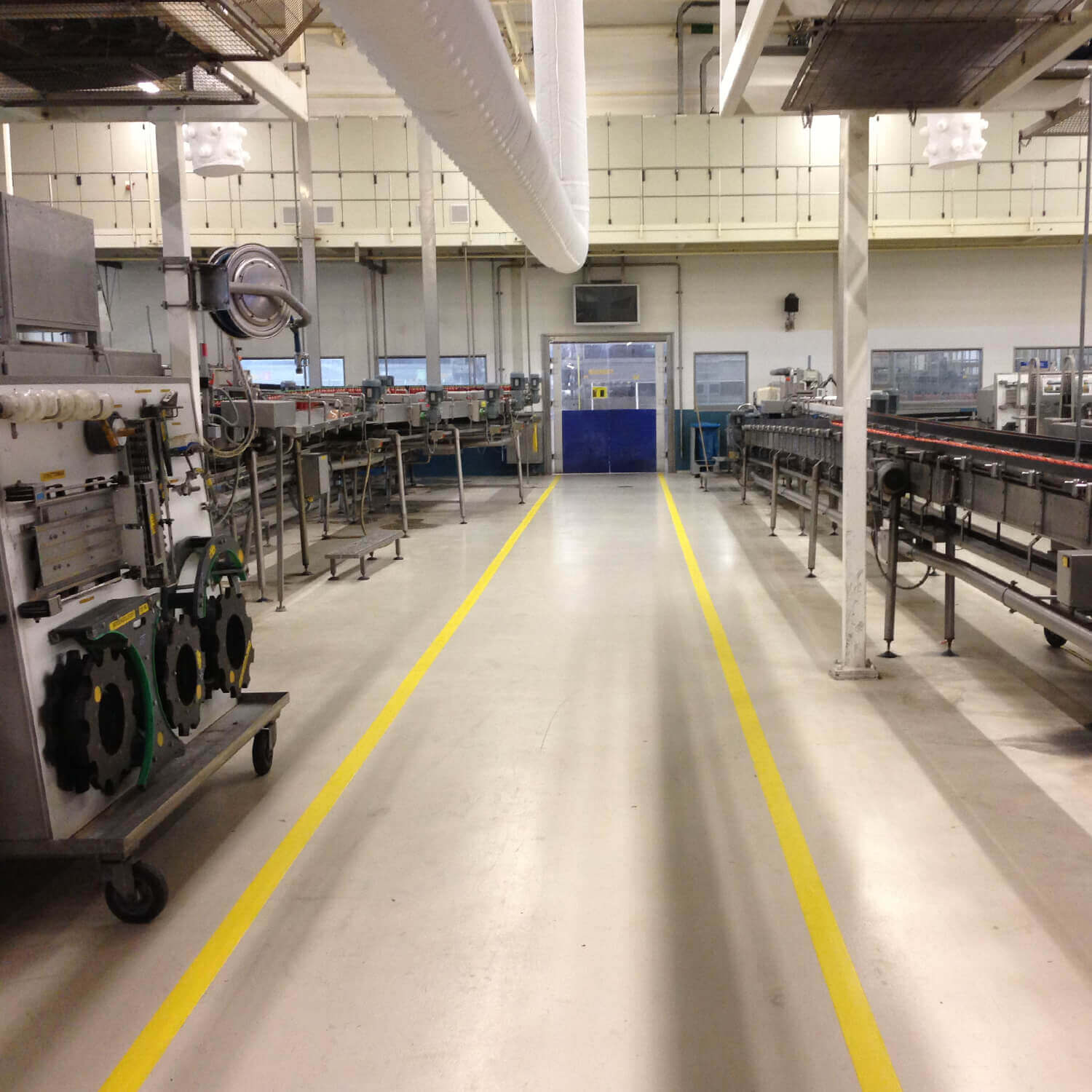

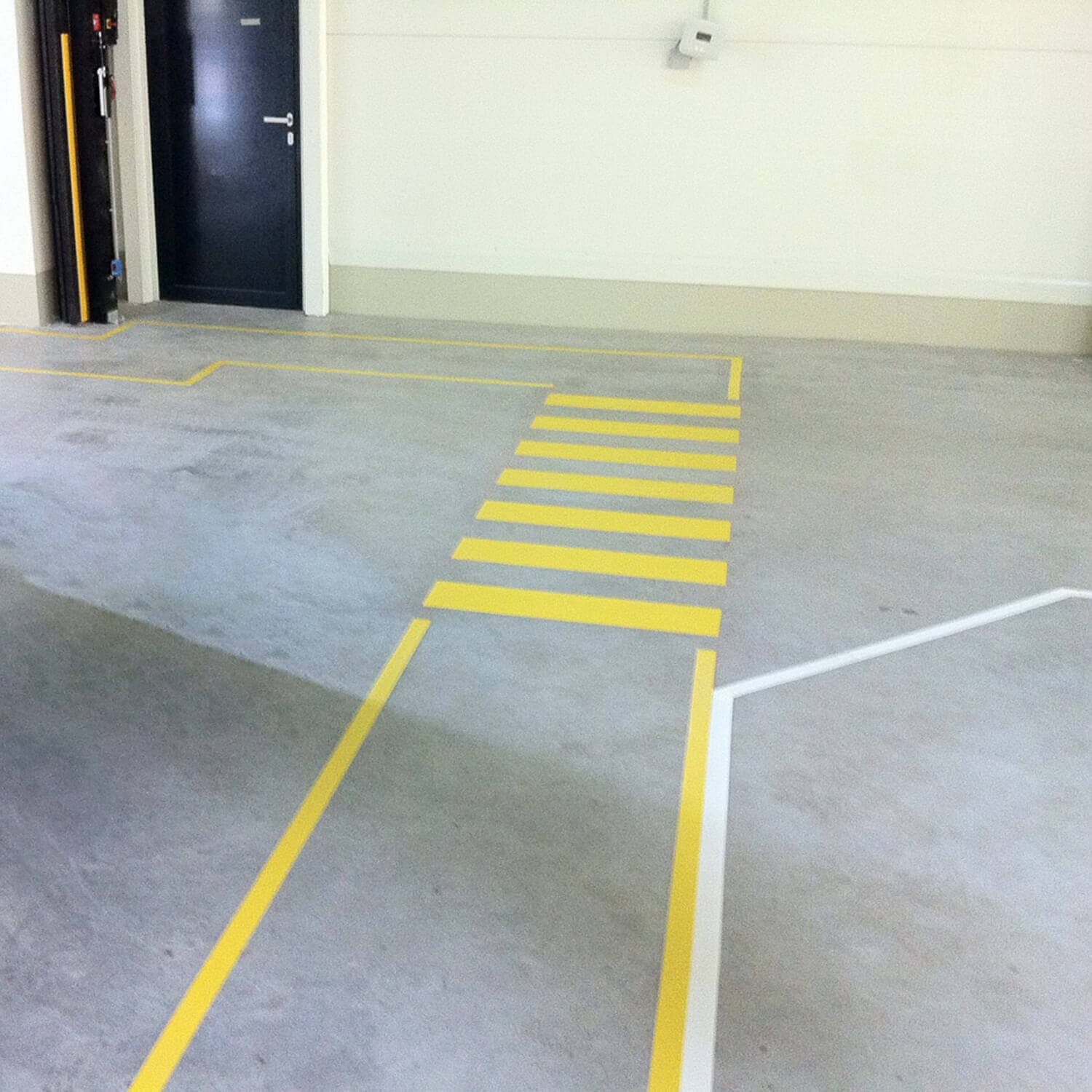

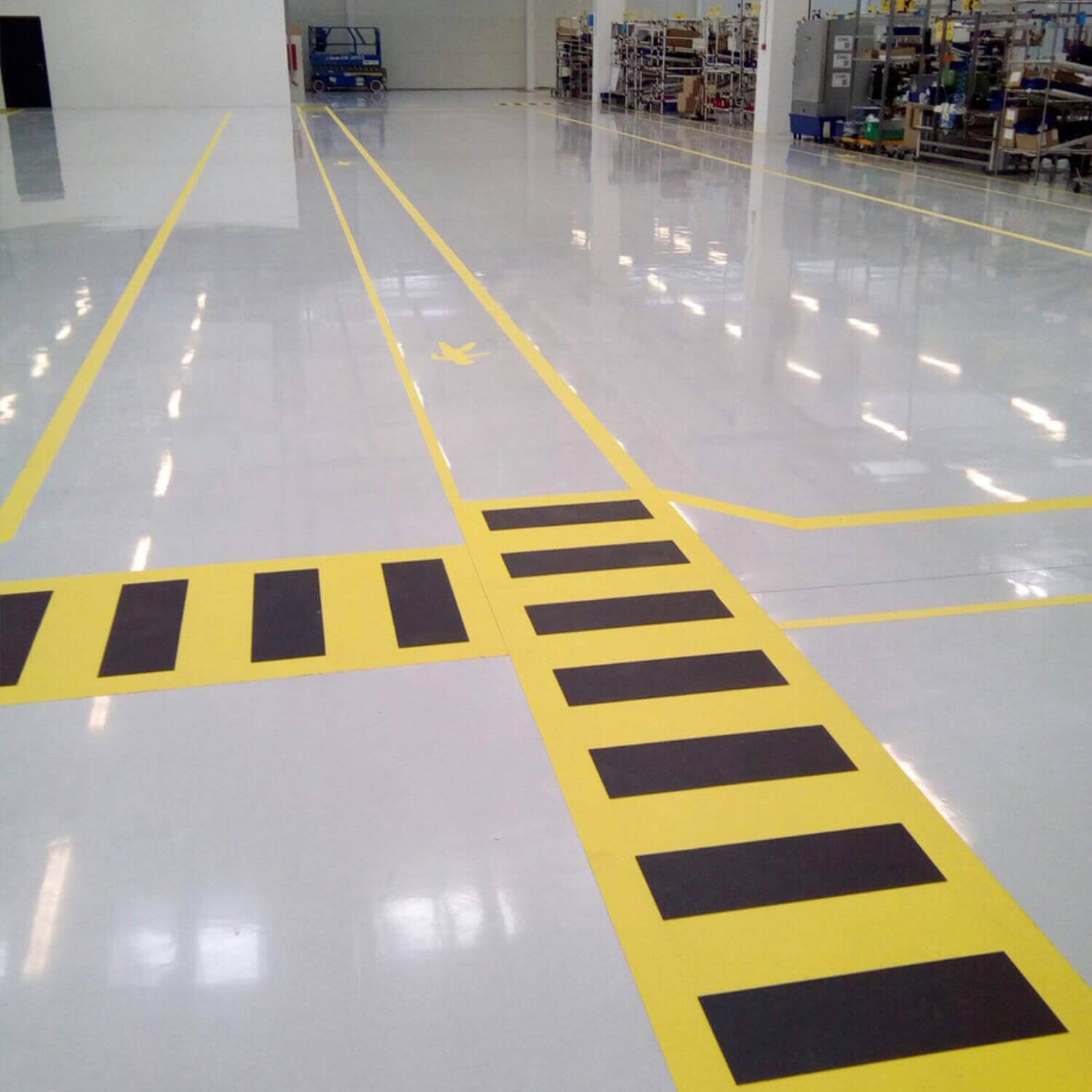

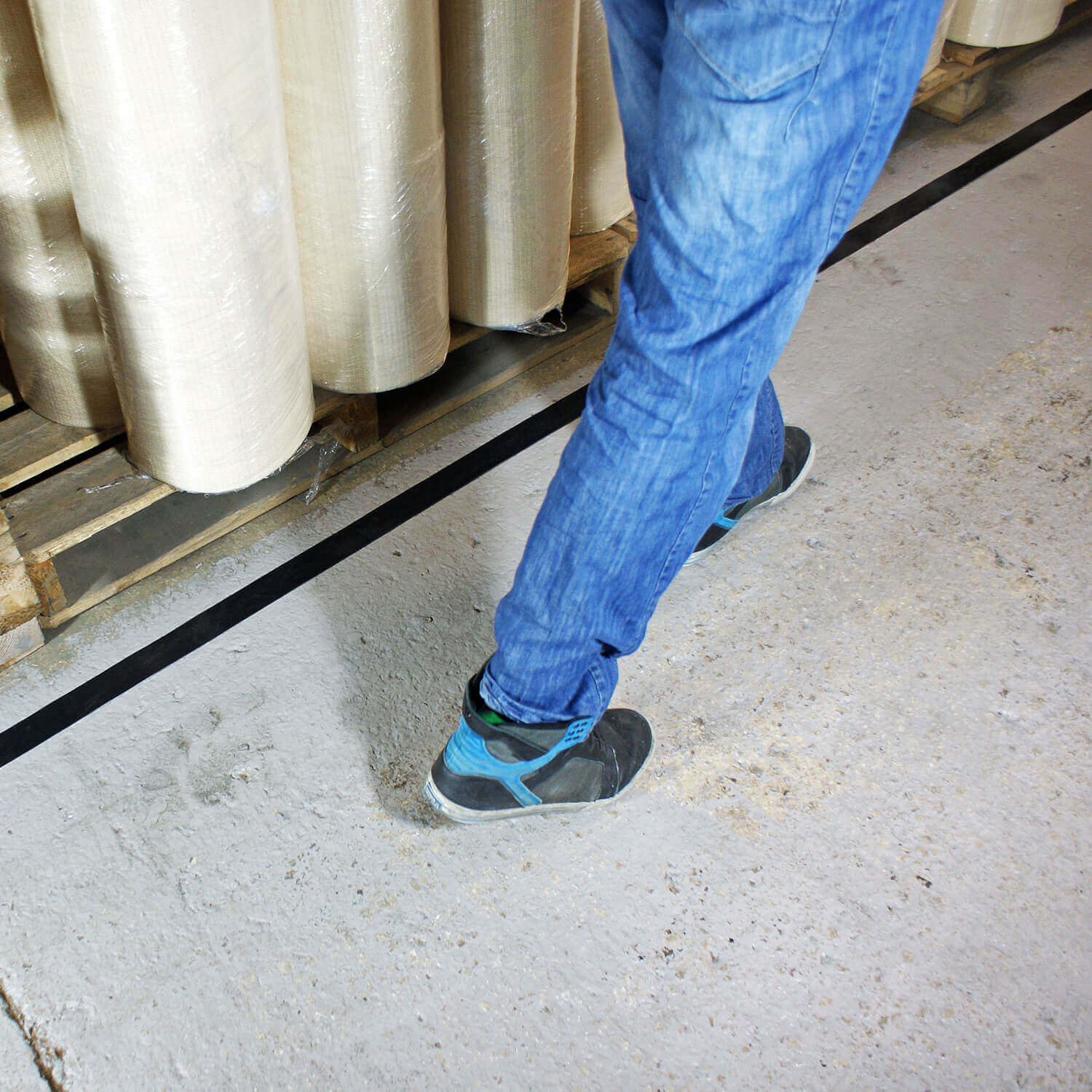

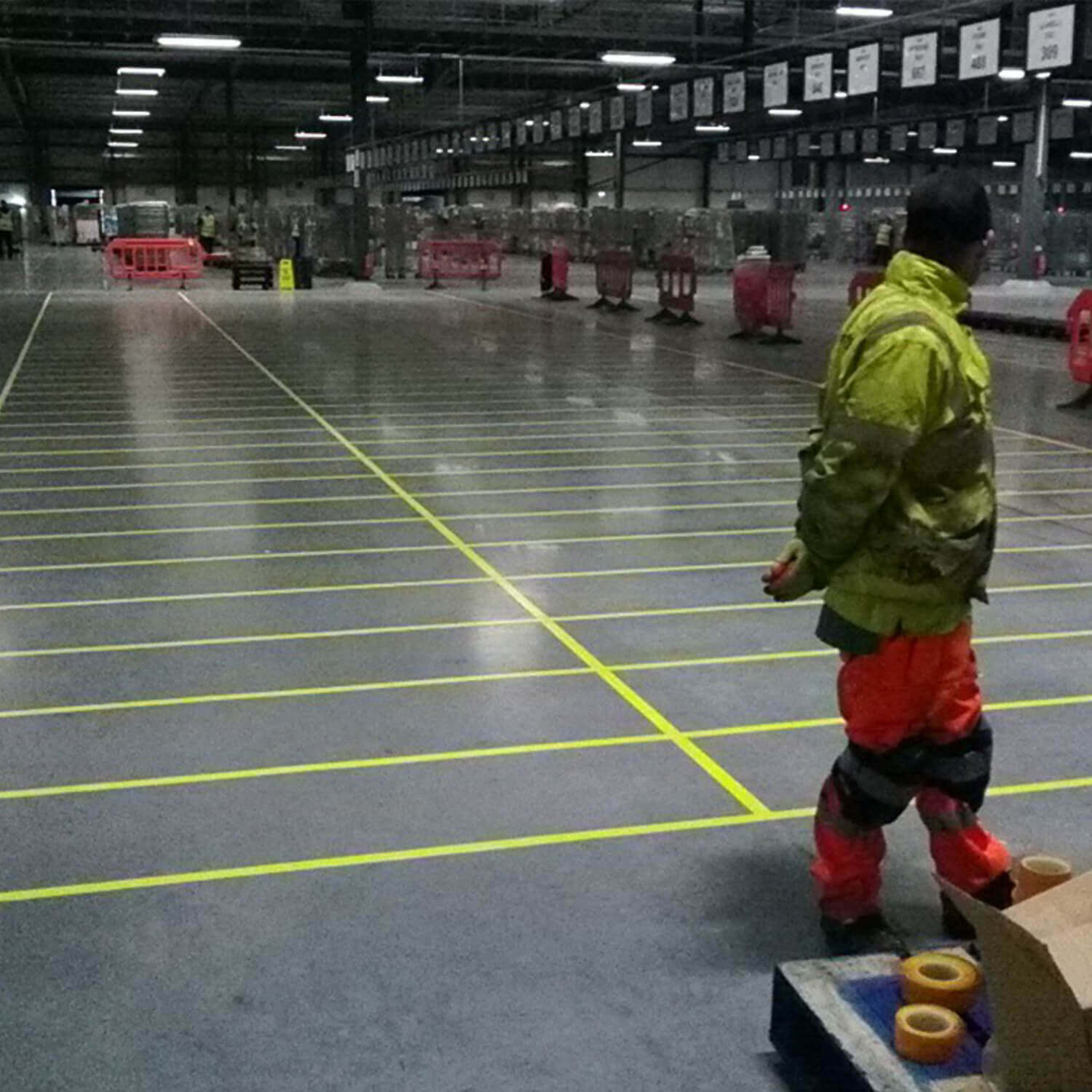

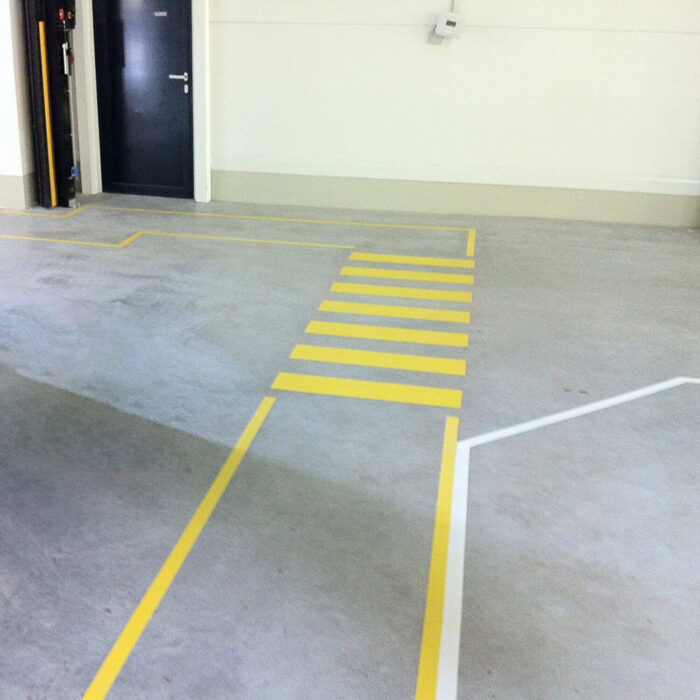

By using PermaStripe for warehouse floor markings, you can optimize your facility, allowing tasks to be carried out more efficiently. Our full color range supports the creation of a 5S floor marking plan that improves organization and safety across your workplace.
PERMASTRIPE SIZES

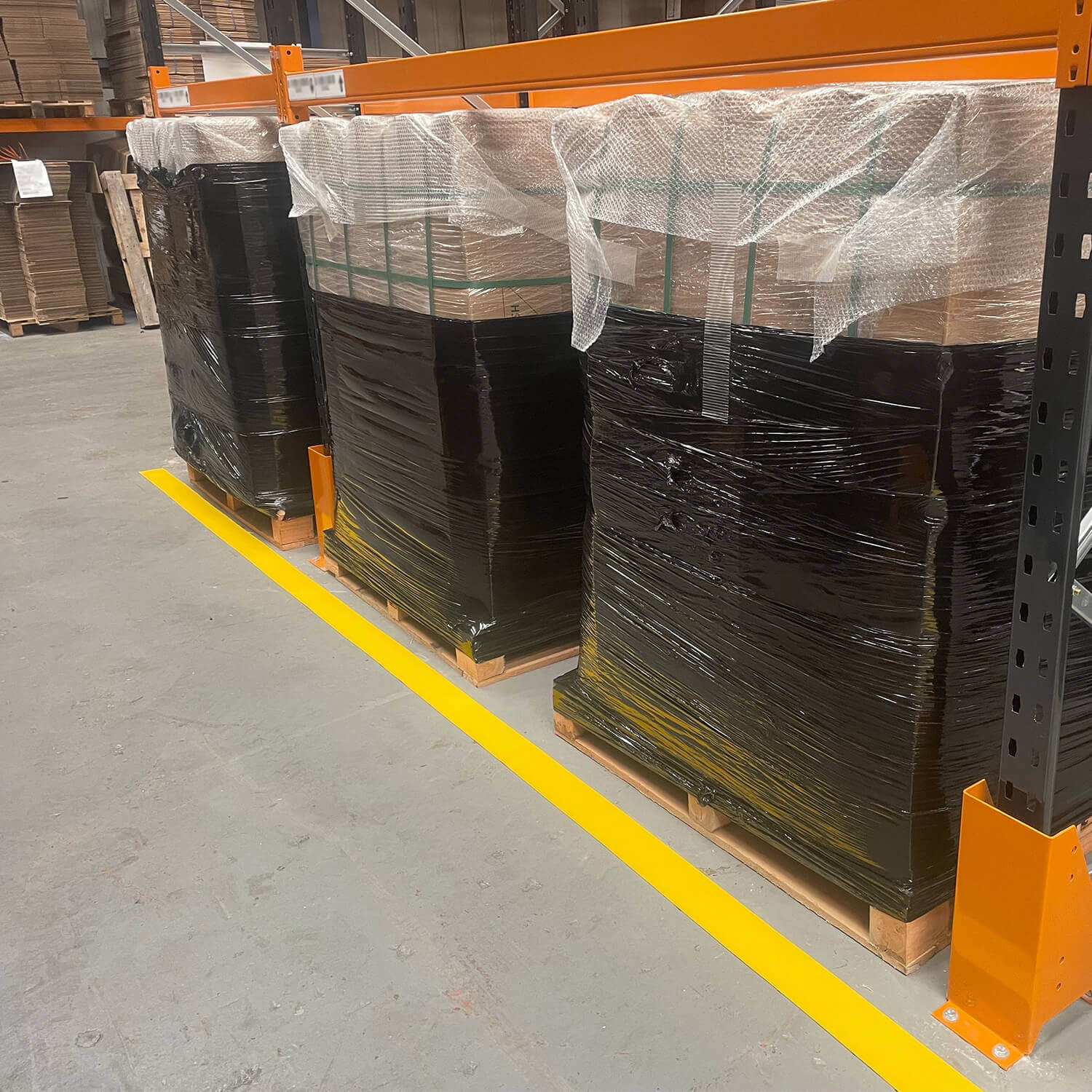

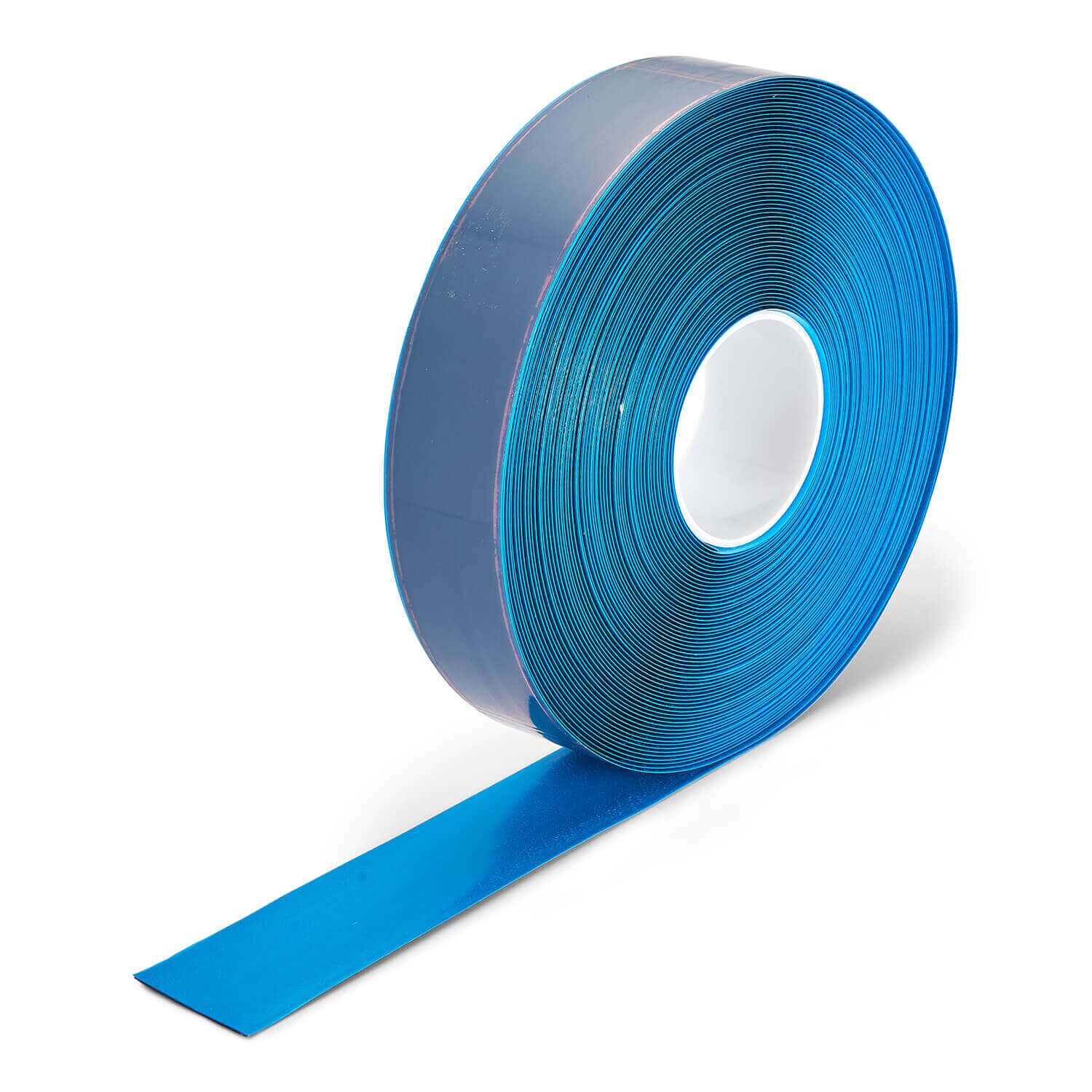

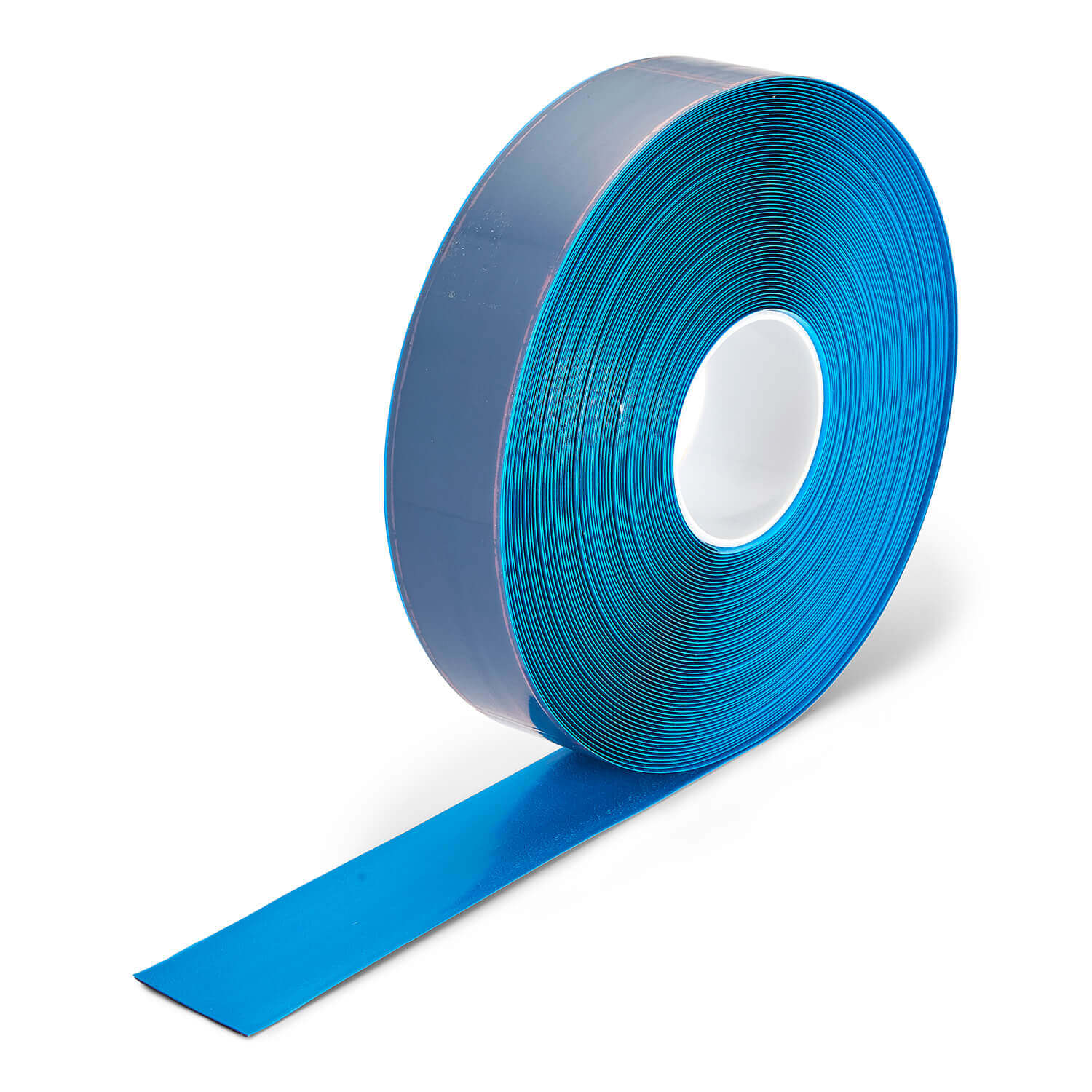

PermaStripe industrial floor marking tape is available for immediate shipping in widths of 2” (50mm), 3” (75mm), and 4” (100mm), each supplied in 98ft (30m) rolls, along with a variety of die-cut shapes in multiple colors.
Glow-in-the-Dark PermaStripe is offered in 3” and 4” rolls, providing added visibility for emergency exits, walkways, and OSHA-compliant safety zones.
The maximum width PermaStripe can be supplied in is 49.6” (1260mm).
DIE-CUT
We have a wide selection of PermaStripe die-cut shapes in many sizes, available for immediate shipping. These shapes make it easy to create a custom floor marking system that supports 5S optimization. Our in-house production machinery ensures consistent stock levels and fast turnaround.
Before the PermaStripe system, creating custom floor tape layouts often meant squared-off joins or cutting angles by hand-a process that was time-consuming and sometimes unsafe. Now, with PermaStripe die-cuts in stock in a variety of shapes and colors, you can build a professional floor marking system in the shortest time possible.
REMOVING PERMASTRIPE
Despite its strength and thickness, PermaStripe can be removed without snapping. This allows for fast and easy 5S changes in the workplace, unlike resin or painted lines which are permanent.
PERMASTRIPE 3 YEAR WARRANTY
Heskins provides a conditional 3-year warranty on PermaStripe floor marking tape from the date of purchase. Warranty claims are limited to product replacement and do not cover damage from pallets, skids, or other items being dragged across the tape.
If you’d like to request samples, please complete the PermaStripe sample request form.
To learn more or to place an order, you can contact our sales team by phone or live chat. Alternatively, complete the enquiry form above and we’ll respond as soon as possible.
VIDEOS
Selling Points Here
Cutting etc.
Cutting etc.
Cutting etc.
PermaStripe Shape Markers
Please click on the images to view the Dimensions.
Shapes (Click images to view dimensions)
L
TL213 – 8″ x 8″

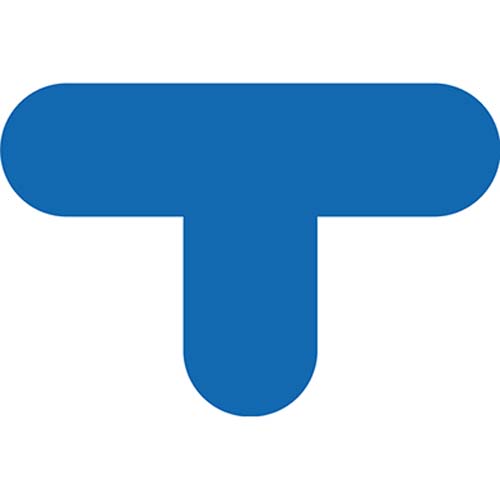

T
TL214- 12″ x 8″

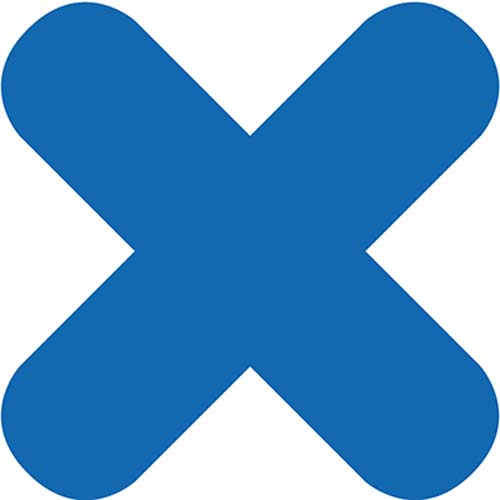

X
TL212- 11″ x 11″
Dot – 2IN Ø
TL303- 2″
Dot – 3.5IN Ø
TL210- 3.5″
Dot – 4″ Ø
TL131- 4″

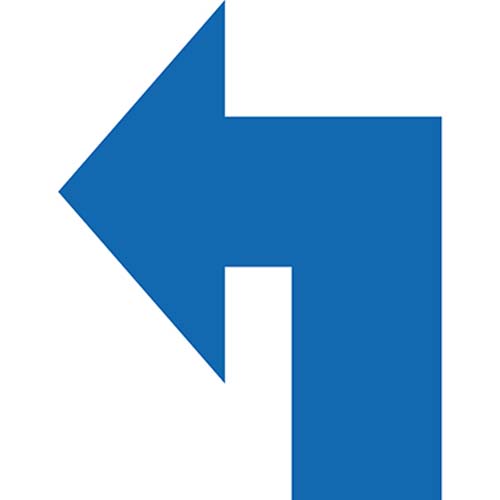

Arrow (Left or Right)
TL149 – 11.8″ x 9″
Arrow
TL1138 – 8″ x 4″
Small Arrow
TL141 – 4″ x 2.5″

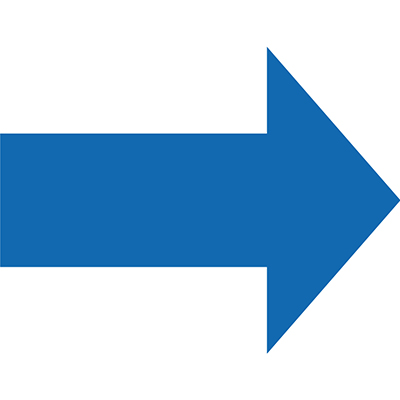

Large Arrow
TL211 – 11″ x 9″

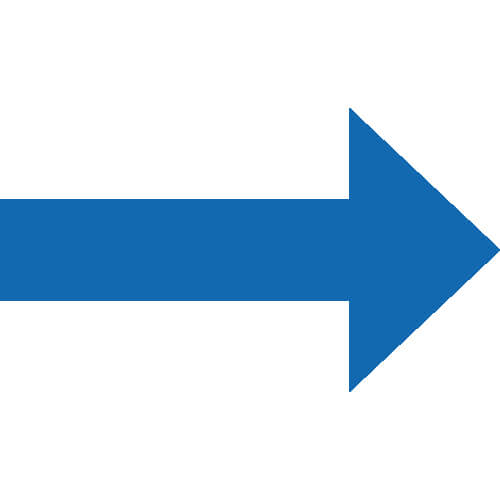

Extra Large Arrow
TL970– 39.4″ x 22.2″
Short Arrow
TL209- 3.5″ x 3″

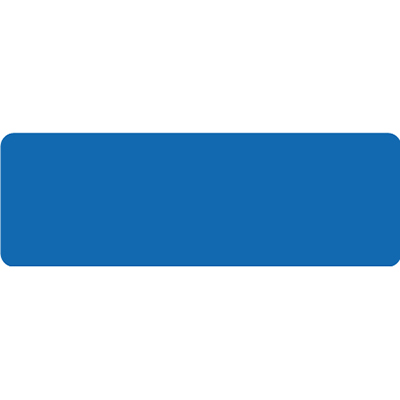

Line Block
TL1134 – 6″ x 2″
L-Shape
TL1132 – 4″ x 4″

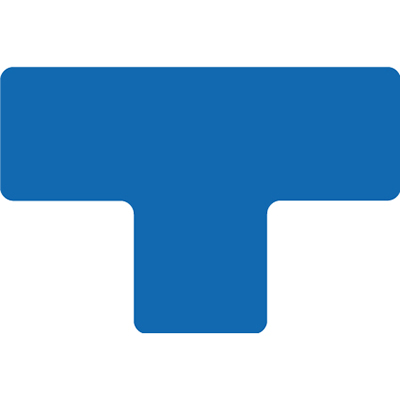

T-Shape
TL1133 – 6″ x 4″

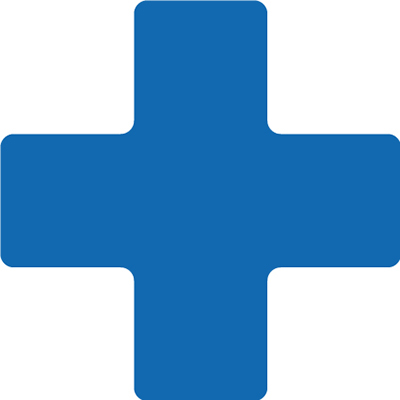

X-Shape
TL1131 – 6″ x 6″

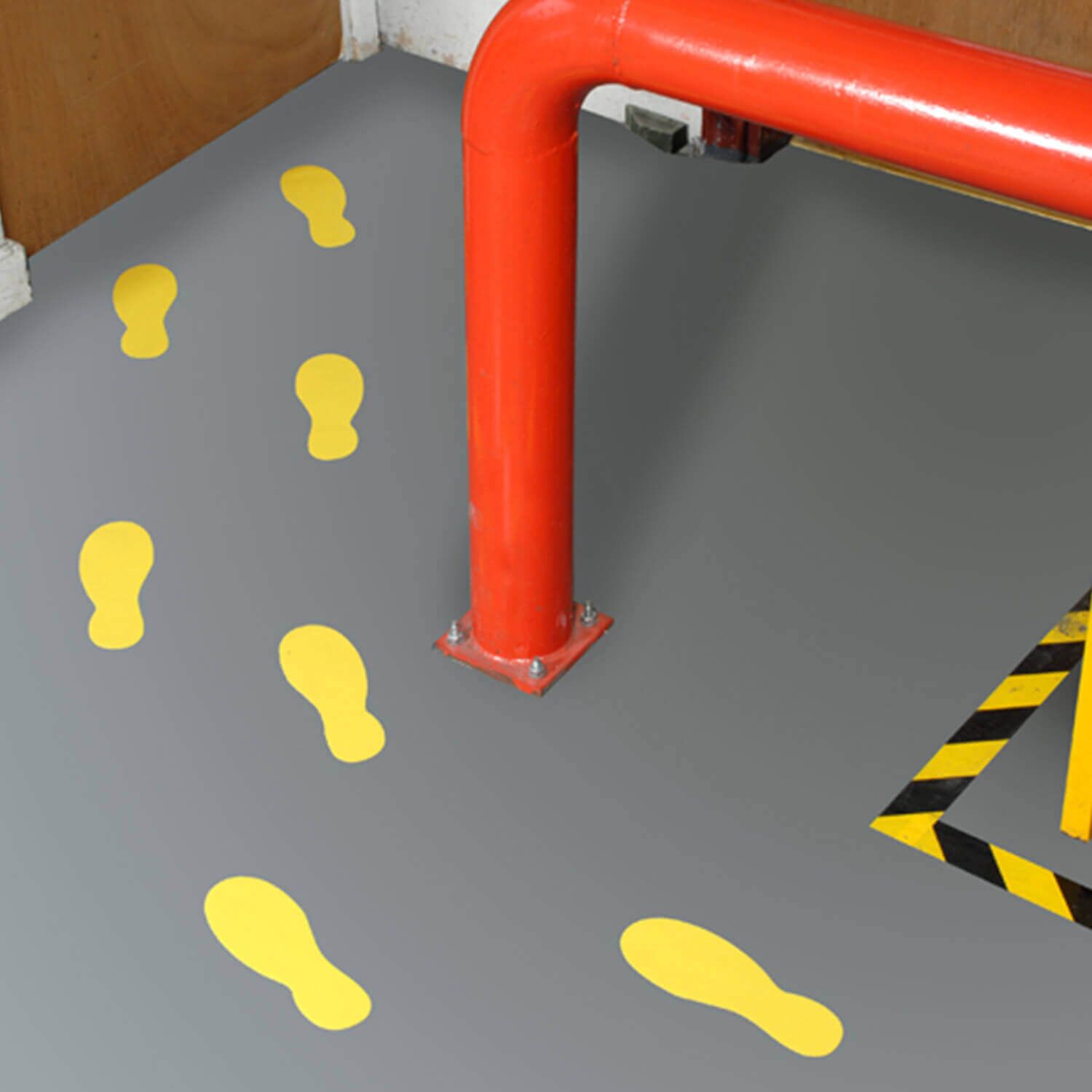

Feet (Click images to view dimensions)

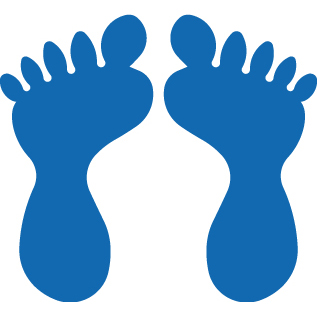

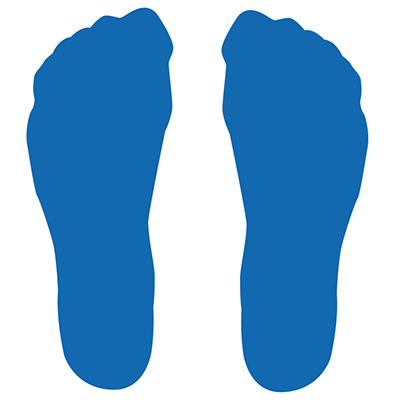

Feet
TL150- 4.15″ x 11″
Feet
TL151- 2.5″ x 4″
Feet
TL152- 4.7″ x 8.2″

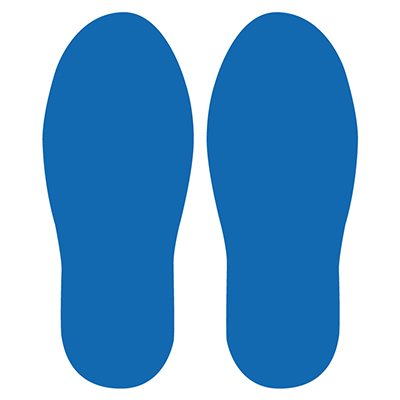

Shoes
TL242- 9.4″x 3.2″
Boots
TL153- 4.7″x 11.8″
Joins (Click images to view dimensions)
90° Corner
TL211- 3.5″x 3.5″
90° Corner
TL63- 5″ x 5″
90° Corner
TL66- 7″ x 7″

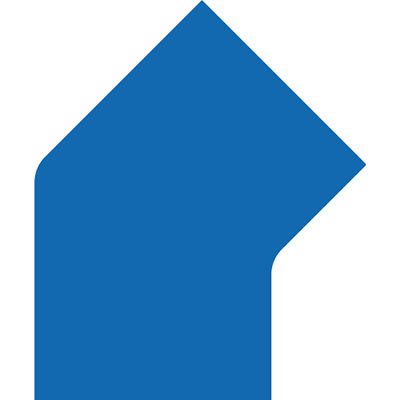

45° Corner
TL300- 3.3″ x 2.7″
45° Corner
TL301- 5″ x 4.5″
45° Corner
TL302- 6.7″ x 5.5″

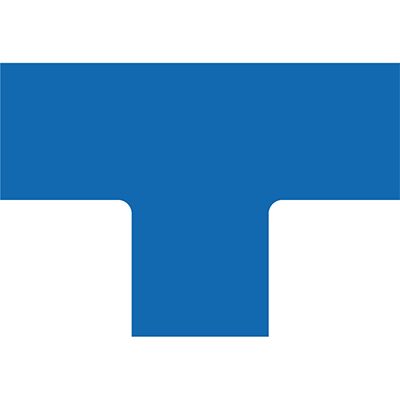

T-Junction
TL291- 5.75″ x 3.93″
T-Junction
TL292- 8.6″ x 5.9″
T-Junction
TL293-11.4″ x 7.87″

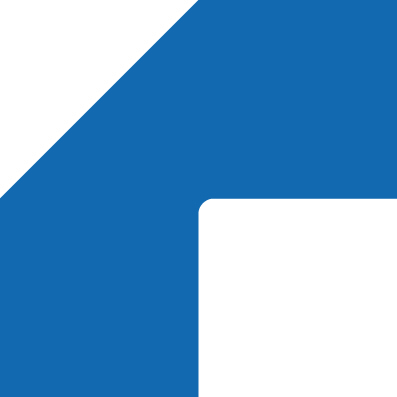

Bridge
TL297- 5.5″ x 2.75″
Bridge
TL298- 8.2″ x 4.13″
Bridge
TL299- 11″ x 5.5″

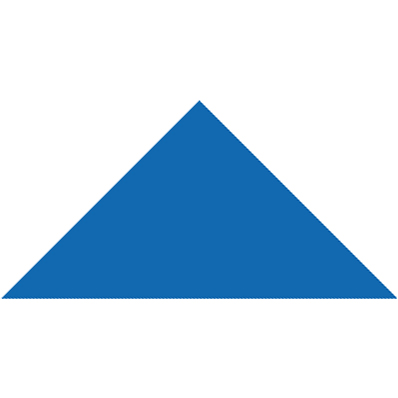

End Cap
TL294- 2.75″ x 1.37″
End Cap
TL295- 4.13″ x 2″
End Cap
TL296- 5.5″ x 2.75″
Numbers (Click images to view dimensions)

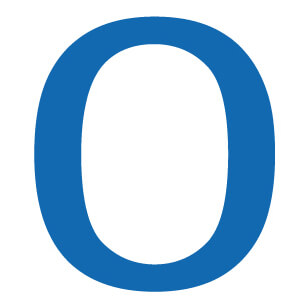

0
TL240- 3.75″ TL247- 7″

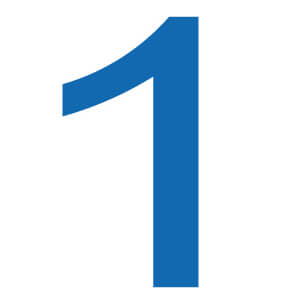

1
TL240 – 3.75″ TL247 – 7″

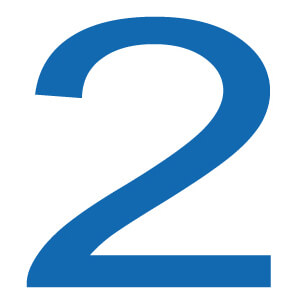

2
TL240 – 3.75″ TL247 – 7″

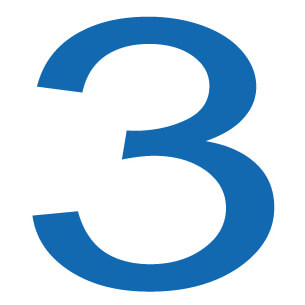

3
TL240 – 3.75″ TL247 – 7″
4
TL240 – 3.75″ TL247 – 7″

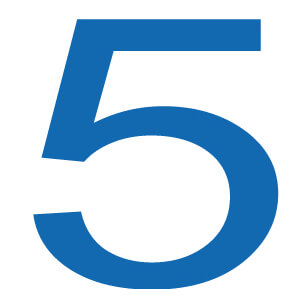

5
TL241 – 3.75″ TL247 – 7″

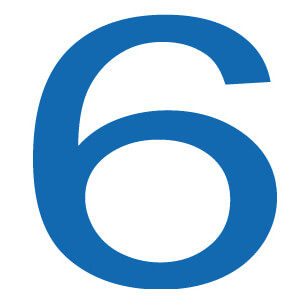

6
TL241 – 3.75″ TL247 – 7″

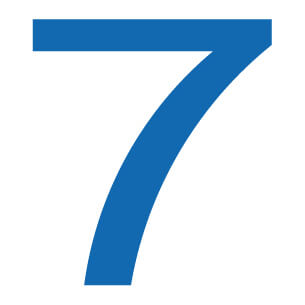

7
TL241 – 3.75″ TL247 – 7″

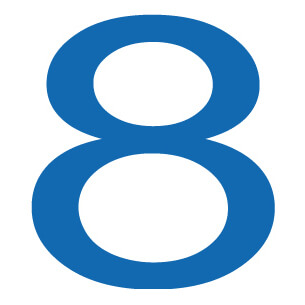

8
TL241 – 3.75″ TL247 – 7″

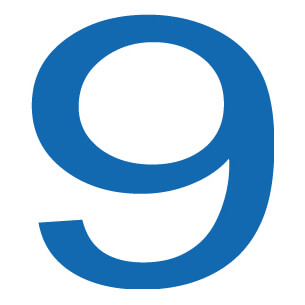

9
TL241 – 3.75″ TL247 – 7″
Letters (Click images to view dimensions)

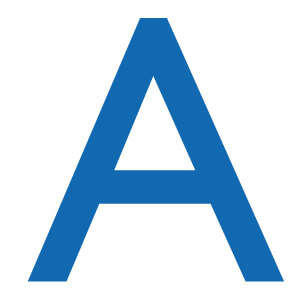

A
TL236 – 3.75″ TL242 – 7″

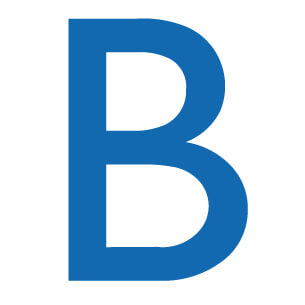

B
TL236 – 3.75″ TL242 – 7″
C
TL236 – 3.75″ TL242 – 7″

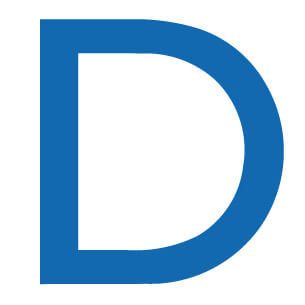

D
TL236 – 3.75″ TL242 – 7″

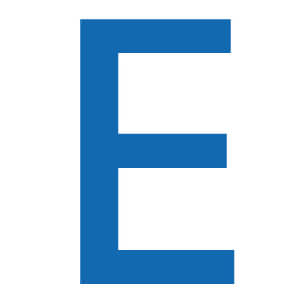

E
TL236 – 3.75″ TL242 – 7″

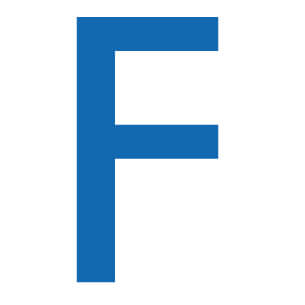

F
TL236 – 3.75″ TL243 – 7″

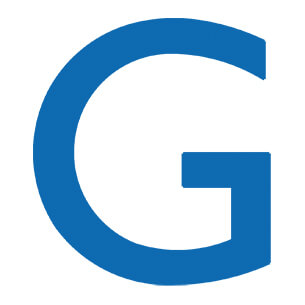

G
TL237 – 3.75″ TL243 – 7″

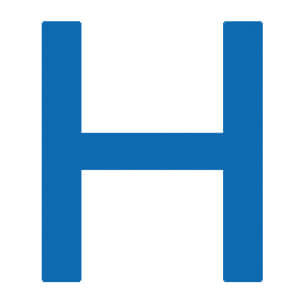

H
TL237 – 3.75″ TL243 – 7″
I
TL237 – 3.75″ TL243 – 7″

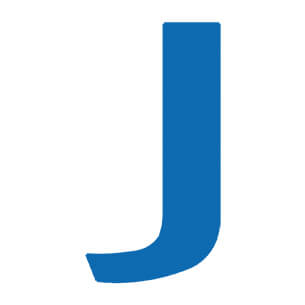

J
TL237 – 3.75″ TL243 – 7″

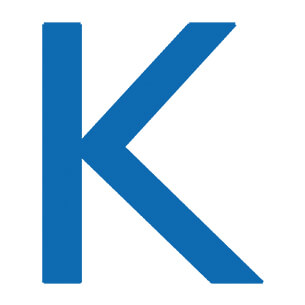

K
TL237 – 3.75″ TL243 – 7″

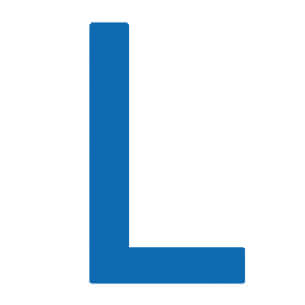

L
TL237 – 3.75″ TL243 – 7″

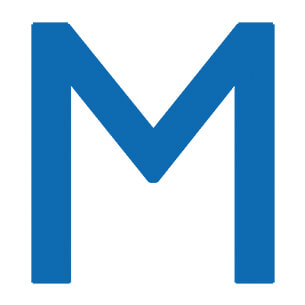

M
TL237 – 3.75″ TL244 – 7″

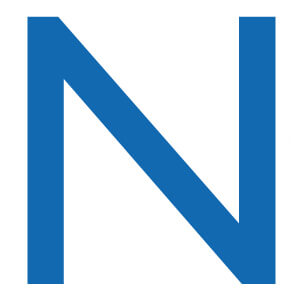

N
TL238 – 3.75″ TL244 – 7″
O
TL238 – 3.75″ TL244 – 7″

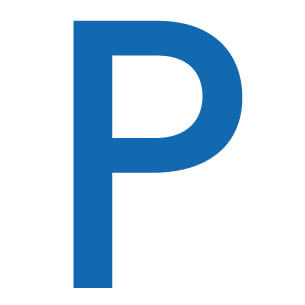

P
TL238 – 3.75″ TL244 – 7″

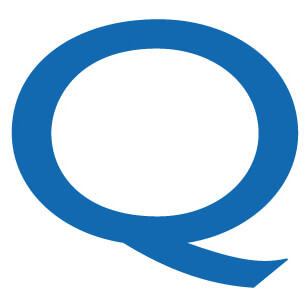

Q
TL238 – 3.75″ TL244 – 7″

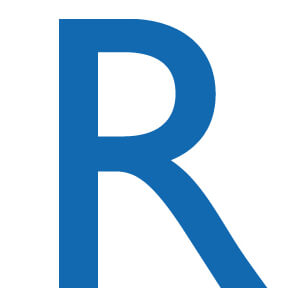

R
TL238 – 3.75″ TL244 – 7″

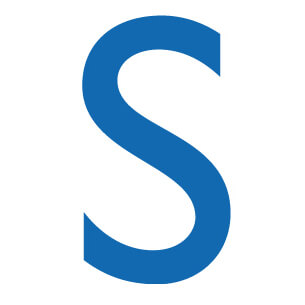

S
TL238 – 3.75″ TL244 – 7″

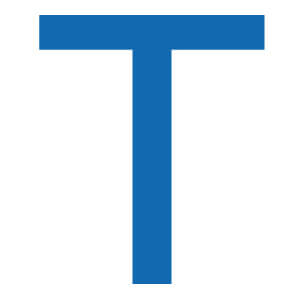

T
TL238 – 3.75″ TL245 – 7″
U
TL239 – 3.75″ TL245 – 7″

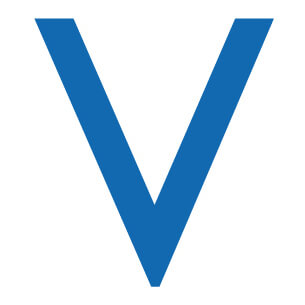

V
TL239 – 3.75″ TL245 – 7″

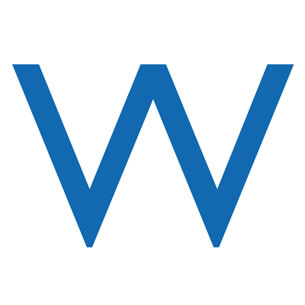

W
TL239 – 3.75″ TL245 – 7″

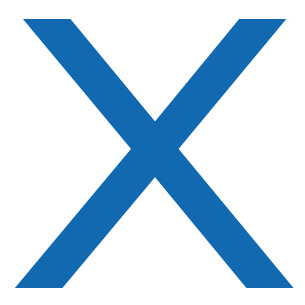

X
TL239 – 3.75″ TL245 – 7″

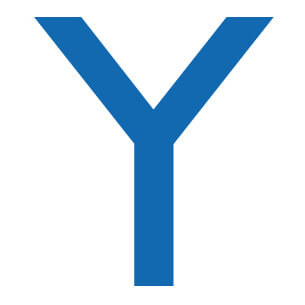

Y
TL239 – 3.75″ TL245 – 7″

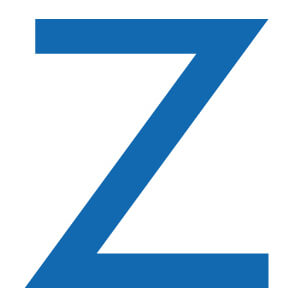

Z
TL239 – 3.75″ TL245 – 7″
Colors

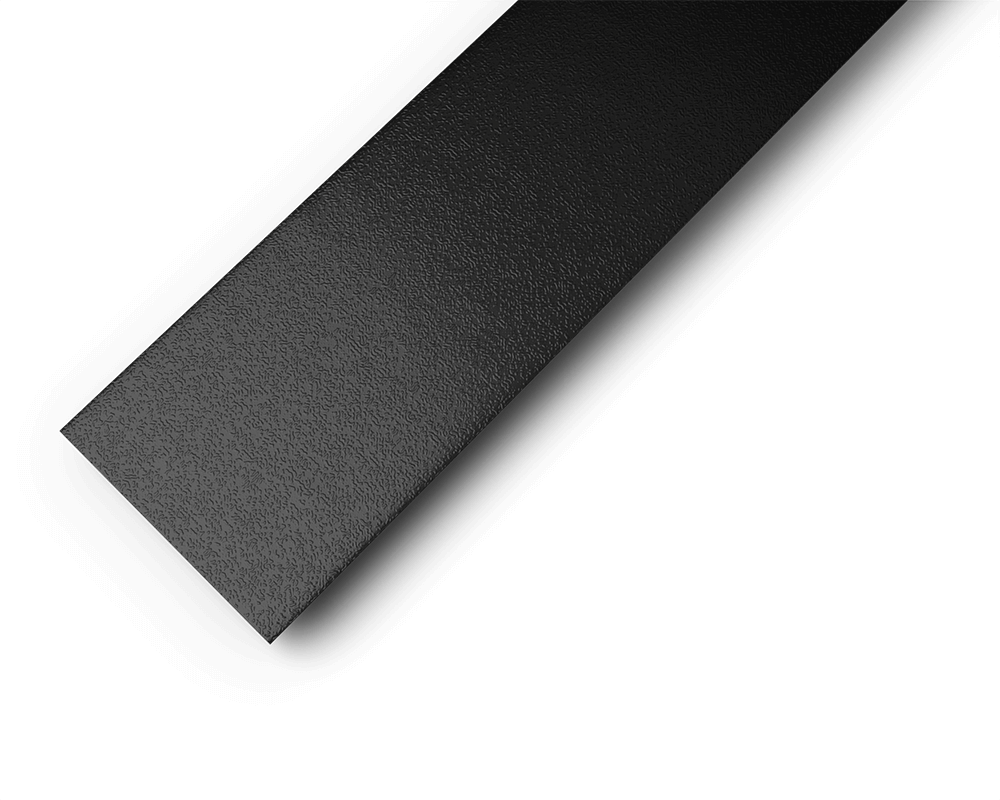

PERMN
Pantone / RAL
Black 6 / 9004
Black
PERMR
Pantone / RAL
199U / 3018
Red
PERMO
Pantone / RAL
021U / 2009

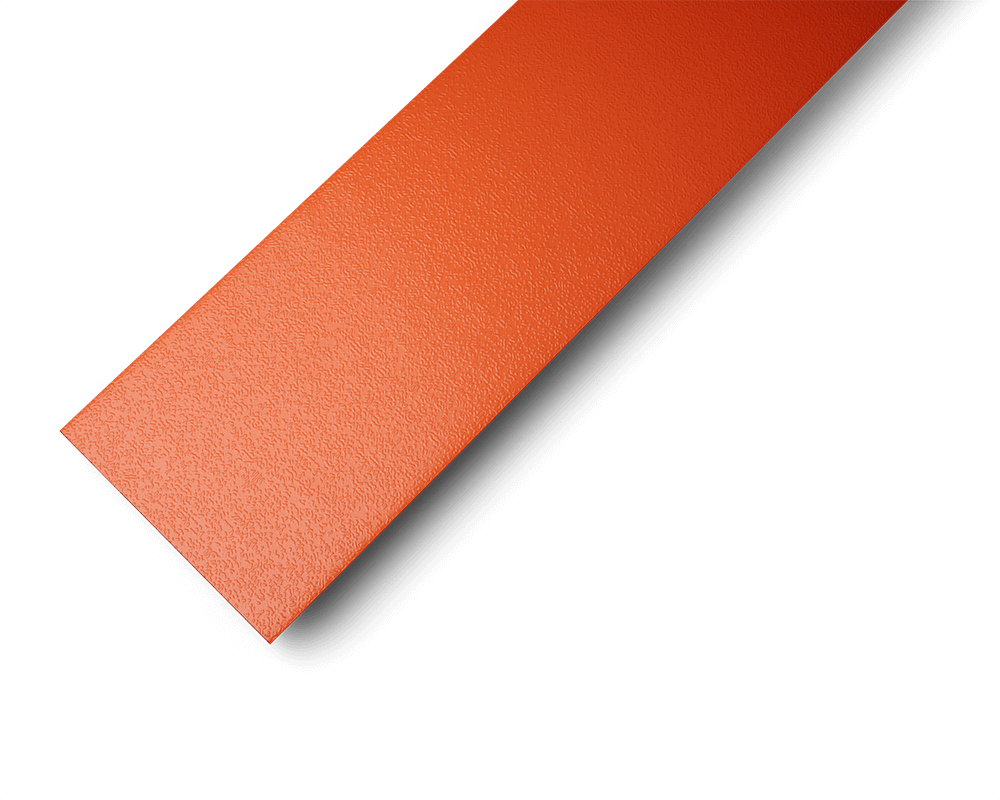

Orange
PERMY
Pantone / RAL
108U / 1018
Yellow
PERMF
Pantone / RAL
803U / 1016

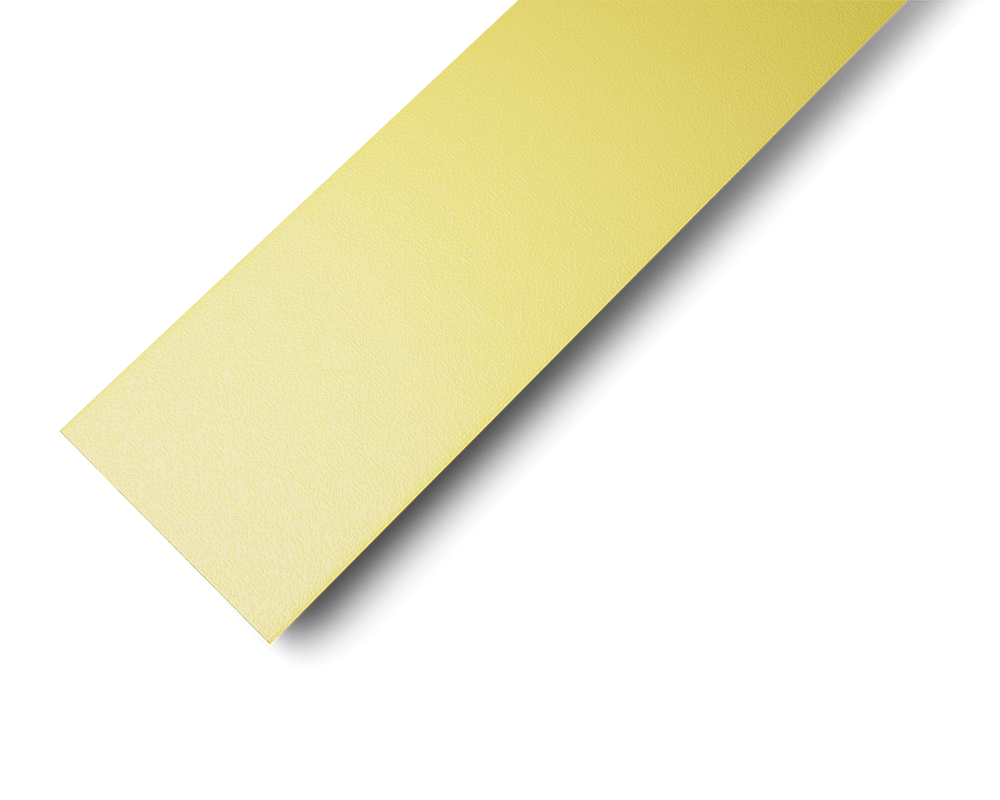

Fluorescent Yellow
PERMNY
Pantone / RAL
137U / 1003
Special Yellow
PERMV
Pantone / RAL
Green U / 6018
Green
PERMNV
Pantone / RAL
3288U / 6032
Special Green
PERMB
Pantone / RAL
299U / 5012

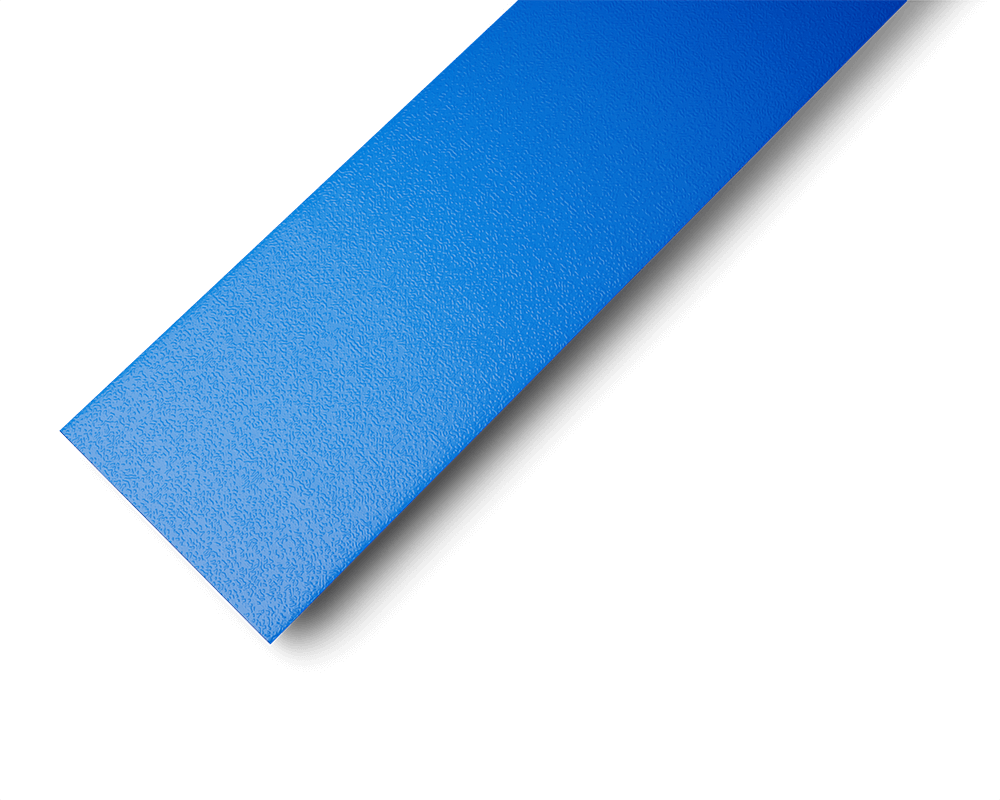

Blue
PERMBCB
Pantone / RAL
282U / 5013
Dark Blue
PERMNB
Pantone / RAL
5255U / 5005

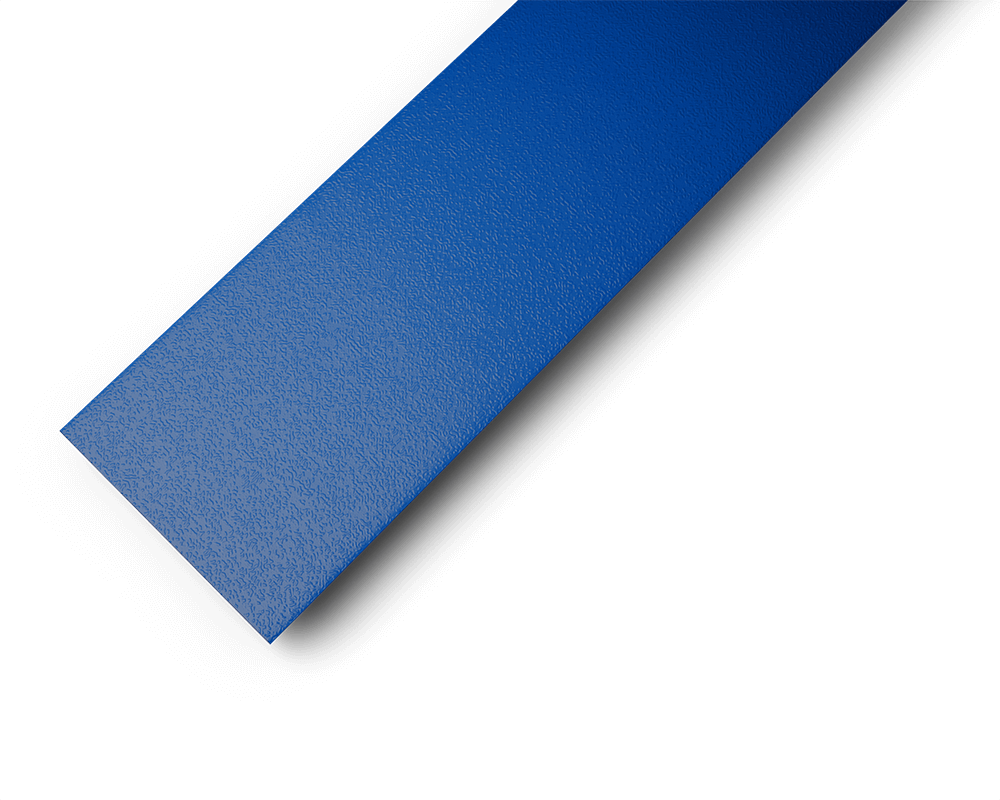

Special Blue
PERMW
Pantone / RAL
7541 / 9003
White
PERMA
Pantone / RAL
485 & 7541 / 3001 & 9003

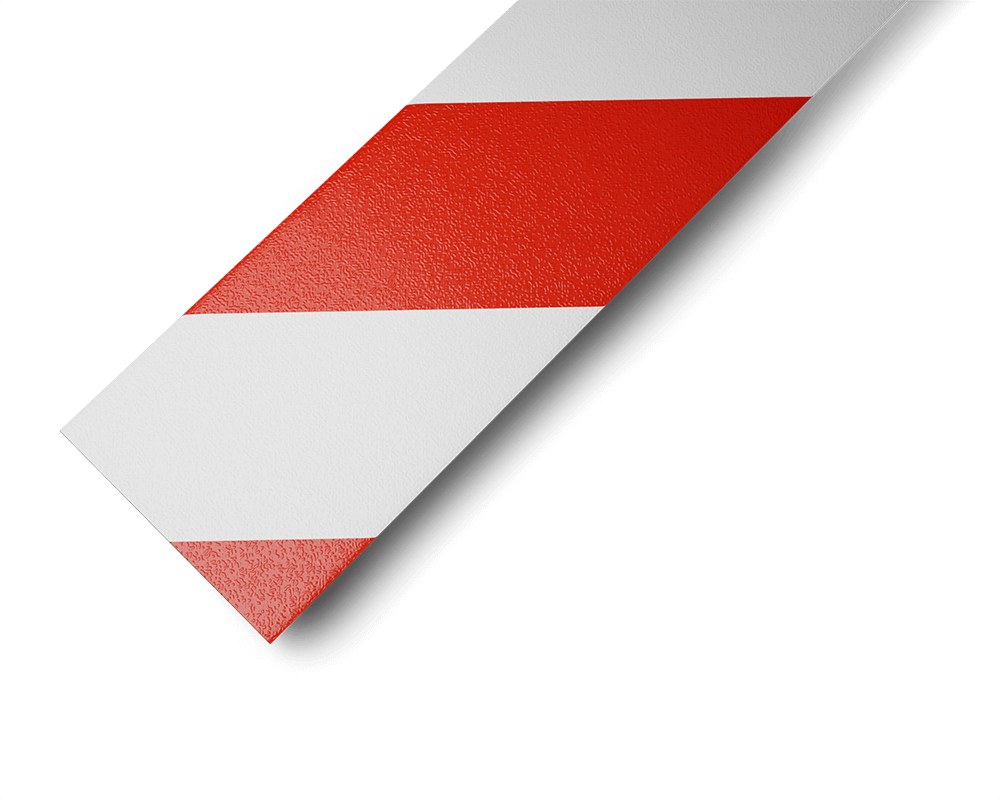

Red/White
PERME
Pantone / RAL
Black 6 & 7541 / 9004 & 9003

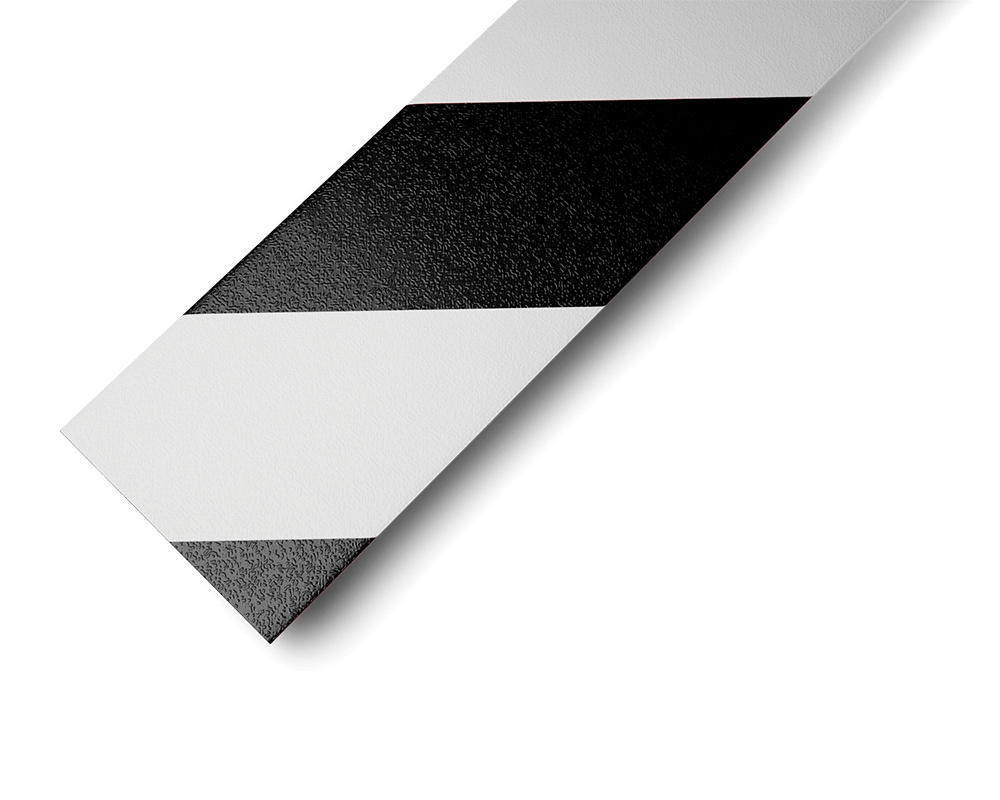

Black/White

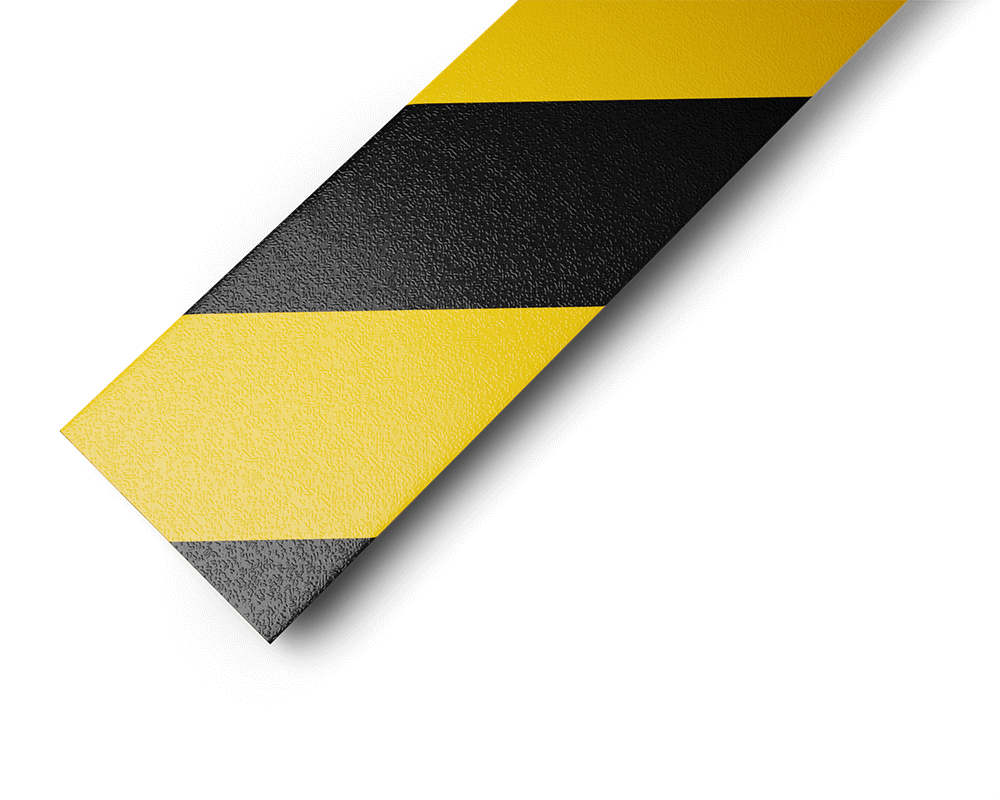

PERMD
Pantone / RAL
Black 6 & 1235 / 9004 & 1021
Black/Yellow
Downloads
Photo and Media Download Library
Create a free Heskins Download Suite account to access all downloadable content available for products featured on the PermaStripe website. This link takes you to the PermaStripe section of the content library.
TECH SPECS
| HEADING 1 | HEADING 2 | HEADING 3 | HEADING 4 |
|---|---|---|---|
| ROW 1 COLUMN 1 | ROW 1 COLUMN 2 | ROW 1 COLUMN 3 | ROW 1 COLUMN 4 |
PermaStripe Videos
Top 5 Installation Mistakes (and How to Avoid Them)
Tape Ancillaries to Help Apply Marking Tapes
PermaStripe vs PermaStripe Smooth
PermaStripe vs PermaRoute vs PermaLean
How to Apply Marking Tapes Correctly
How to Repair Marking Tape
Durability Test: PermaStripe vs Heavy Forklift Traffic
Before and After 5S Optimization
How to Fix Anti-Slip Tape and Perma Family Tape
Internal PermaStripe Application
How to Repair PermaStripe Floor Marking Tape
PermaStripe Pallet Markers and Floor Signage
Application of PermaStripe Safety Floor Marker
Semi-Ridged Pallet Markers
External PermaStripe Application
PermaStripe Letters
Why Choose PermaStripe?
5S Optimisation in The Workplace With PermaStripe

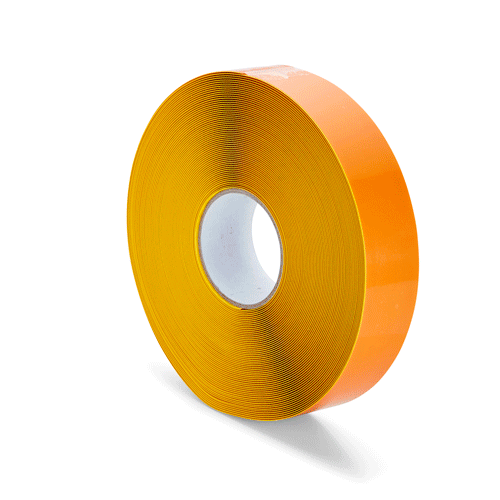

360 View
Application Graphics
PERM PermaStripe – FAQ
What is PermaStripe PERM floor marking tape?
PermaStripe PERM is a heavy-duty industrial floor marking tape designed for warehouses, factories, and other busy workplaces. Its durable PVC construction, embossed surface, and beveled edges make it suitable for creating aisles, pedestrian walkways, storage bays, work zones, and other safety floor markings.
Is PermaStripe suitable for warehouse and factory floors?

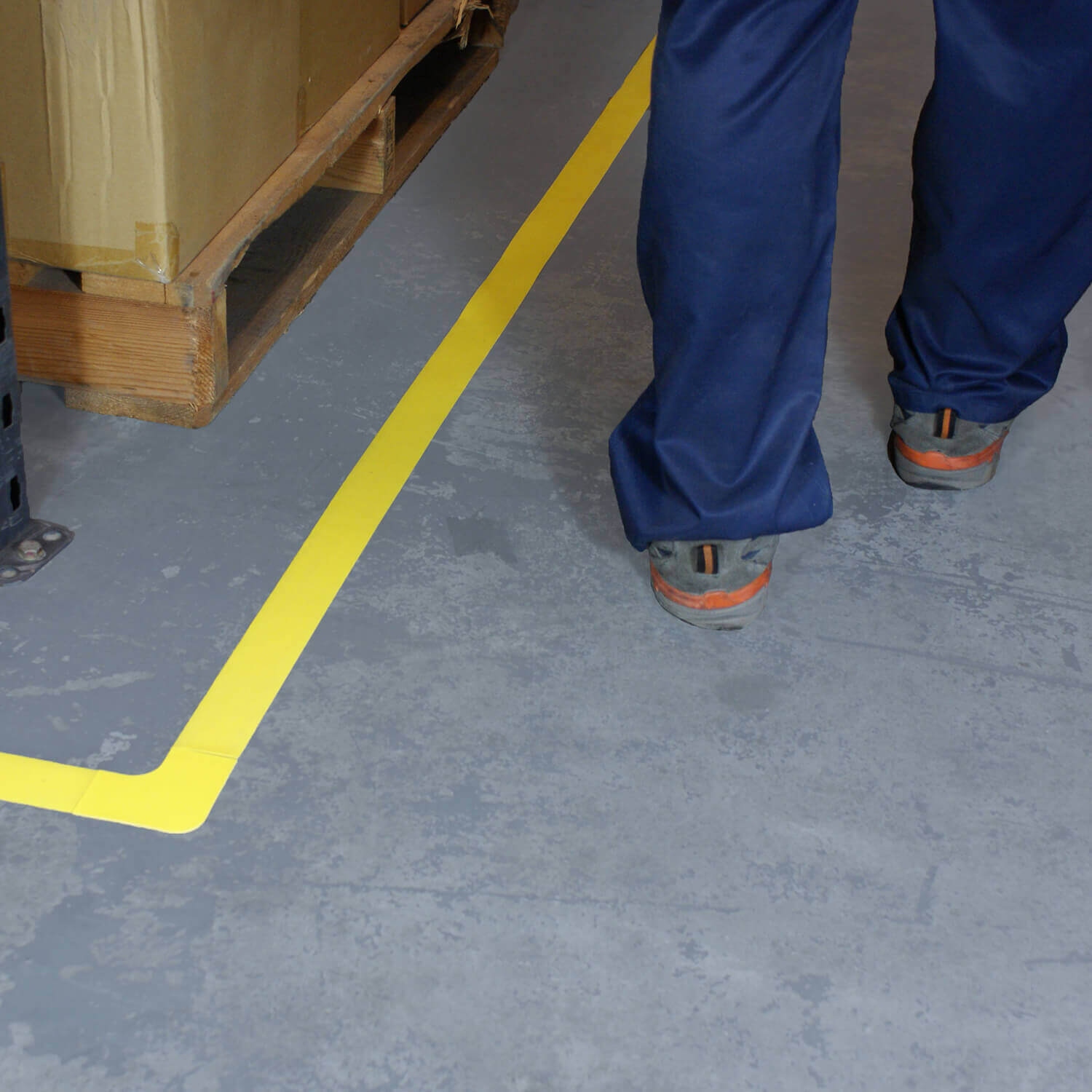

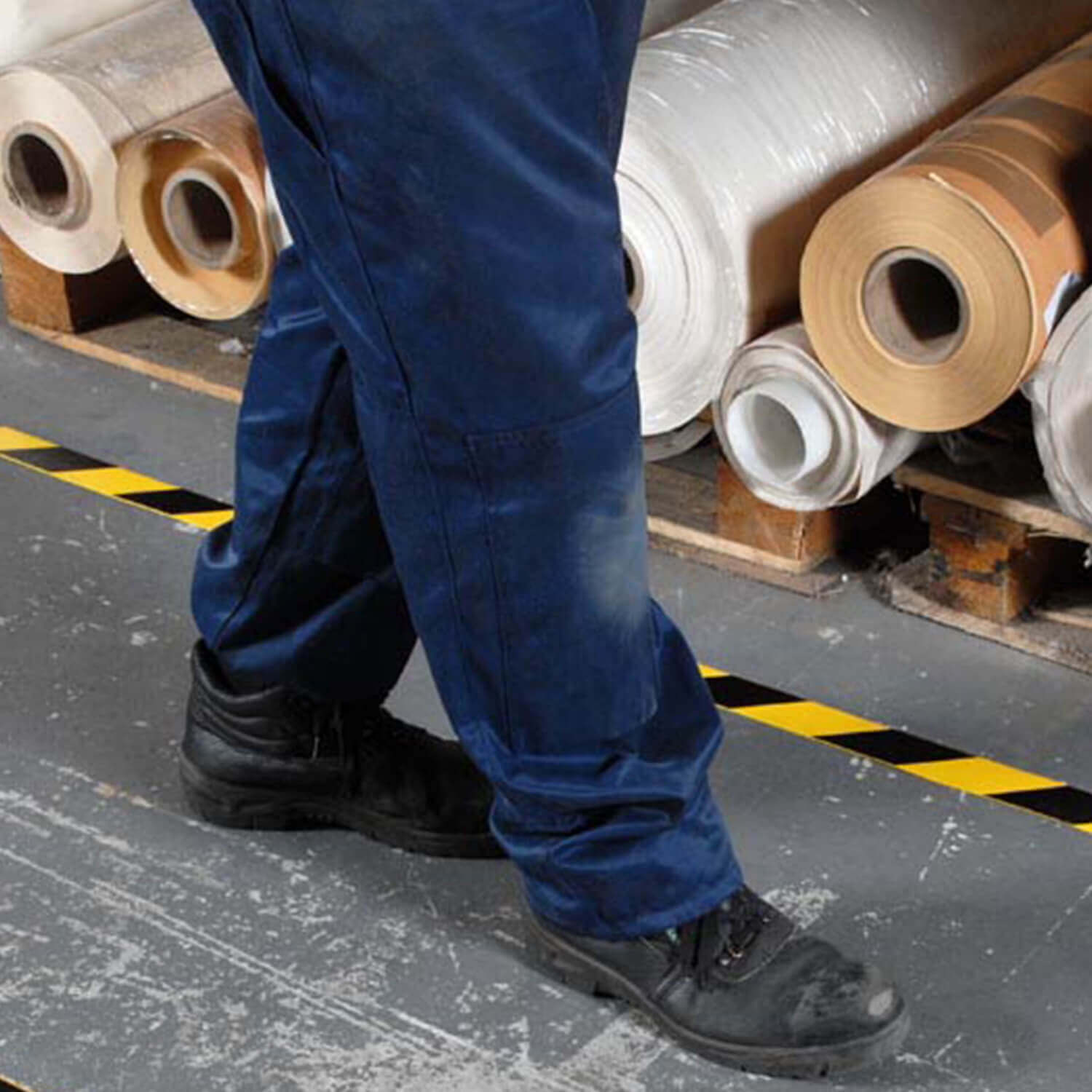

Yes. PermaStripe is designed for industrial warehouse and factory floor marking. It can be used to define pedestrian walkways, aisles, production zones, storage areas, and vehicle routes.
The tape is applied directly to a clean, dry floor and requires no curing or drying time, helping minimize disruption during installation.
Can PermaStripe withstand forklift traffic?
Yes. PermaStripe is designed for busy industrial floors exposed to heavy pedestrian and wheeled traffic, including forklift routes.
For the best service life, pallets, transit skids, and other heavy objects should not be dragged, pushed, or scraped across the tape, as this can damage the material and is excluded from the product warranty.
What makes PERM a heavy-duty floor marking tape?
PERM is manufactured from homogeneous PVC and is approximately 1,300 microns, or 1.3 mm, thick. Because the color runs throughout the material, surface scrapes do not immediately expose a differently colored backing layer.
Its embossed surface, strong permanent adhesive, and beveled edges provide a durable industrial floor marking solution for demanding environments.
Will PermaStripe stick to concrete floors?
PermaStripe can be applied to properly prepared concrete floors. The surface should be sound, clean, dry, and free from dust, oil, grease, and loose material to allow the adhesive to make effective contact.
Very rough, porous, or powdery concrete should be tested with a sample before completing a large floor marking installation.
How do you install PermaStripe floor tape?
Clean and dry the floor thoroughly before installation. Position the floor tape, peel back part of the release liner, and press the adhesive side firmly onto the surface. Continue removing the liner gradually while applying consistent pressure across the full width.
PermaStripe requires no curing or drying time, so the marked area can return to use immediately after installation.
Do I need a floor tape applicator?
No. PermaStripe can be installed manually, so a floor tape applicator is not essential.
For long warehouse aisles, factory floors, or large 5S floor marking projects, an applicator can make installation faster and help produce straighter, more consistent lines.
Is floor marking tape better than floor paint?
Floor marking tape can be a better option when fast installation, minimal downtime, and future layout changes are important. PermaStripe does not require the drying or curing time associated with many floor paints, allowing areas to return to use immediately.
It can also be removed when warehouse or production layouts change, making it a flexible alternative to permanent painted or resin floor markings.
What sizes and colors is PermaStripe PERM available in?
PermaStripe PERM is available in standard 50 mm, 75 mm, and 100 mm widths, with a roll length of 30 meters. Wider material can also be produced for specialized applications.
Colors include black, red, orange, yellow, fluorescent yellow, green, blue, and white, along with striped hazard options for industrial safety floor markings.
Can PermaStripe be used for 5S floor marking and color coding?
Yes. PermaStripe can support 5S floor marking and lean manufacturing by identifying pedestrian routes, vehicle lanes, storage positions, work cells, equipment zones, and operational areas.
Different floor tape colors can be assigned to specific functions as part of a documented visual management system. The chosen color coding should reflect the workplace risk assessment and be applied consistently throughout the facility.
Can PermaStripe be removed when a layout changes?
Yes. Although PermaStripe is designed as a durable industrial floor tape, it can be removed when warehouse, factory, or 5S layouts need to change.
Its substantial construction helps the tape remain intact during removal rather than repeatedly breaking, making it easier to update workplace markings when operational requirements change.
How long does PermaStripe floor marking tape last?
The service life of PermaStripe depends on floor preparation, traffic levels, cleaning methods, and how the marked area is used.
PermaStripe PERM is supplied with a conditional three-year warranty from the date of purchase. The warranty covers replacement of the product but excludes damage caused by pallets, transit skids, or other objects being dragged, pushed, or scraped across the tape.
