ROUT
- Layered construction
- Laminated, color surface print
- Low profile
- 0.038″ thick
- Roll widths up to 49″
- Free samples
- 2-year guarantee
5S Optimization
2 Year Warranty
Quality Line Marking
Approved Reseller
Enquiry
Enquiry
Samples
PermaRoute Overview
PermaRoute is the world’s only complete floor marking system. Developed and refined over the years, PermaRoute offers a versatile range that covers every aspect of floor marking for factories, warehouses, assembly areas, and logistics facilities.
PermaRoute is built with a layered construction: a durable PVC base, a tough, protective clear top laminate, and a strong permanent adhesive on the underside. This combination makes it resistant to all but the heaviest scuffs and scrapes. The protective laminate shields the PVC layer, whether supplied in a solid color or with printed designs.

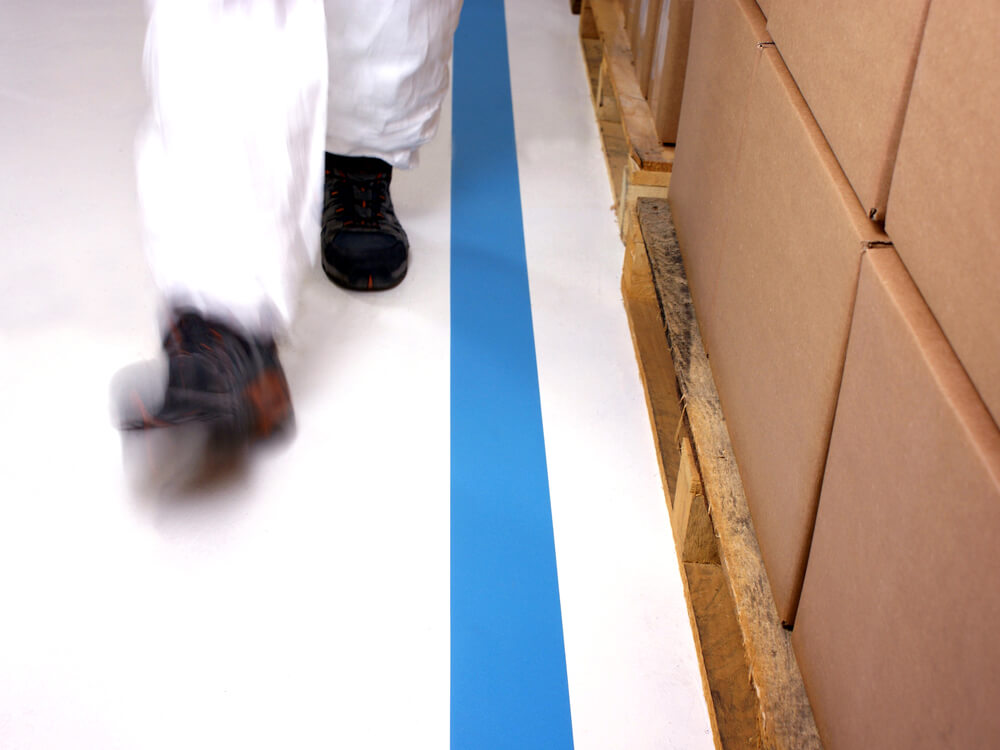

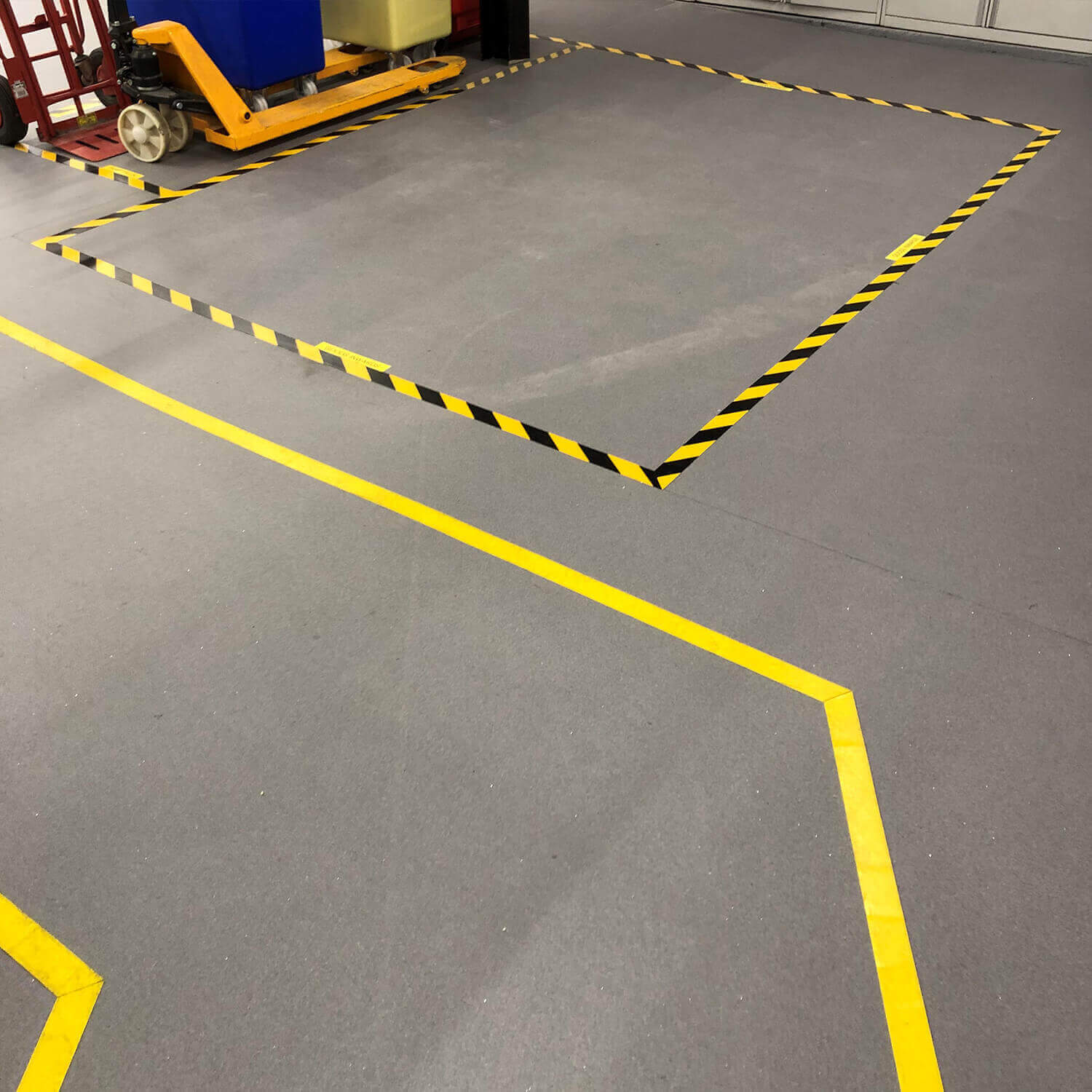

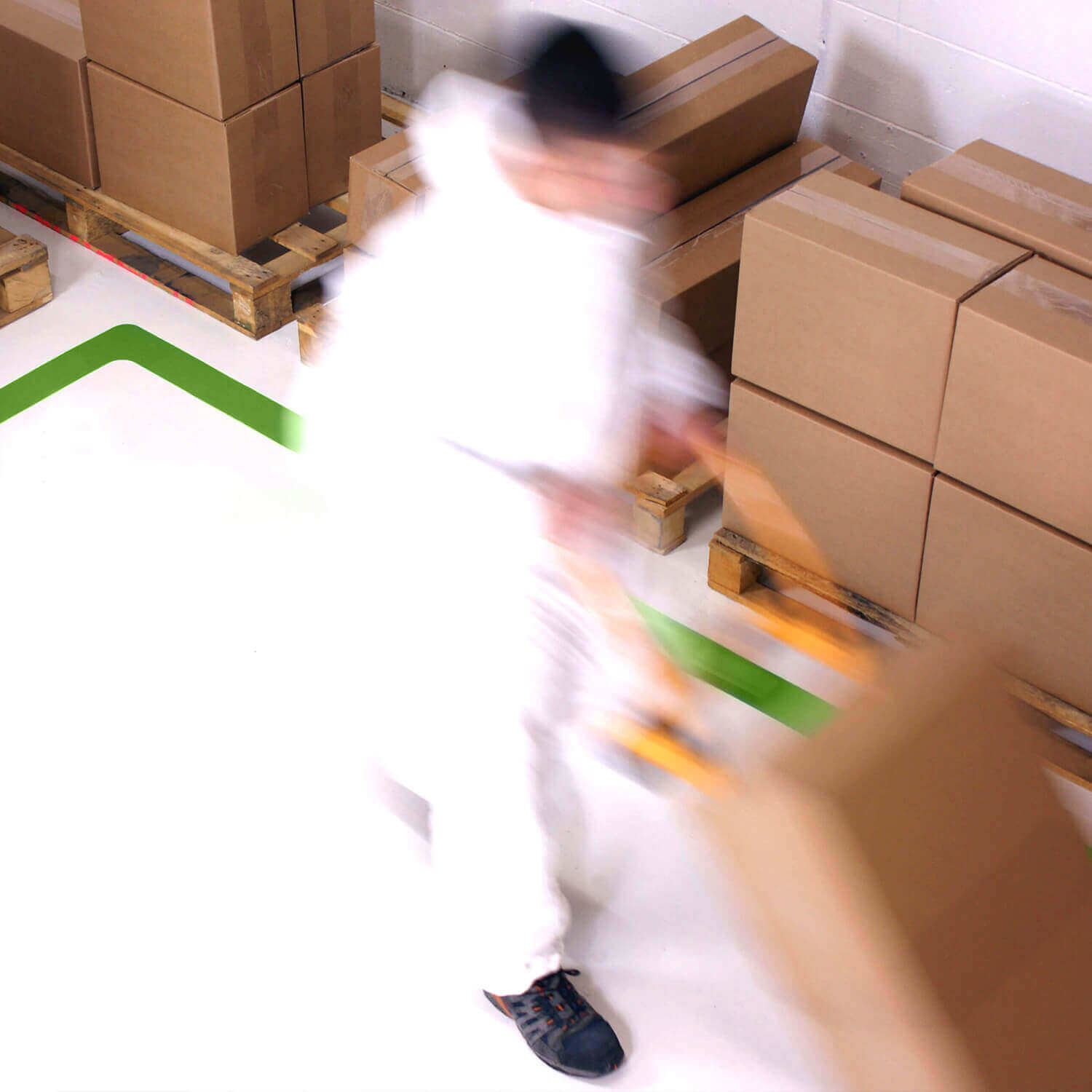

As a heavy-duty line marking tape, PermaRoute allows quick and simple installation of clean, sharp lines in the workplace. It helps define walkways and traffic routes for both pedestrians and vehicles, ensuring safe and efficient movement throughout work areas. Color-coded zones can also be created to designate storage locations and support 5S floor marking practices that improve workflow and organization.
APPLICATION
Installing PermaRoute is straightforward. The only preparation required is a clean, dry surface. Simply peel back the liner and stick down. Once applied, the area is immediately ready for use- minimizing downtime compared to painted or resin floor markings. For a complete and visually effective system, PermaRoute can be combined with matching die-cut floor marking shapes.
PERMAROUTE SIZES

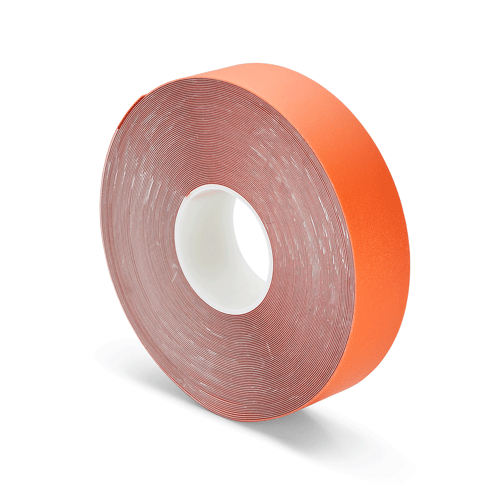

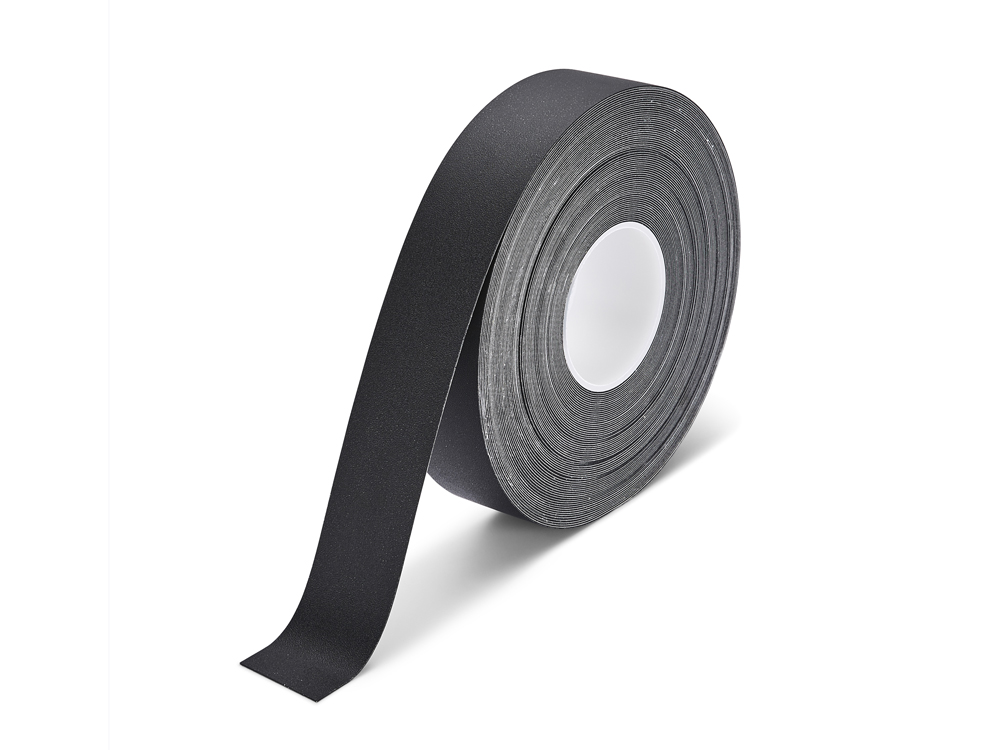

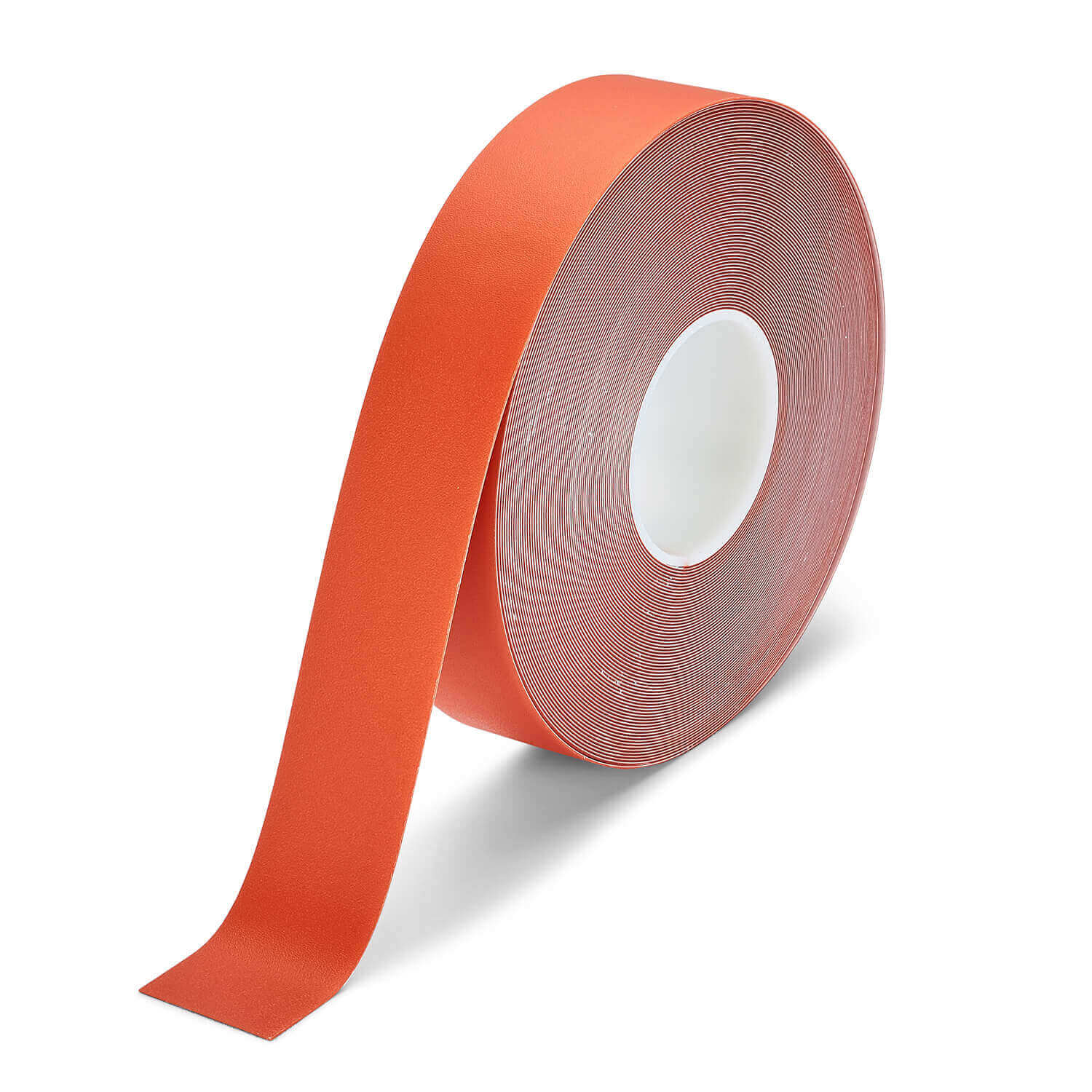

PermaRoute is available for immediate shipping in widths of 2” (50mm), 3” (75mm), and 4” (100mm), each supplied in 98ft (30m) rolls. A wide variety of die-cut shapes are also available, and additional color options can be viewed in the colors tab.
Custom options are available depending on order quantities.
DIE-CUTS
We offer a wide selection of die-cut shapes designed to complement the PermaRoute system. By combining die-cuts with PermaRoute lines, you can create a floor marking system tailored to your facility’s specific needs.
PERMAROUTE 2-YEAR WARRANTY
Heskins provides a conditional 2-year warranty on PermaRoute floor marking tape from the date of purchase. Warranty claims are limited to product replacement and do not cover damage caused by pallets, skids, or other items being dragged or pushed across the surface.
If you would like to request samples, please complete the PermaRoute sample request form.
For more information or to place an order, you can contact our sales team by phone or live chat. Alternatively, complete the enquiry form above and we’ll respond as soon as possible.
VIDEOS
Selling Points Here
Cutting etc.
Cutting etc.
Cutting etc.
PermaStripe Shape Markers
Please click on the images to view the Dimensions.
Shapes (Click images to view dimensions)
L
TL213 – 8″ x 8″

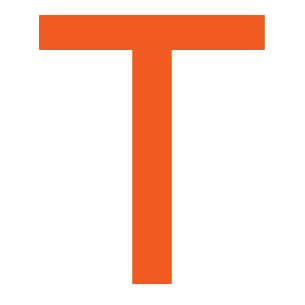

T
TL214- 12″ x 8″
X
TL212- 11″ x 11″
Dot – 2″ Ø
TL303- 2″
Dot – 3.5″ Ø
TL210- 3.5″
Dot – 4″ Ø
TL131- 4″
Arrow (Left or Right)
TL149 – 11.8″ x 9″
Arrow
TL1138 – 8″ x 4″
Small Arrow
TL141 – 4″ x 2.5″
Large Arrow
TL211 – 11″ x 9″
Extra Large Arrow
TL970– 39.4″ x 22.2″
Short Arrow
TL209- 3.5″ x 3″
Line Block
TL1134 – 6″ x 2″
L-Shape
TL1132 – 4″ x 4″
T-Shape
TL1133 – 6″ x 4″
X-Shape
TL1131 – 6″ x 6″
Walking Figure
TL77 – 13″ x 19.6″
Forklift
TL54 – 21″ x 19″
Feet (Click images to view dimensions)
Feet
TL150- 4.15″ x 11″
Feet
TL151- 2.5″ x 4″
Feet
TL152- 4.7″ x 8.2″
Shoes
TL242- 9.4″x 3.2″
Boots
TL153- 4.7″x 11.8″
Joins (Click images to view dimensions)

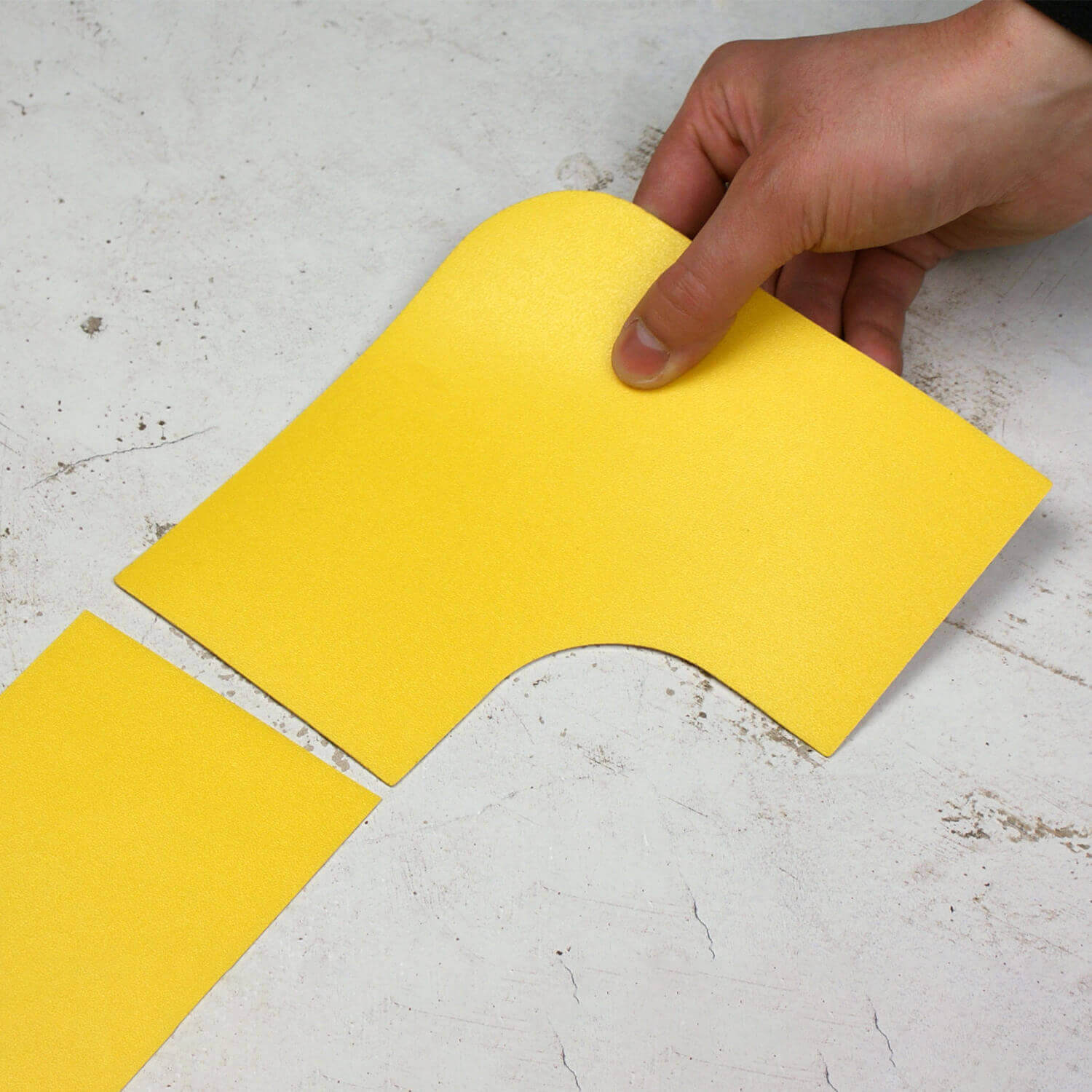

90° Corner
TL211- 3.5″x 3.5″
90° Corner
TL63- 5″ x 5″
90° Corner
TL66- 7″ x 7″
45° Corner
TL300- 3.3″ x 2.7″
45° Corner
TL301- 5″ x 4.5″
45° Corner
TL302- 6.7″ x 5.5″
T-Junction
TL291- 5.75″ x 3.93″
T-Junction
TL292- 8.6″ x 5.9″
T-Junction
TL293-11.4″ x 7.87″
Bridge
TL297- 5.5″ x 2.75″
Bridge
TL298- 8.2″ x 4.13″
Bridge
TL299- 11″ x 5.5″
End Cap
TL294- 2.75″ x 1.37″
End Cap
TL295- 4.13″ x 2″
End Cap
TL296- 5.5″ x 2.75″
Numbers (Click images to view dimensions)
0
TL240- 3.75″ TL247- 7″
1
TL240 – 3.75″ TL247 – 7″
2
TL240 – 3.75″ TL247 – 7″
3
TL240 – 3.75″ TL247 – 7″
4
TL240 – 3.75″ TL247 – 7″
5
TL241 – 3.75″ TL247 – 7″
6
TL241 – 3.75″ TL247 – 7″
7
TL241 – 3.75″ TL247 – 7″
8
TL241 – 3.75″ TL247 – 7″
9
TL241 – 3.75″ TL247 – 7″
Letters (Click images to view dimensions)
A
TL236 – 3.75″ TL242 – 7″
B
TL236 – 3.75″ TL242 – 7″
C
TL236 – 3.75″ TL242 – 7″
D
TL236 – 3.75″ TL242 – 7″
E
TL236 – 3.75″ TL242 – 7″
F
TL236 – 3.75″ TL243 – 7″
G
TL237 – 3.75″ TL243 – 7″
H
TL237 – 3.75″ TL243 – 7″
I
TL237 – 3.75″ TL243 – 7″
J
TL237 – 3.75″ TL243 – 7″
K
TL237 – 3.75″ TL243 – 7″
L
TL237 – 3.75″ TL243 – 7″
M
TL237 – 3.75″ TL244 – 7″
N
TL238 – 3.75″ TL244 – 7″
O
TL238 – 3.75″ TL244 – 7″
P
TL238 – 3.75″ TL244 – 7″
Q
TL238 – 3.75″ TL244 – 7″
R
TL238 – 3.75″ TL244 – 7″
S
TL238 – 3.75″ TL244 – 7″
T
TL238 – 3.75″ TL245 – 7″
U
TL239 – 3.75″ TL245 – 7″
V
TL239 – 3.75″ TL245 – 7″
W
TL239 – 3.75″ TL245 – 7″
X
TL239 – 3.75″ TL245 – 7″
Y
TL239 – 3.75″ TL245 – 7″
Z
TL239 – 3.75″ TL245 – 7″
Colors
ROUTN
Pantone / RAL
Black 6 U / 9004
Black
ROUTR
Pantone / RAL
1795 U / 3020
Red
ROUTO
Pantone / RAL
021 U / 2009
Orange
ROUTY
Pantone / RAL
114 U / 1018
Yellow
ROUTF
Pantone / RAL
803 U / 1016
Fluorescent Yellow
ROUTYNA
Pantone / RAL
137 U / 1003
Special Yellow
ROUTV
Pantone / RAL
7488 U / 6018
Green
ROUTB
Pantone / RAL
2985 U / 5012
Blue
ROUTJ
Pantone / RAL
2945 U / 5002
Dark Blue
ROUTW
Pantone / RAL
7541 U / 9003
White
ROUTD
Pantone / RAL
Black: Black 6 / 9004
Yellow: 1235 U / 1021
Black/Yellow
ROUTA
Pantone / RAL
Red: 32 U / 3028
White: White / 9003
Red/White
ROUTH
Pantone / RAL
Green: 356 U / 6002
White: White / 9010
Black/White
ROUTE
Pantone / RAL
Black: Black 6 U / 9004
White: White / 9003
Black/White
ROUTP
Pantone / RAL
Black: Black 6 U / 9004
Orange: 021 U / 2009
Black/Orange
ROUT_X
Pantone / RAL
2274CP/ 6019
Glow in the Dark
Downloads
Photo and Media Download Library
Create a free Heskins Download Suite account to access all downloadable content available for products featured on the PermaStripe website. This link takes you to the PermaRoute section of the content library.
TECH SPECS
| HEADING 1 | HEADING 2 | HEADING 3 | HEADING 4 |
|---|---|---|---|
| ROW 1 COLUMN 1 | ROW 1 COLUMN 2 | ROW 1 COLUMN 3 | ROW 1 COLUMN 4 |
PermaRoute Videos
Top 5 Installation Mistakes (and How to Avoid Them)
Tape Ancillaries to Help Apply Marking Tapes
PermaStripe vs PermaRoute vs PermaLean
How to Apply Marking Tapes Correctly
How to Repair Marking Tape
Before and After 5S Optimization
How to Fix Anti Slip Tape and Perma Family Tape
Hoe to Apply PermaRoute Letters
Why Choose PermaRoute?
How to Apply PermaRoute Shapes
How To Apply PermaRoute L Shape Arrows
360 View
Application Graphics
ROUT PermaRoute – FAQ
What is PermaRoute ROUT?
PermaRoute ROUT is an industrial floor marking system for creating warehouse aisles, pedestrian routes, storage zones, and workplace floor signage. The range combines floor marking tape with arrows, footprints, letters, numbers, corners, junctions, and other markers to create a coordinated visual management system.
What makes PermaRoute different from standard floor marking tape?
PermaRoute is more than continuous line marking tape. Its range of colors, shapes, letters, numbers, and directional markers allows businesses to create complete routes, storage locations, work zones, and warehouse wayfinding systems using one coordinated product range.
Can PermaRoute be used for warehouse aisles and traffic routes?

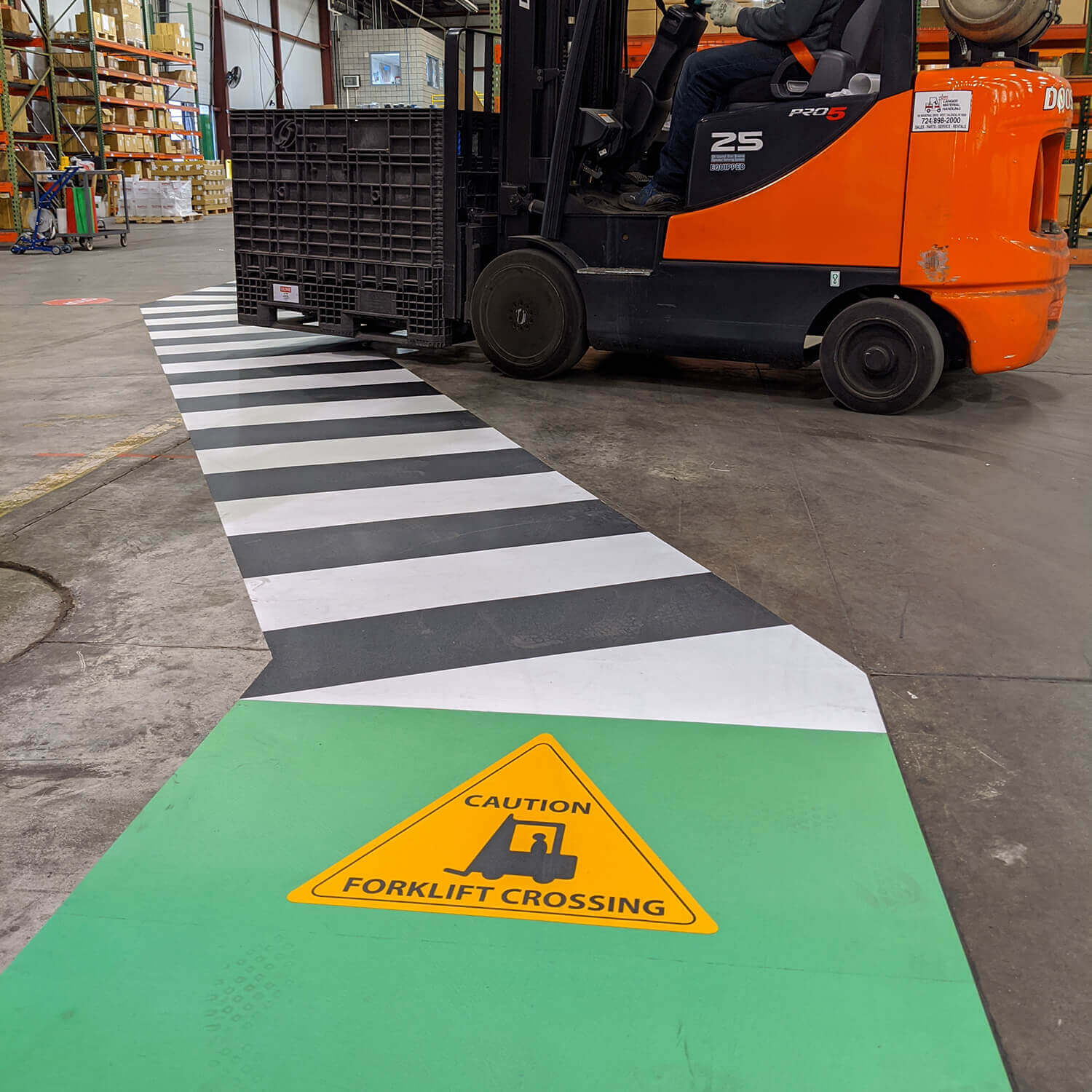

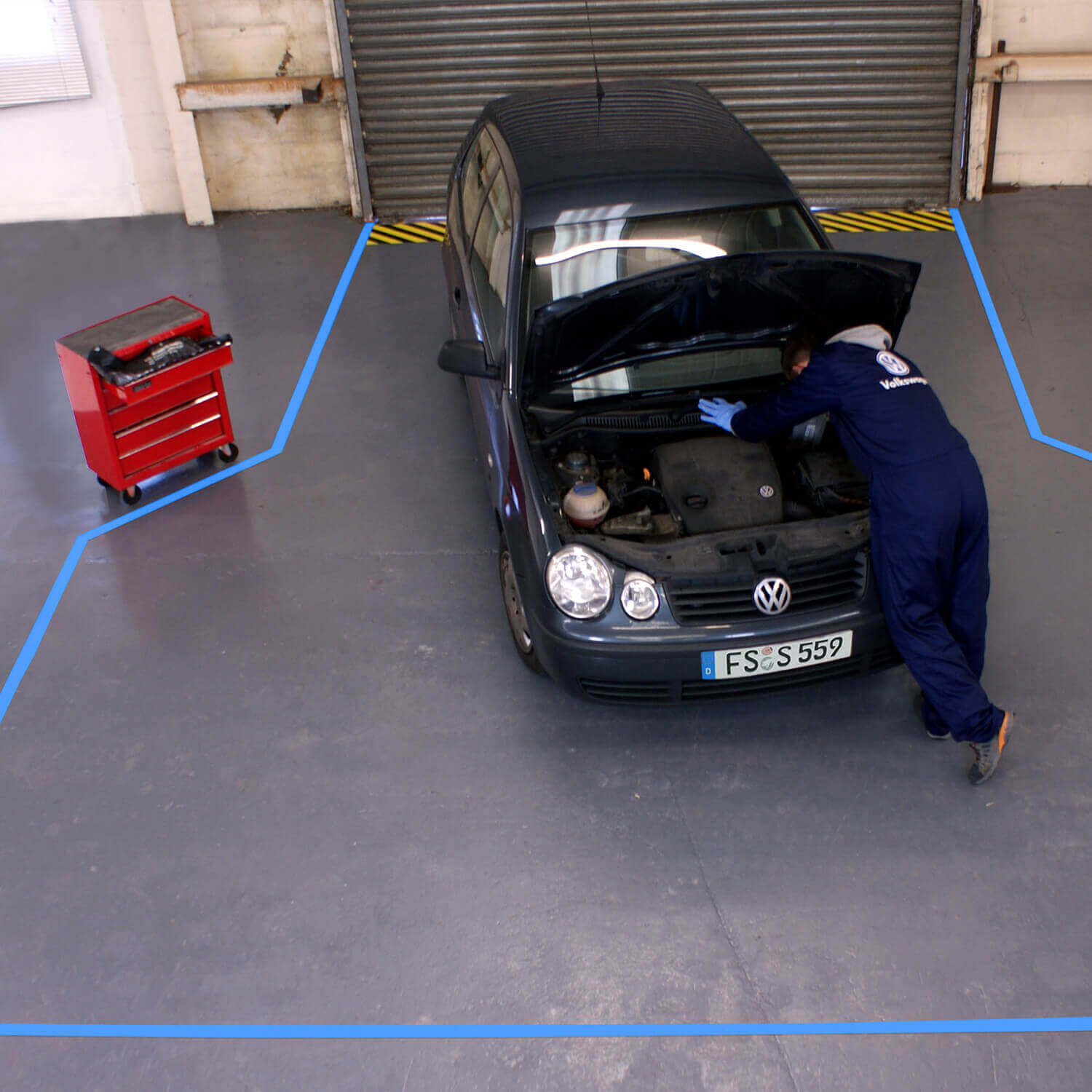

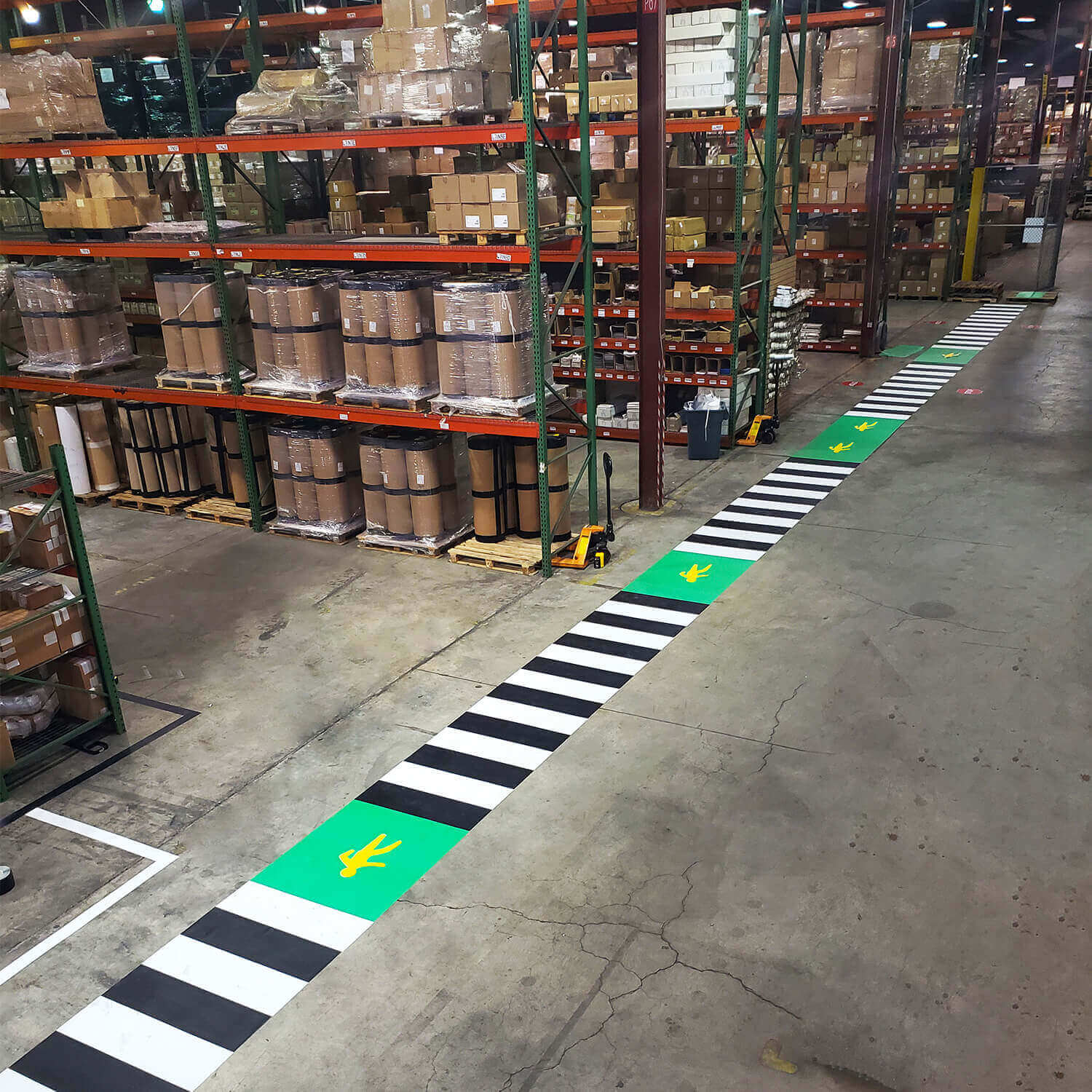

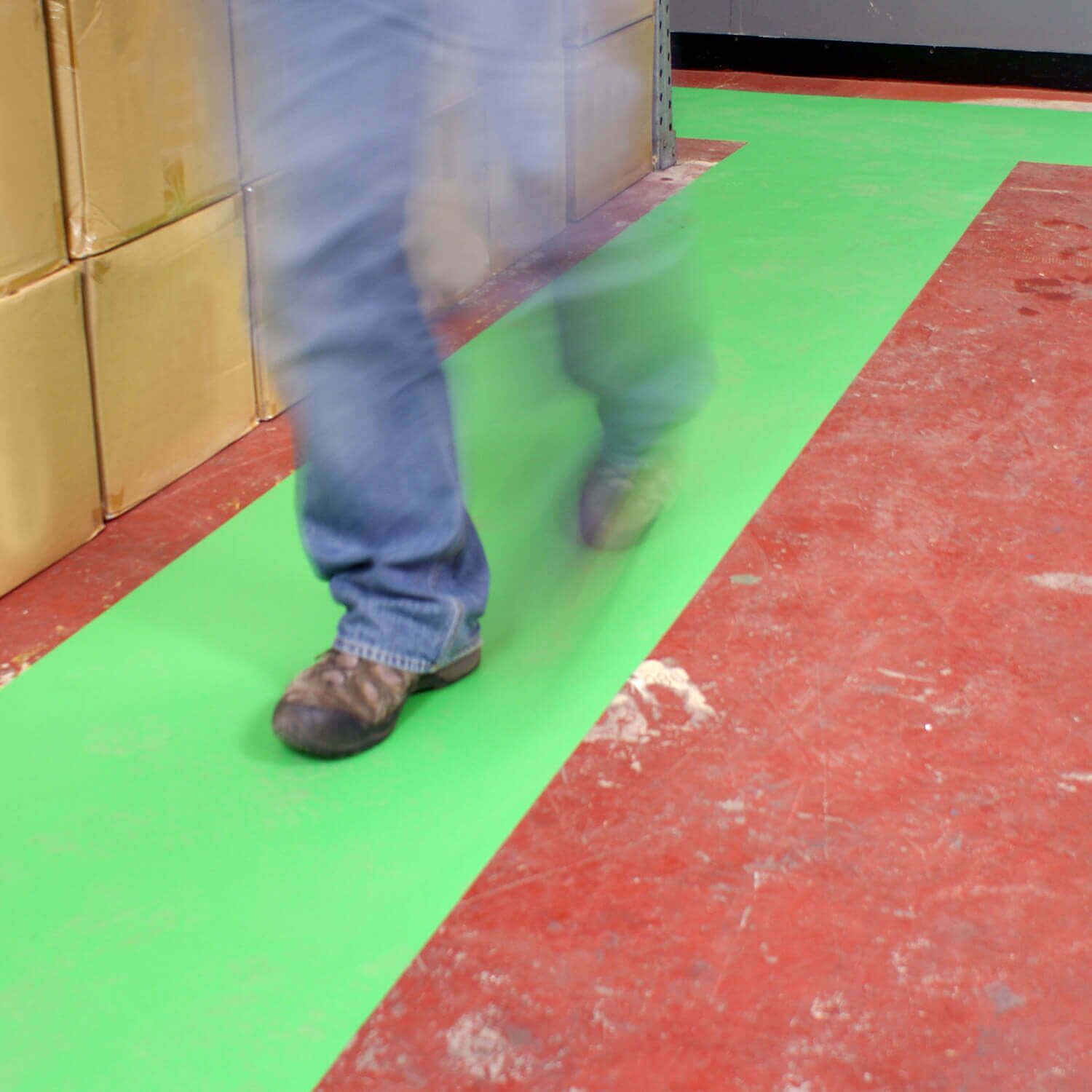

Yes. PermaRoute can define pedestrian walkways, forklift routes, warehouse aisles, and other traffic areas. Colored lines, arrows, and footprints can make different routes easier to recognize as part of a site-specific traffic management and safety floor marking system.
Can PermaRoute be used for 5S and lean floor marking?
Yes. PermaRoute can support 5S floor marking by clearly identifying storage locations, equipment positions, work cells, pedestrian routes, and operational zones.
Its combination of floor tape, colors, shapes, letters, and numbers makes it particularly useful for creating consistent visual management systems in lean manufacturing environments.
Can PermaRoute be used for warehouse wayfinding and location systems?
Yes. PermaRoute can combine floor lines, arrows, letters, and numbers to identify aisles, bays, picking zones, and destinations throughout a warehouse.
Location references such as A1, B12, or Zone 4 can help employees identify the correct area more quickly and complement an existing warehouse management or barcode system.

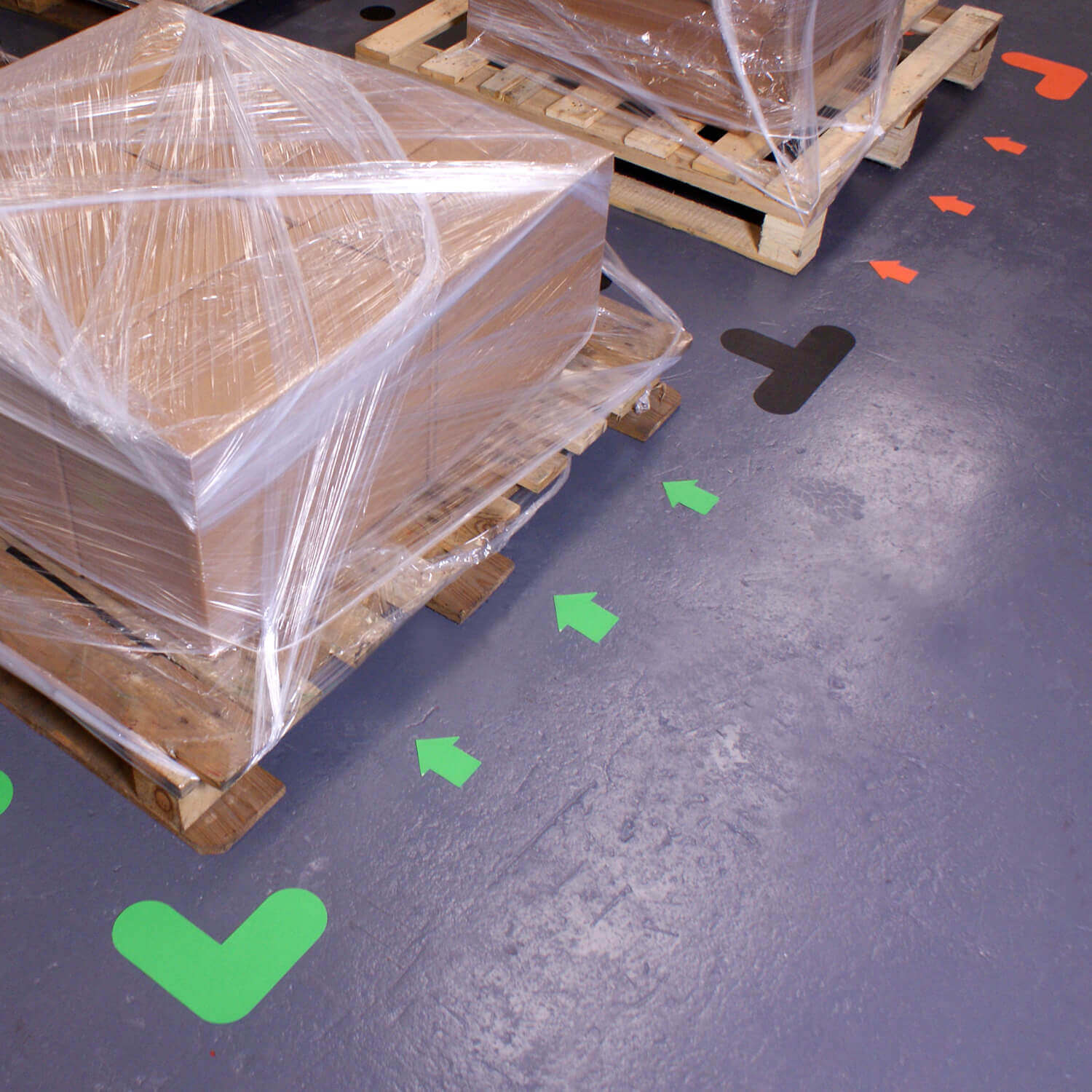

Can PermaRoute mark pallet and equipment locations?

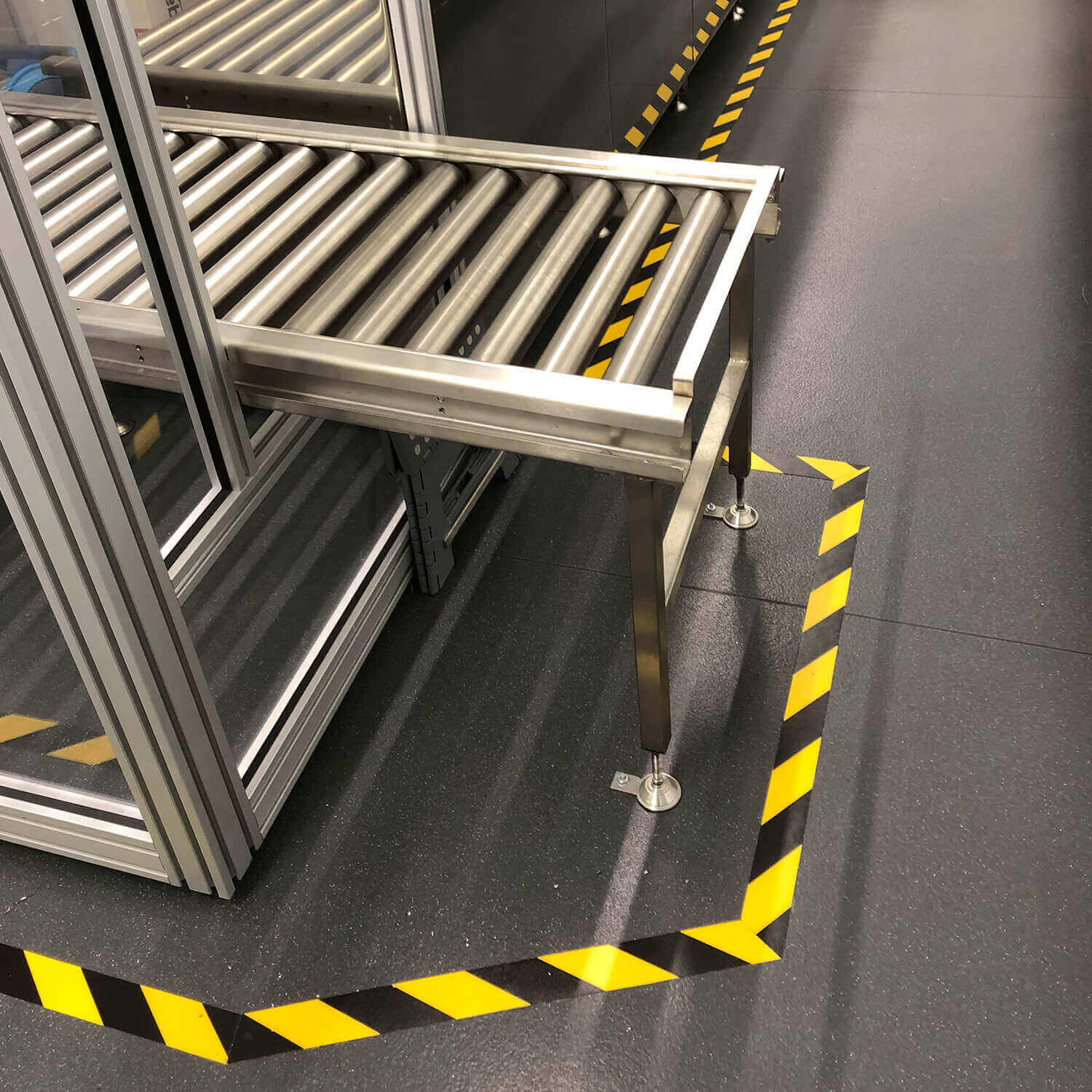

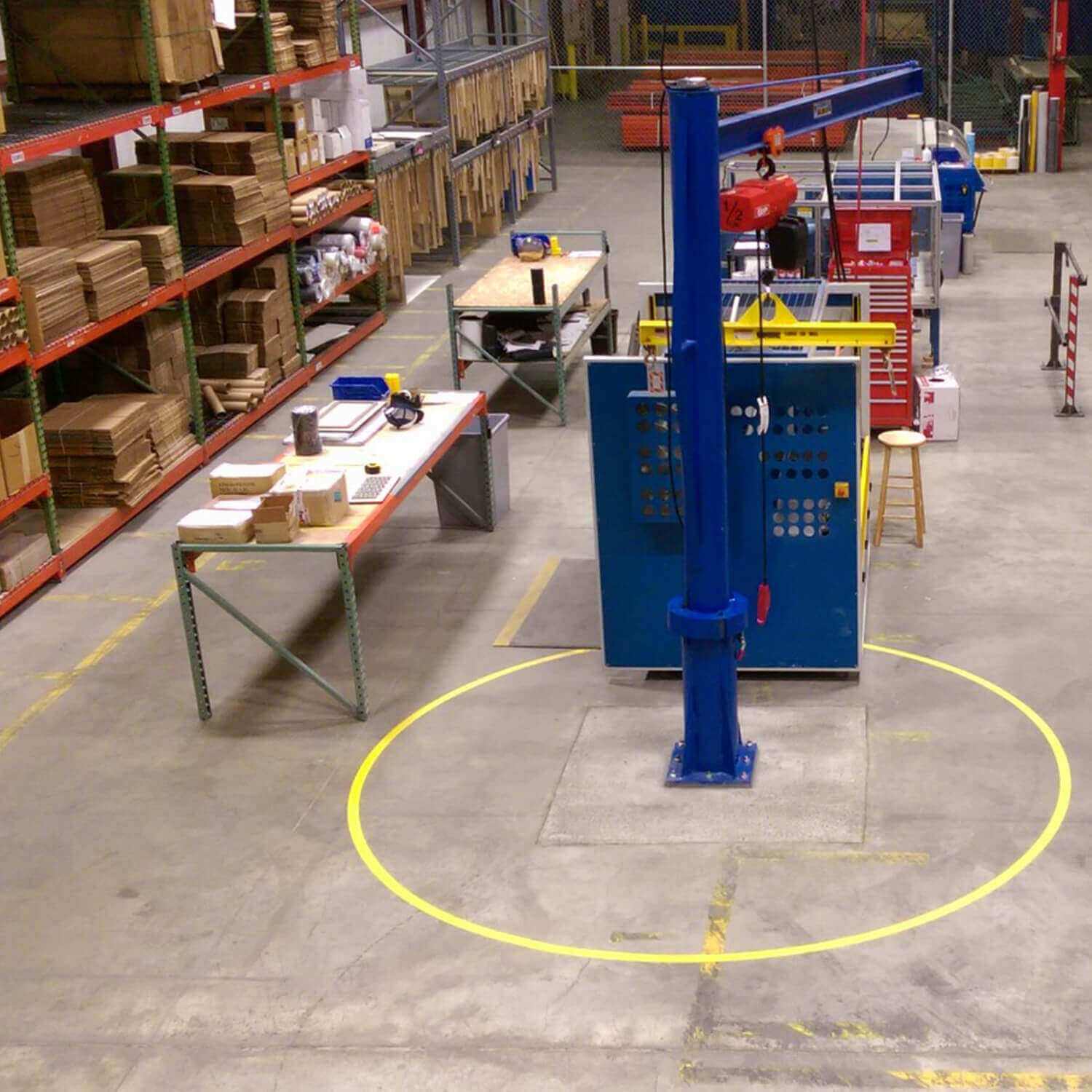

Yes. L-shapes, T-shapes, X-shapes, dots, and line blocks can identify pallet locations, equipment positions, waste stations, and storage areas.
Using individual floor markers rather than enclosing every location with continuous tape can also reduce the amount of floor marking material required.
What PermaRoute floor marker shapes are available?
PermaRoute is available as arrows, dots, footprints, shoes, boots, line blocks, and L-, T-, and X-shaped markers. Dedicated corners, junctions, bridges, and end caps are also available to create clean changes of direction and intersections within a floor marking layout.
Can PermaRoute be used for custom printed floor signage?
Yes. PermaRoute uses a layered construction with a clear protective laminate over the colored or printed layer. This makes the system suitable for printed designs, letters, numbers, symbols, and custom floor signage.
Custom options will depend on the required design, dimensions, and order quantity.
Can PermaRoute be used with barcodes or QR codes?
PermaRoute can incorporate printed warehouse identification information, including barcodes or QR codes, where suitable.
Any scannable code should be tested under the actual lighting, viewing angle, and scanning distance before a larger production run to help ensure reliable performance.
What is the difference between PermaRoute and PermaStripe?
PermaRoute ROUT uses a layered PVC construction with a protective clear laminate, making it particularly suited to detailed floor signage, printed designs, and complete wayfinding systems.
PermaStripe uses a thicker homogeneous PVC construction with an embossed surface, making it primarily a heavy-duty line marking tape.
What sizes and colors is PermaRoute available in?
PermaRoute is available in standard widths of approximately 2 inches (50 mm), 3 inches (75 mm), and 4 inches (100 mm), with rolls measuring approximately 98 feet (30 meters) long. Wider material can also be produced for specialized requirements.

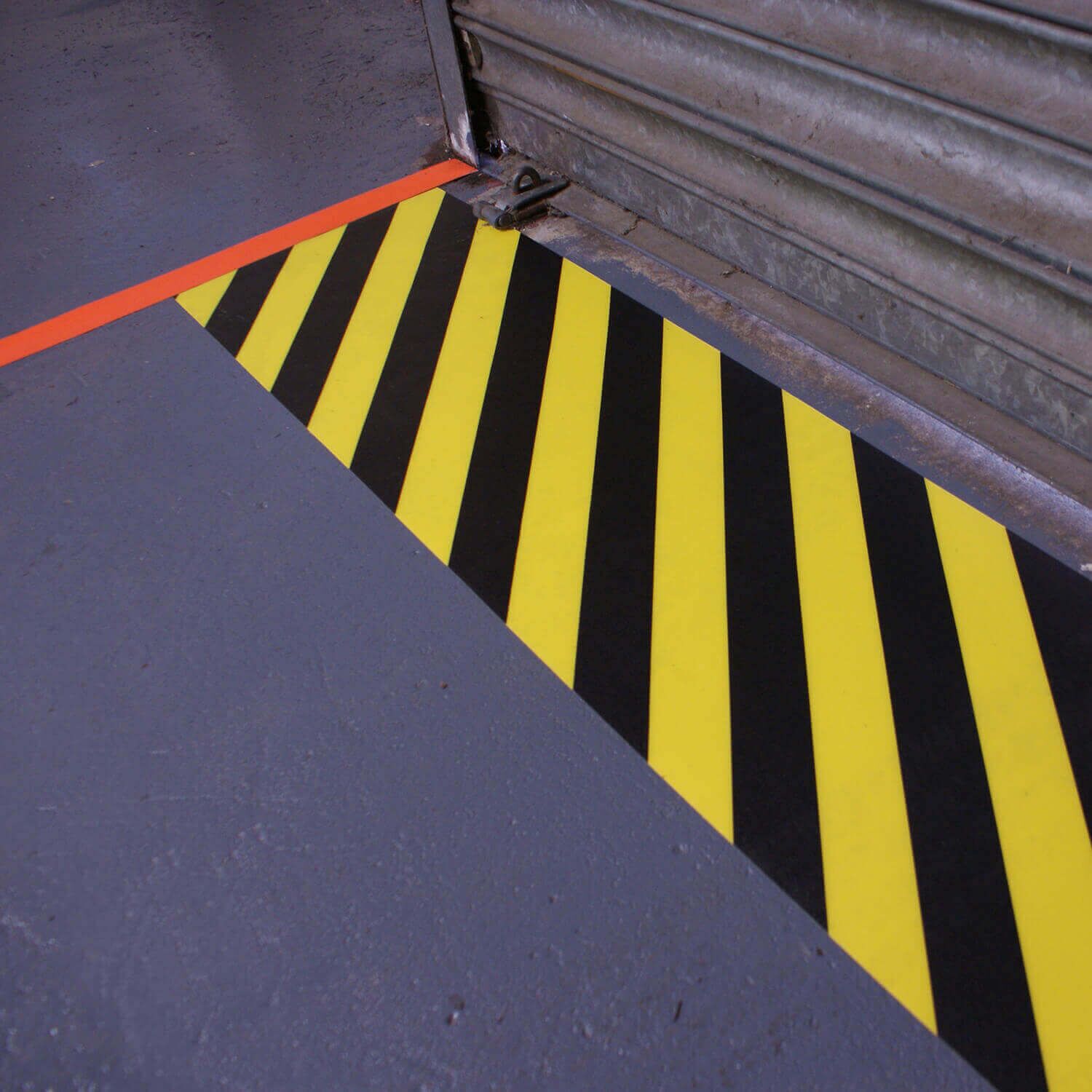

Colors include black, red, orange, yellow, fluorescent yellow, green, blue, dark blue, and white, along with hazard-striped and specialty options.
How do you install PermaRoute floor marking tape?
Apply PermaRoute to a clean, dry surface. Remove the release liner, position the tape or marker, and press it firmly onto the floor.
The self-adhesive system requires no paint curing or drying period, allowing routes, markers, and floor signage to be installed with minimal disruption.
How durable is PermaRoute?
PermaRoute uses a clear protective laminate to help protect the colored or printed layer from routine scuffs and wear. PermaRoute ROUT carries a conditional two-year warranty from the date of purchase.
Pallets, transit skids, and other heavy objects should not be dragged, pushed, or scraped across the marking, as this type of damage is excluded from the warranty.
Can I request a PermaRoute sample before ordering?
Yes. Samples are available so you can assess the color, finish, profile, and adhesion of PermaRoute before installing it throughout a warehouse or factory. Sampling is particularly useful when planning a larger 5S, wayfinding, or warehouse floor marking project.
