Floor Tape Applicator

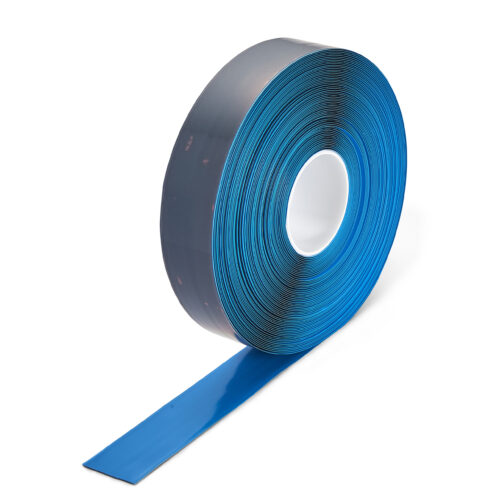

- For 50mm, 75mm & 100mm PermaStripe®, PermaRoute® & PermaLean®
- Includes guide rollers with adjusters
- Integrated systems to apply line marking tape
- Ergonomic handle for more comfort
Improves 5S Optimization
Hands Free Application
Easy to Apply
Available For Hire
Enquiry
Enquiry

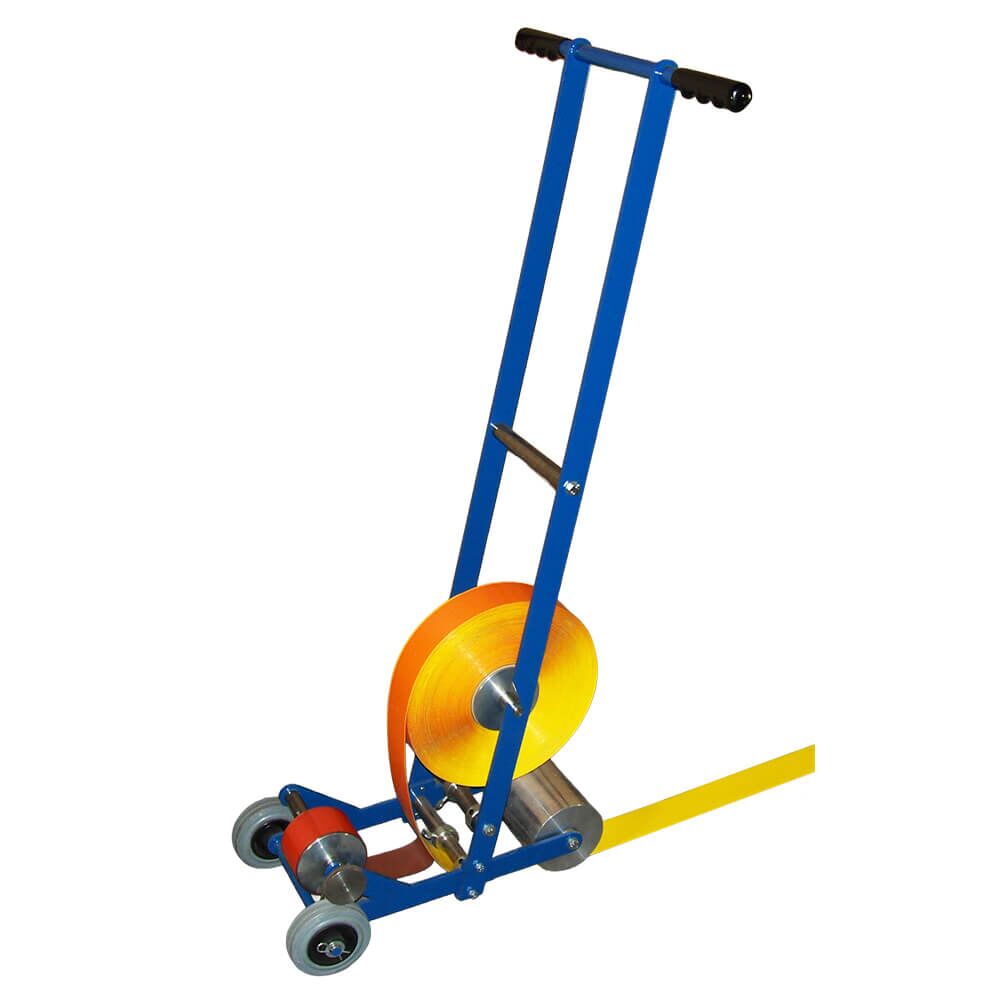

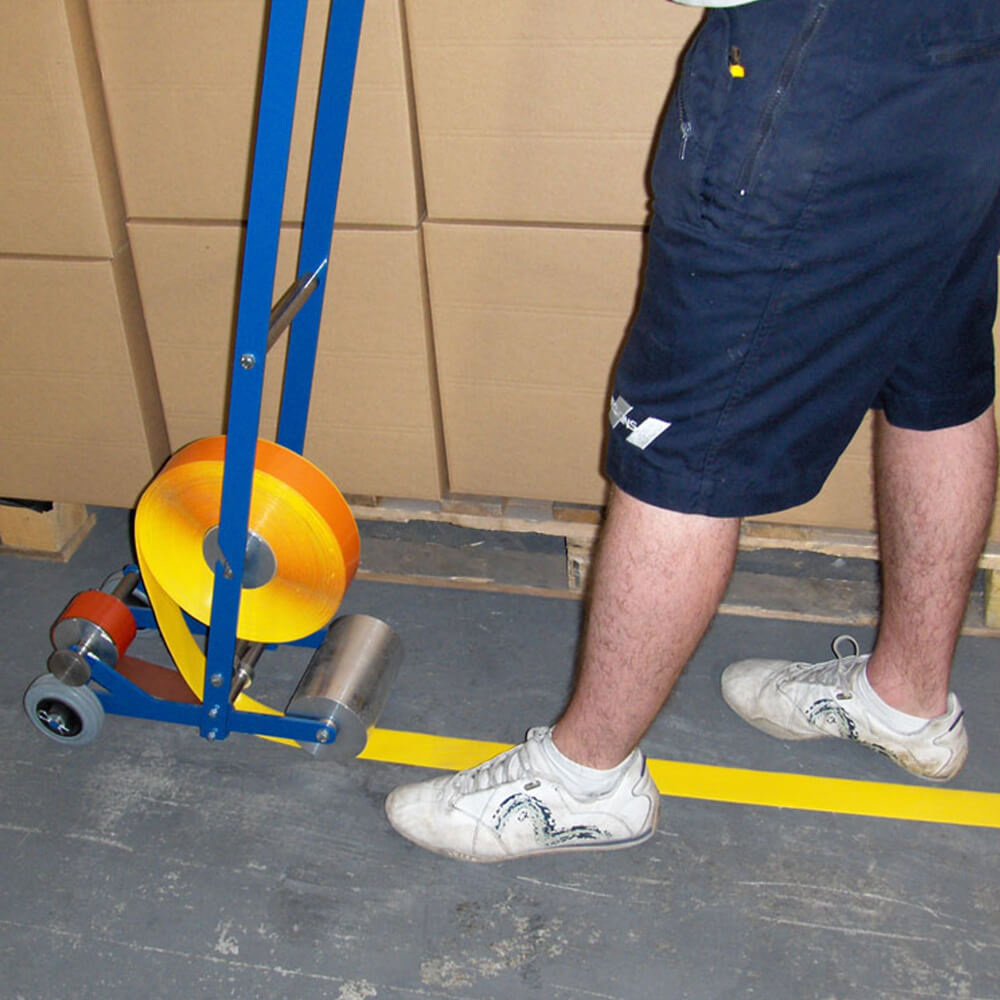

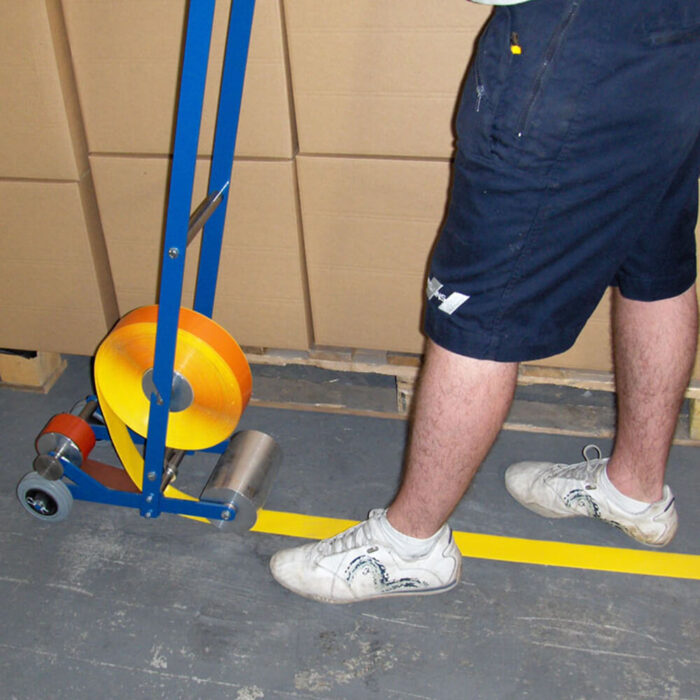

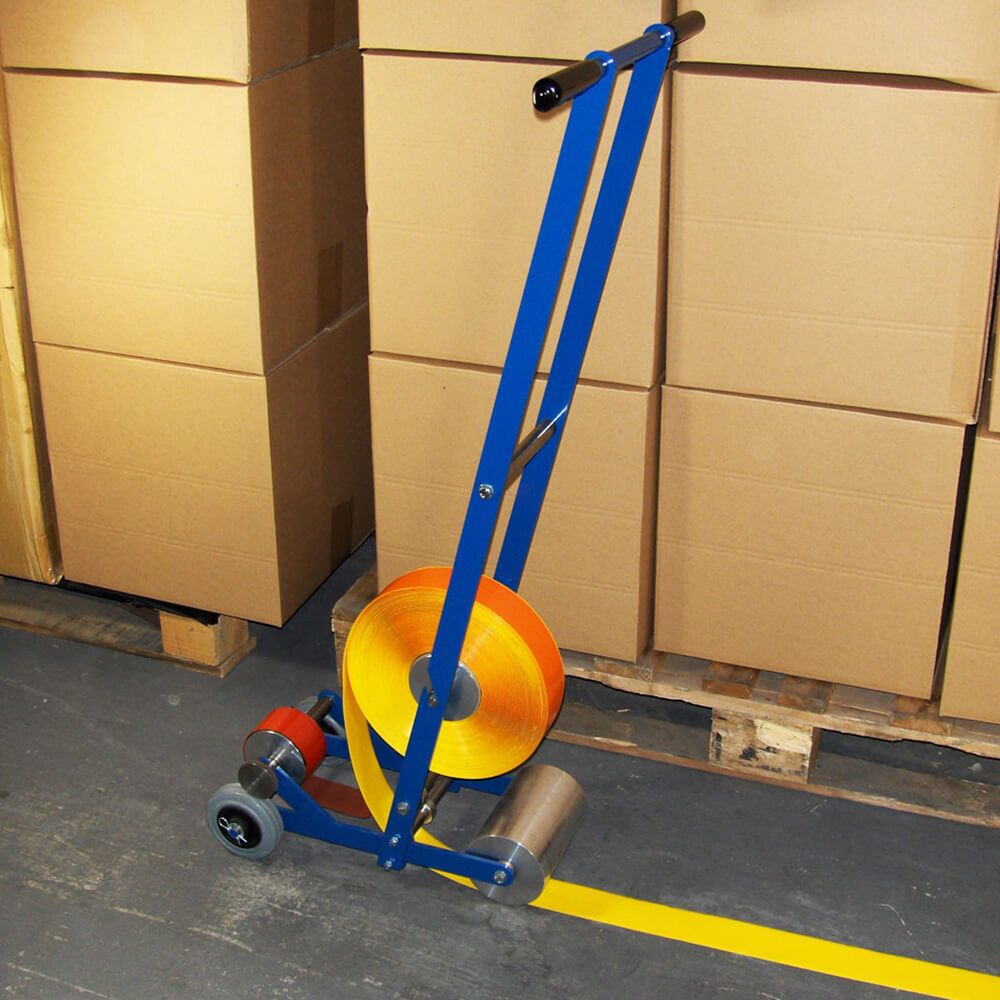

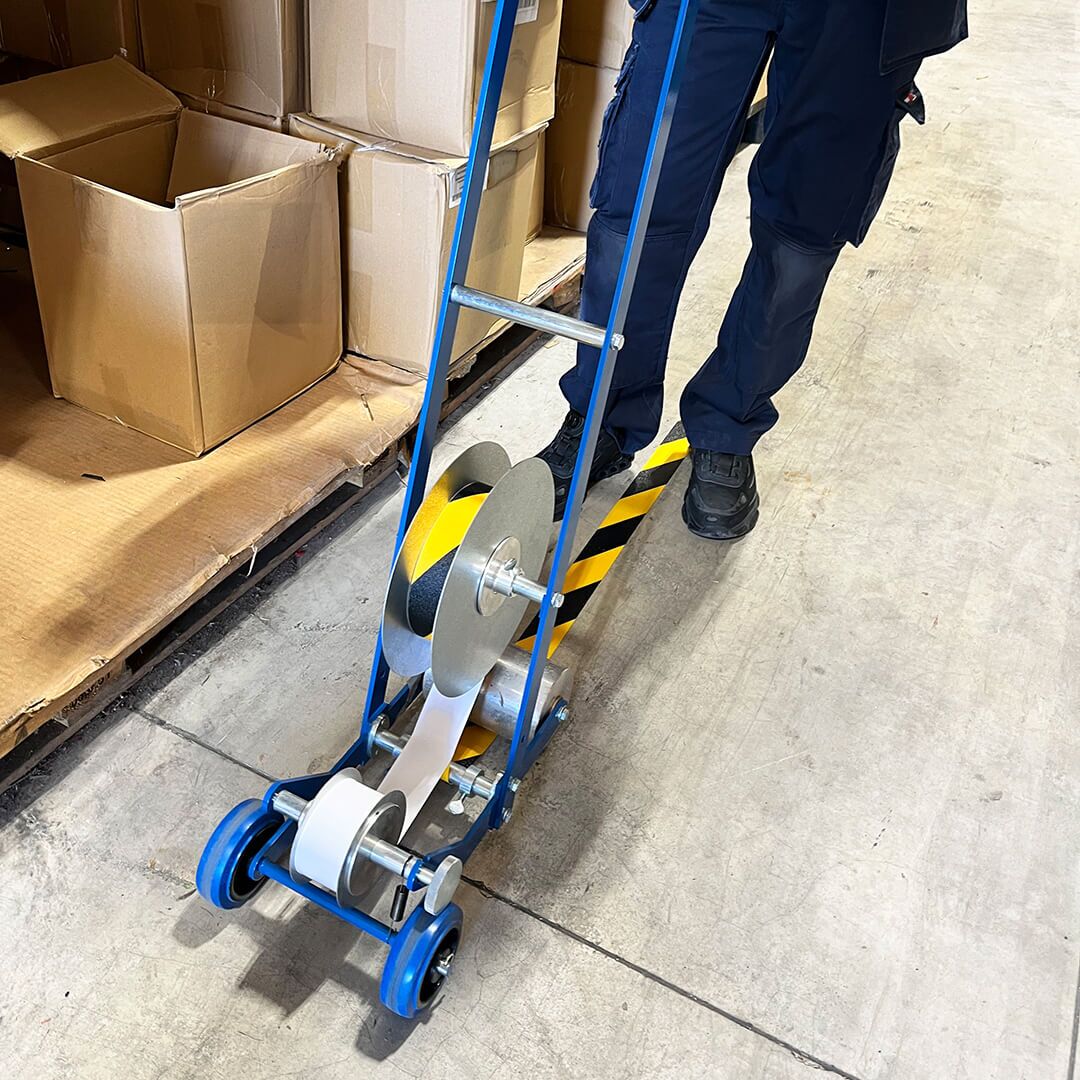

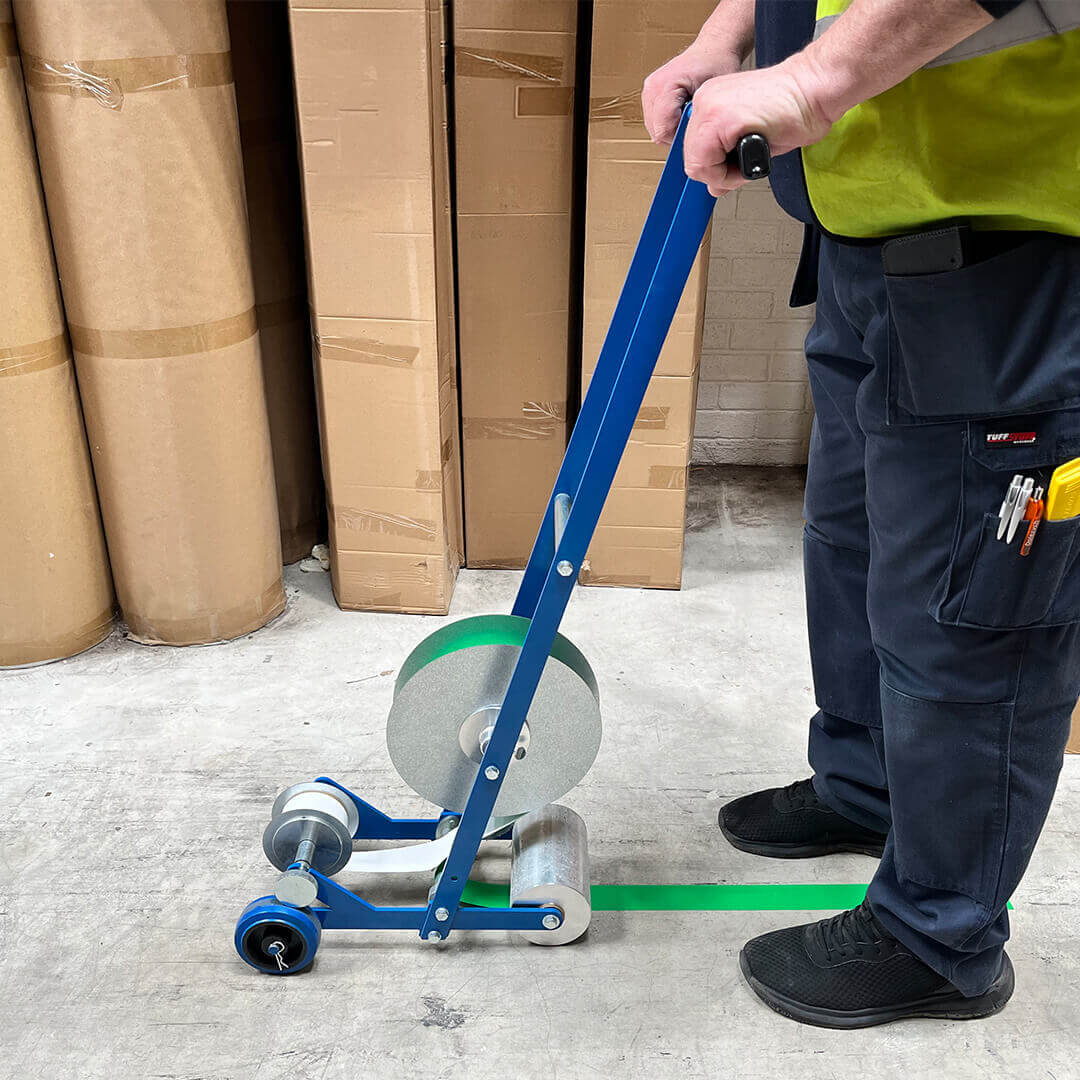

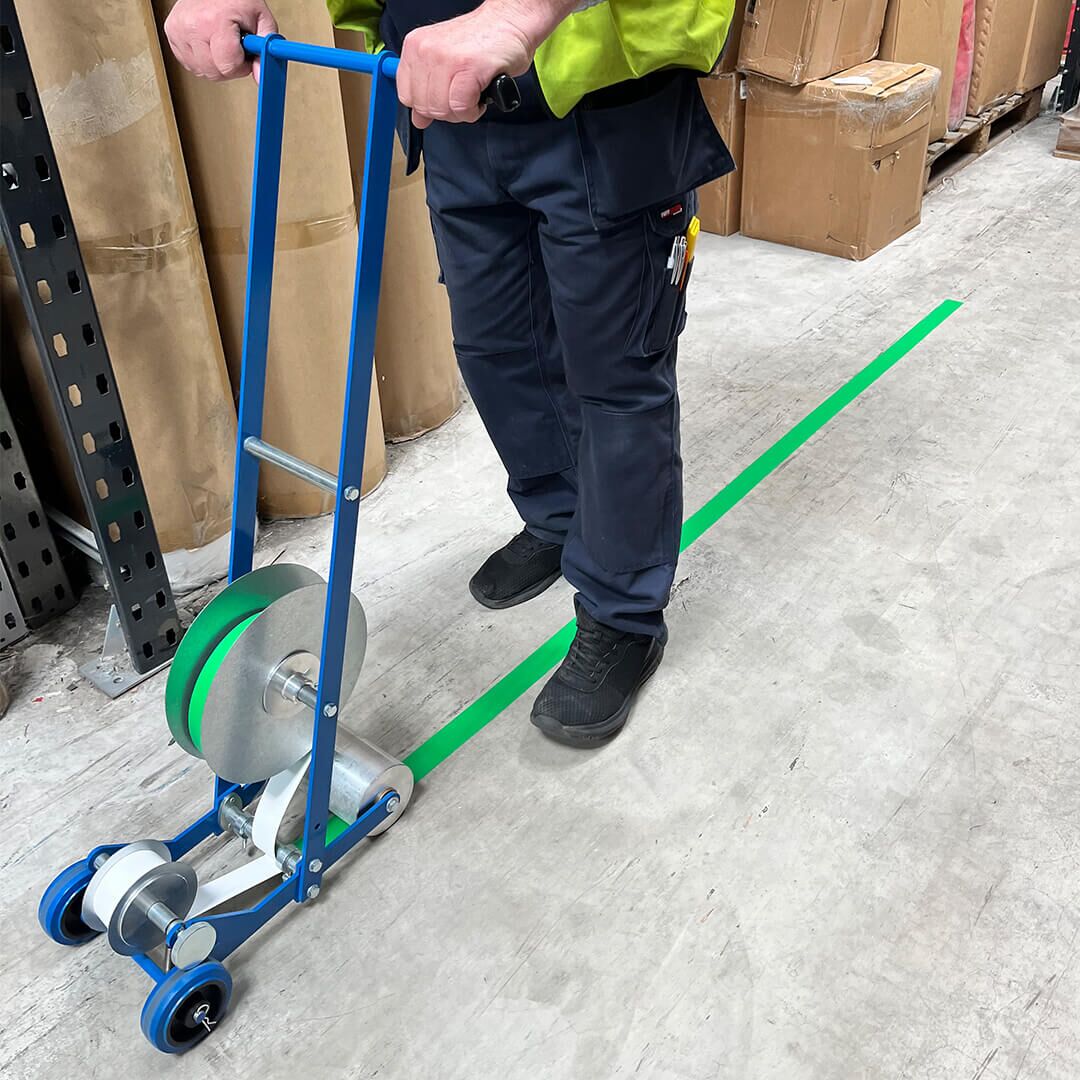

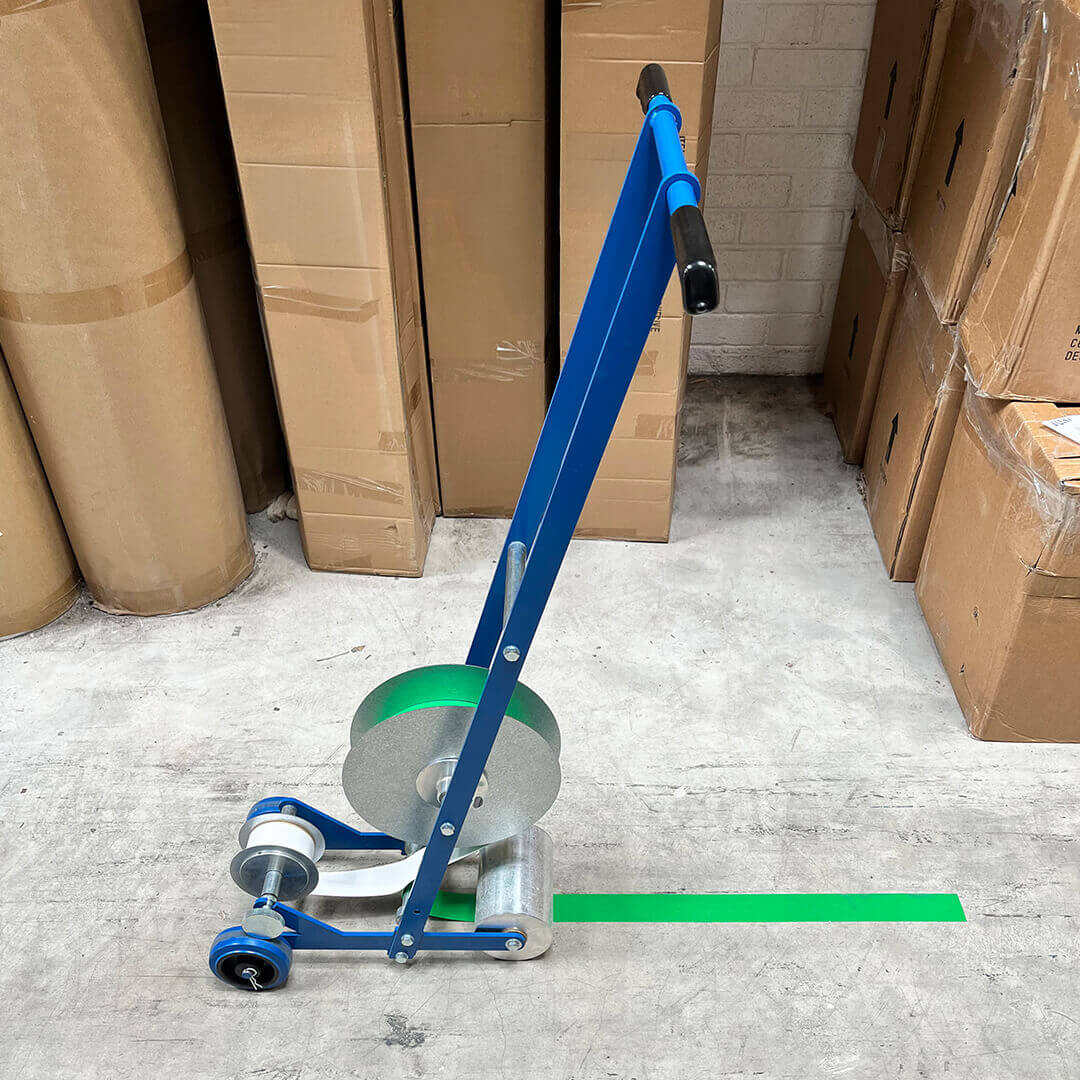

Line Marking Applicator Overview

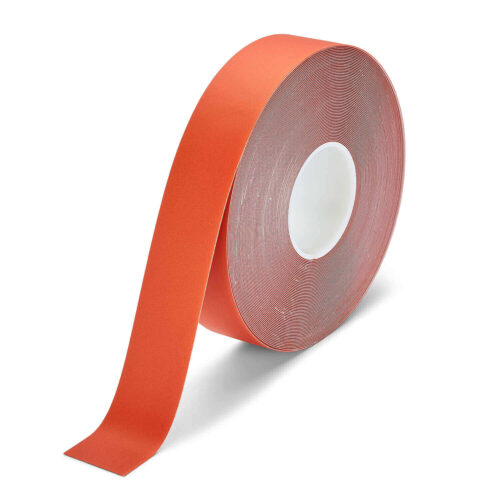

The new and improved PermaStripe, PermaRoute, and PermaLean line marking applicator is designed for fast and efficient installation of our warehouse floor marking tapes across large areas. It dramatically improves efficiency, making it the perfect choice when applying PermaStripe, PermaRoute, or PermaLean as your facility’s marking tape solution.

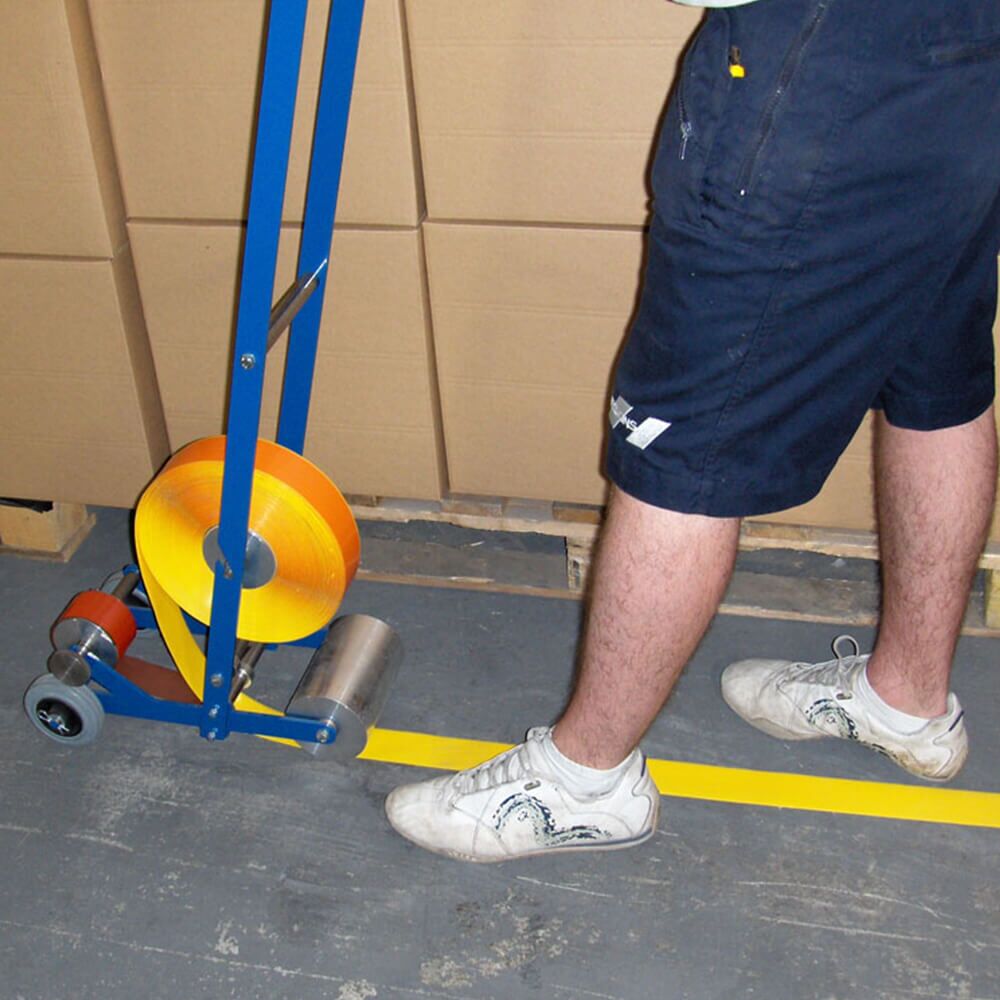

With no assembly required and quick setup, the applicator lets you apply floor tape to clean, dry surfaces in a fraction of the time it would take by hand.
Unlike our previous model, this applicator has been redesigned to handle all three tape systems. PermaStripe is reverse-rolled (top surface inside), while PermaRoute and PermaLean are conventionally rolled (top surface outside). The applicator integrates both setups, ensuring each type is applied smoothly and accurately.
Operating the new line marking applicator is simple. Insert the spindle through your chosen tape roll, follow the CNC-etched instructions on the side plate for correct orientation, and you’re ready to go.

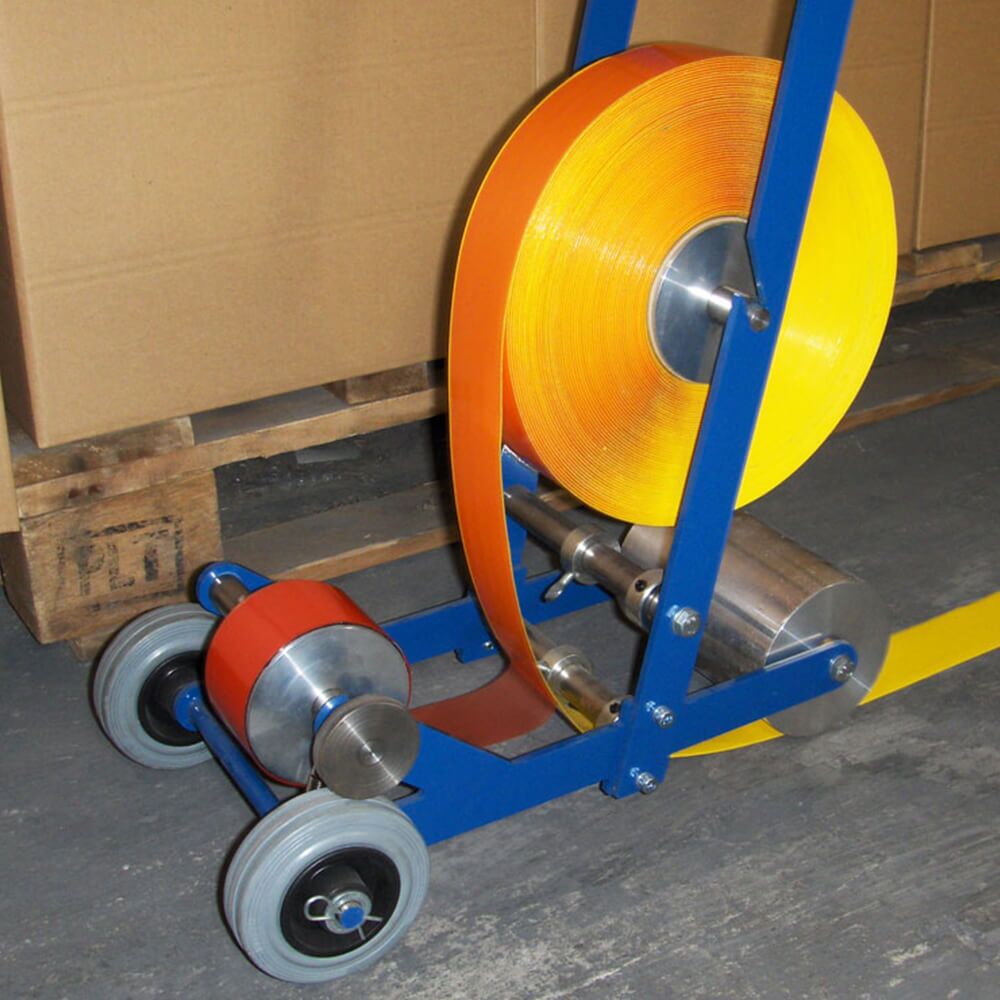

The applicator includes quick-pin adjustments for 2” (50mm), 3” (75mm), and 4” (100mm) rolls, along with automated, tension-controlled liner removal. A large aluminum roller ensures firm adhesion to the floor, while the wider wheelbase provides extra stability. The ergonomic handle also reduces hand and shoulder fatigue during large-scale applications-making it an ideal tool for facilities with extensive floor marking needs.
For more information about our line marking tape applicator, please contact us by phone or live chat. Alternatively, complete the enquiry form above and a member of our sales team will respond promptly.
VIDEOS
PermaLean Shape Markers
Please click on the images to view the Dimensions.
Shapes (Click images to view dimensions)

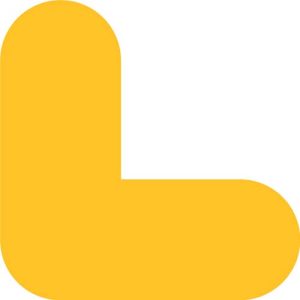

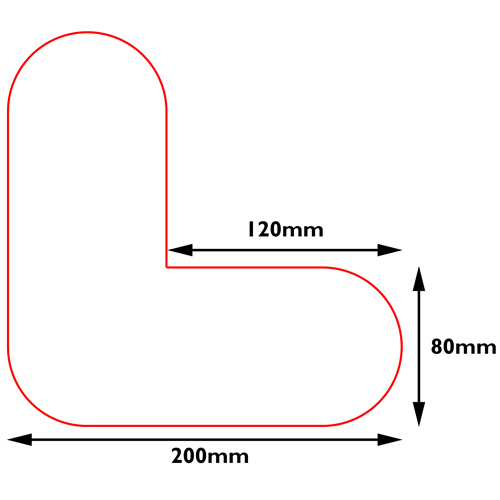

L
ZN0027 – 200mm x 200mm

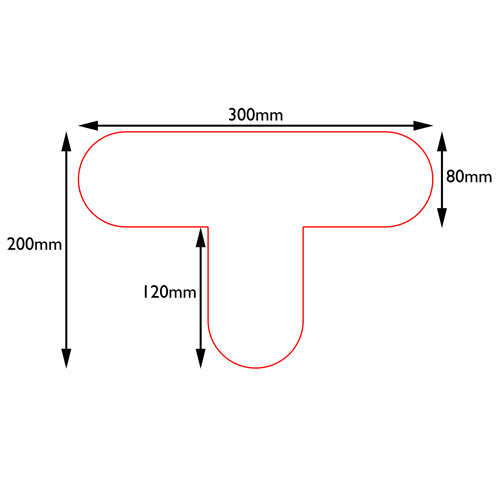

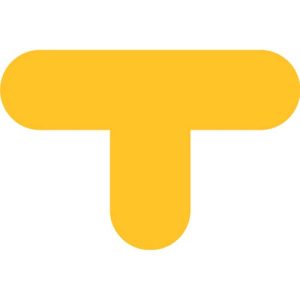

T
ZN0028 – 300mm x 200mm

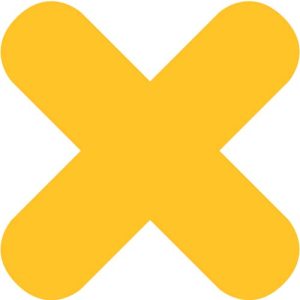

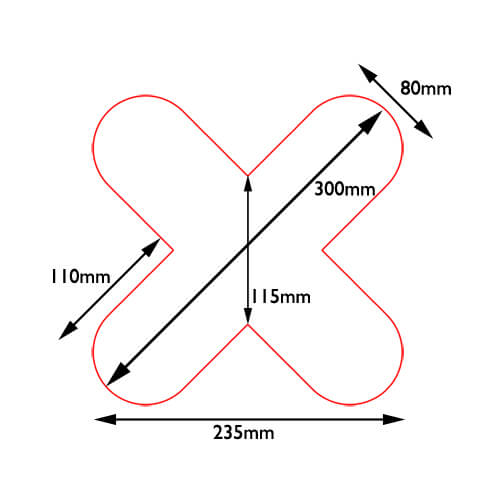

X
ZN0029 – 300mm x 300mm

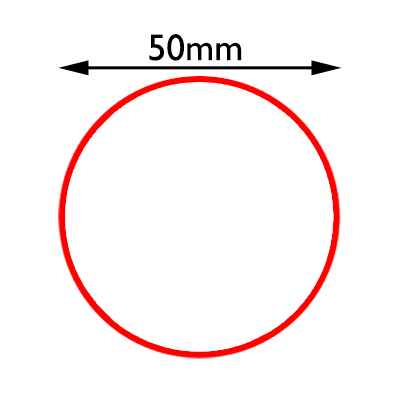

Dot – 50mm Ø
ZN0035

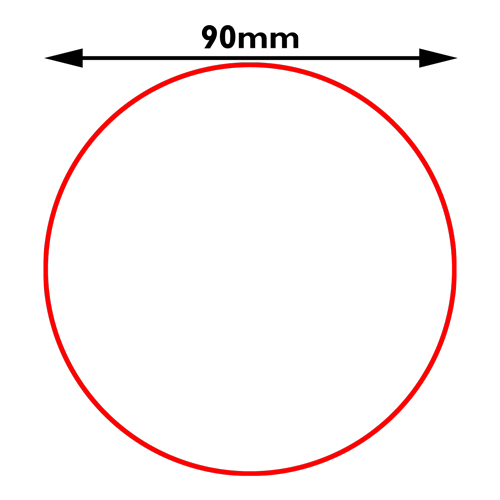

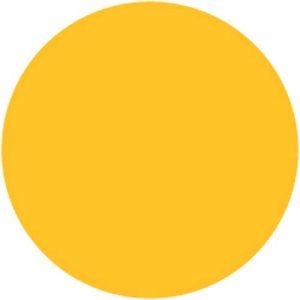

Dot – 90mm Ø
ZN0034

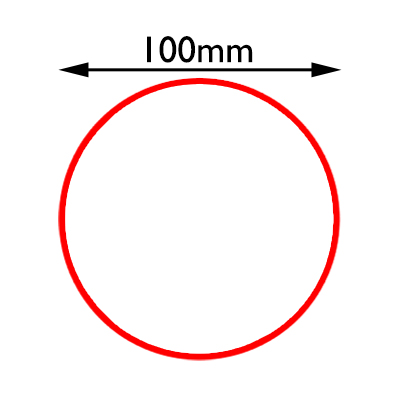

Dot – 100mm Ø
ZN0023

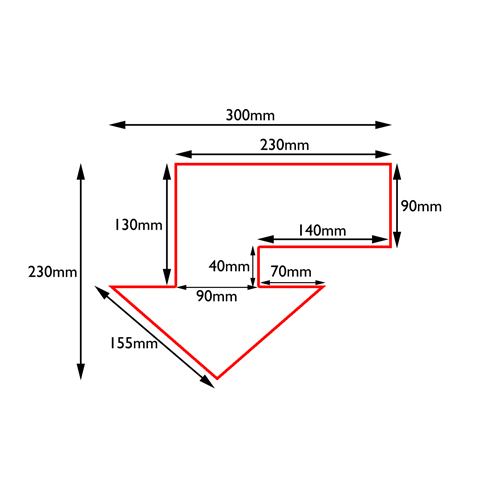

Arrow (Left or Right)
ZN0344 – 300mm x 230mm

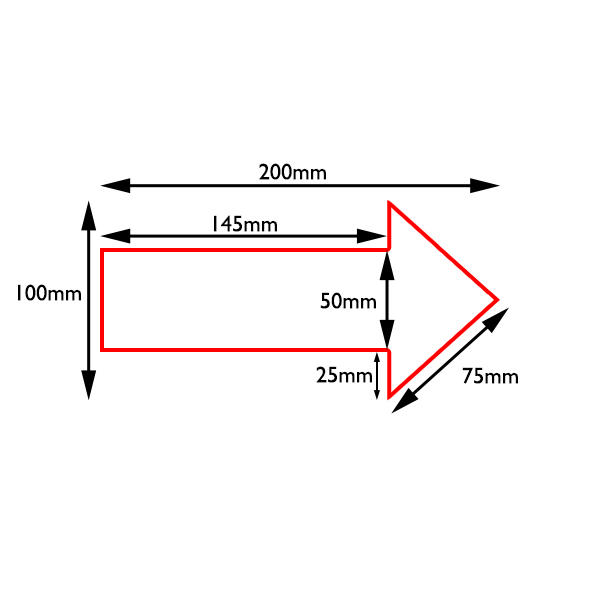

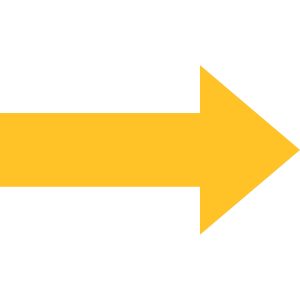

Arrow
ZN0020 – 100mm x 200mm
Small Arrow
ZN0009 – 100mm x 65mm

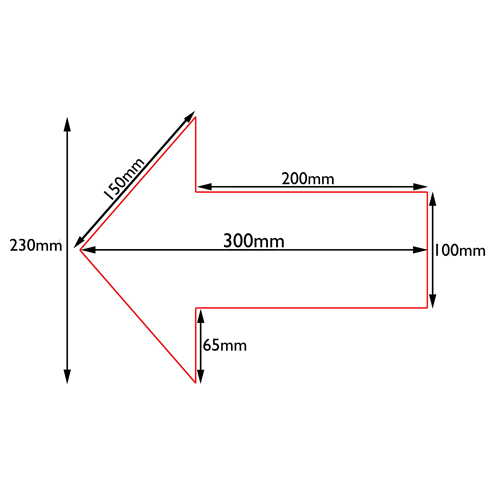

Large Arrow
ZN0012 – 300mm x 230mm

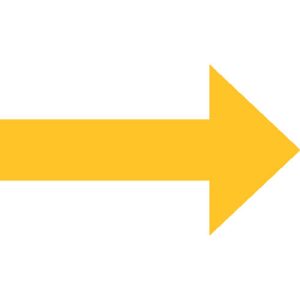

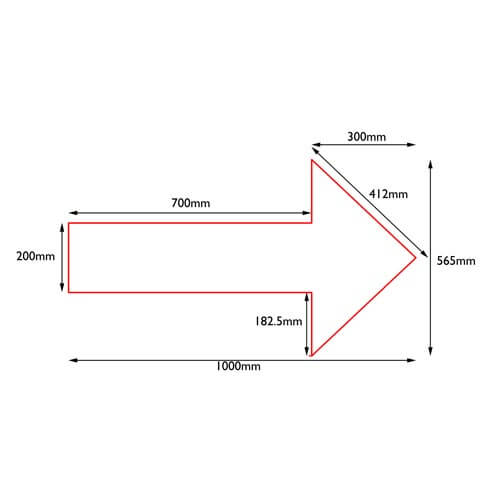

Extra Large Arrow
ZN0333 – 1000mm x 565mm

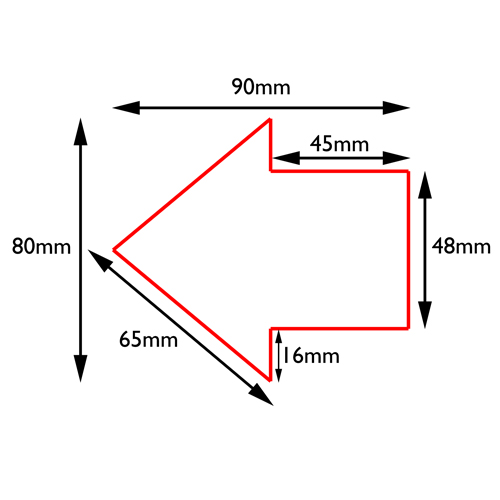

Short Arrow
ZN0050 – 90mm

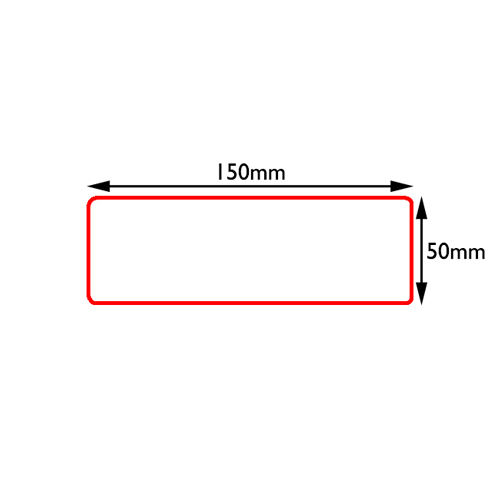

Line Block
ZN0021 – 150mm x 50mm

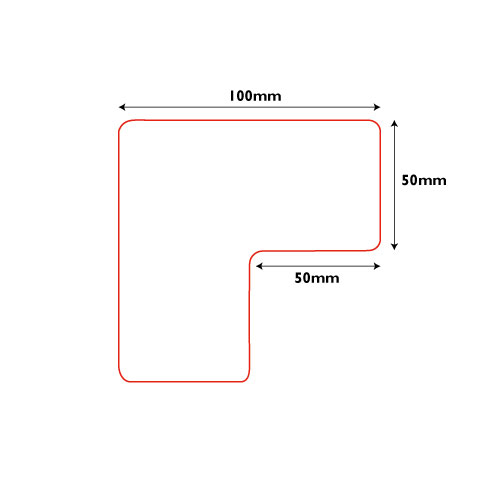

L-Shape
ZN0024 – 100mm x 100mm

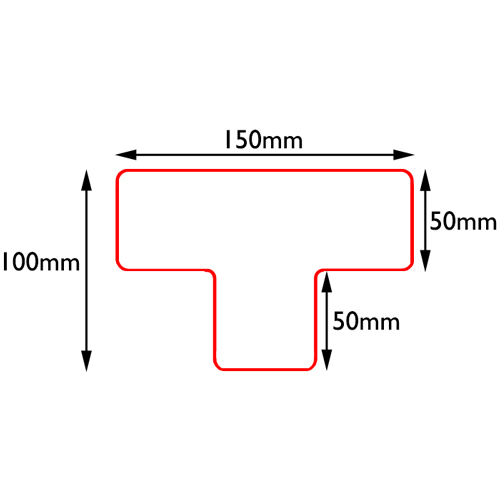

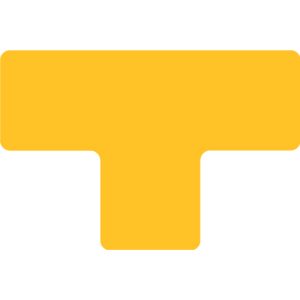

T-Shape
ZN0129 – 100mm x 150mm

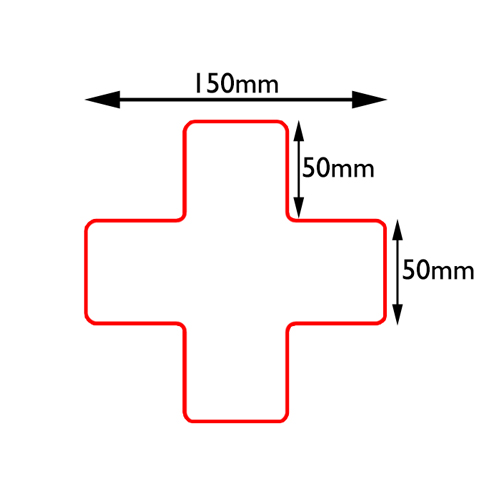

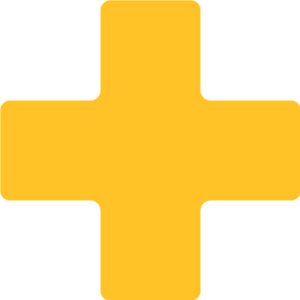

X-Shape
ZN0022 – 150mm x 150mm
Feet (Click images to view dimensions)

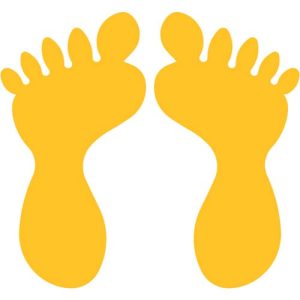

Feet
ZN0201- 280mm x 105mm

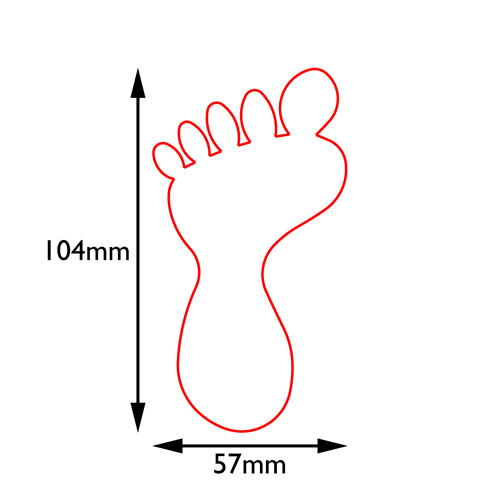

Feet
ZN0010 – 57mm x 104mm

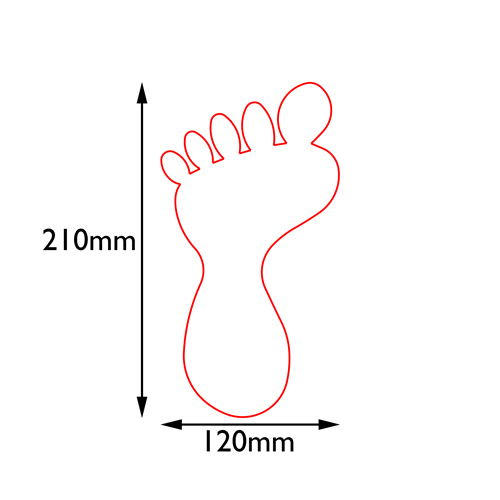

Feet
ZN0011 – 120mm x 210mm

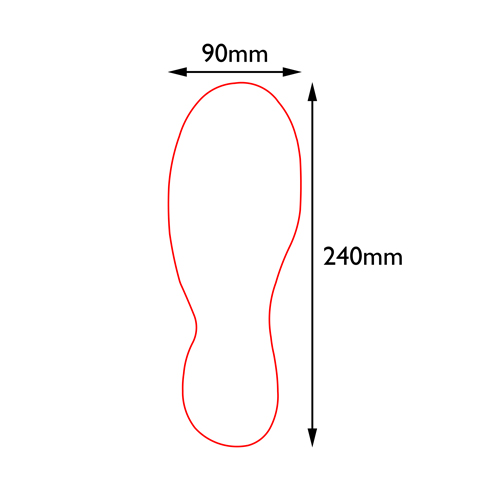

Shoes
ZN0013 – 240mm x 90mm

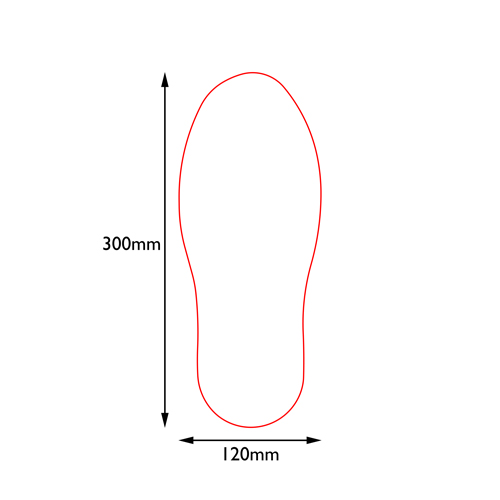

Boots
ZN0016 – 300mm x 120mm
Joins (Click images to view dimensions)

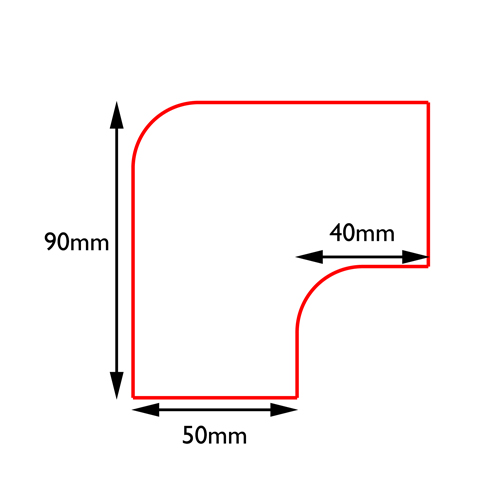

90° Corner
ZN0063 – To join 50mm rolls

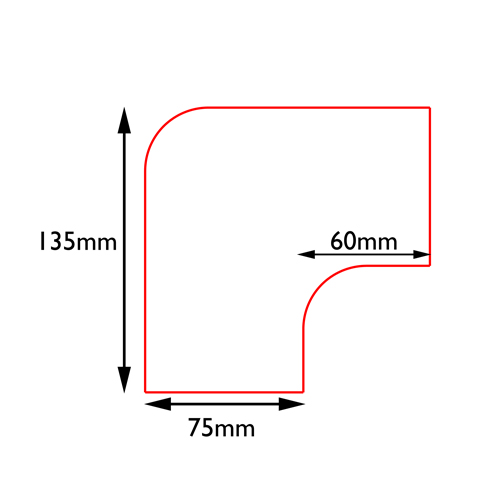

90° Corner
ZN0054 – To join 75mm rolls

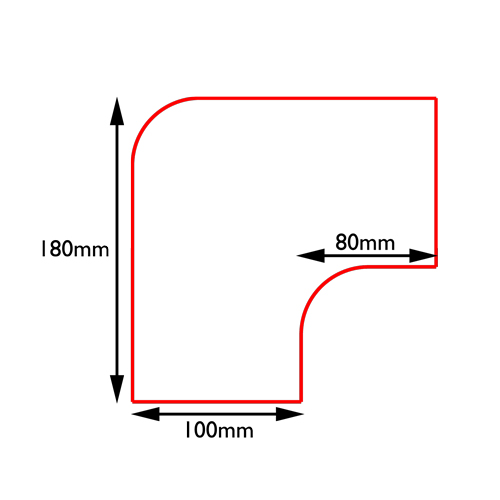

90° Corner
ZN0202 – To join 100mm rolls

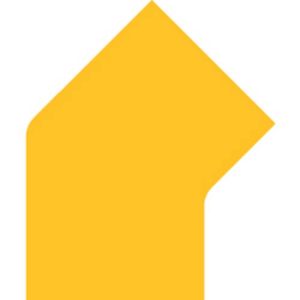

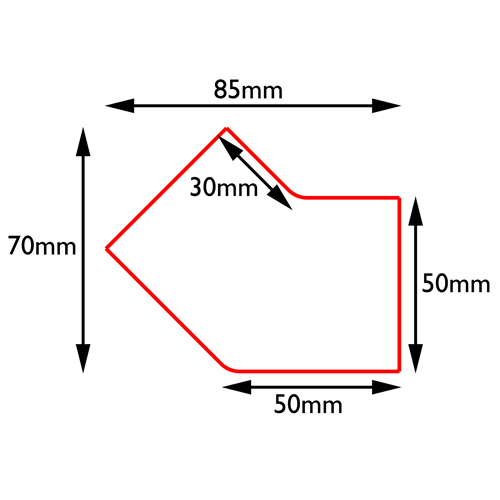

45° Corner
ZN0214 – To join 50mm rolls

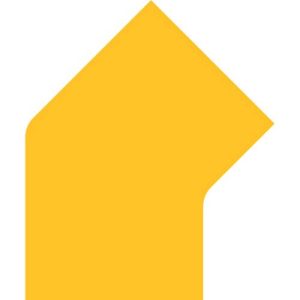

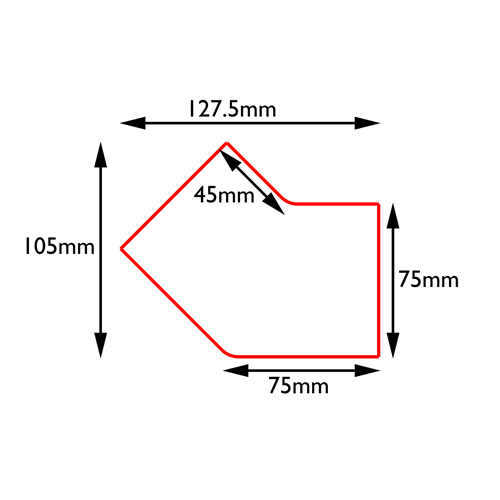

45° Corner
ZN0215 – To join 75mm rolls

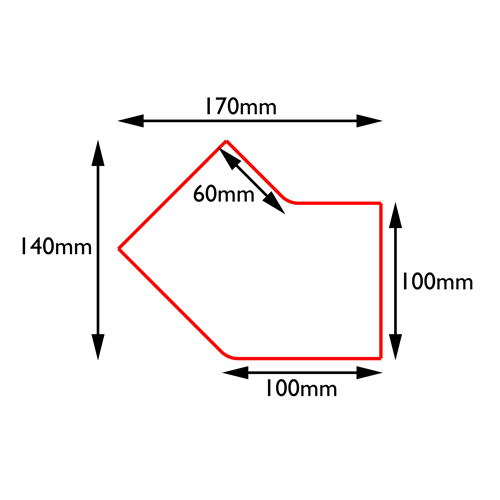

45° Corner
ZN0216 – To join 100mm rolls

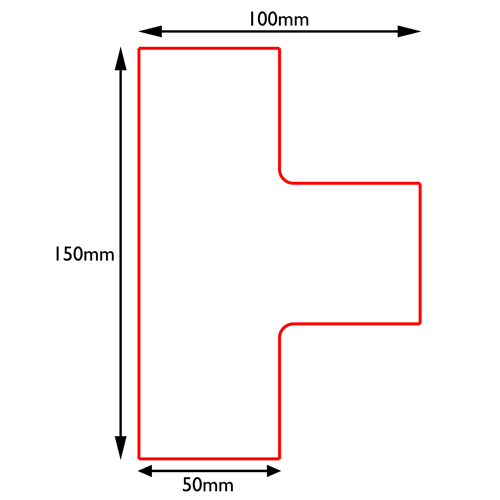

T-Junction
ZN0055 – To join 50mm rolls

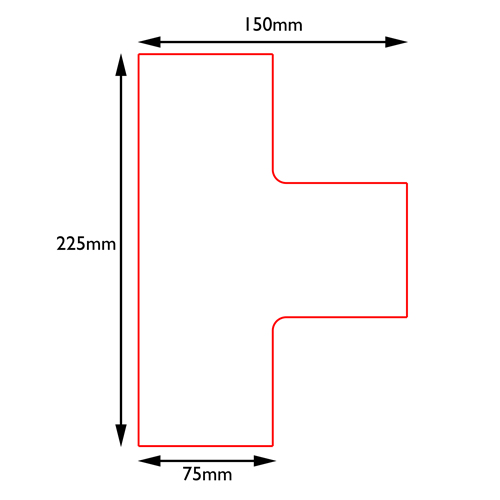

T-Junction
ZN0217 – To join 75mm rolls

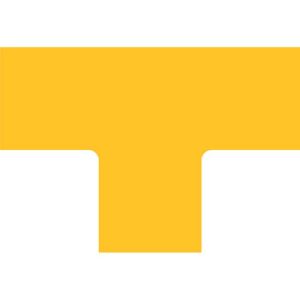

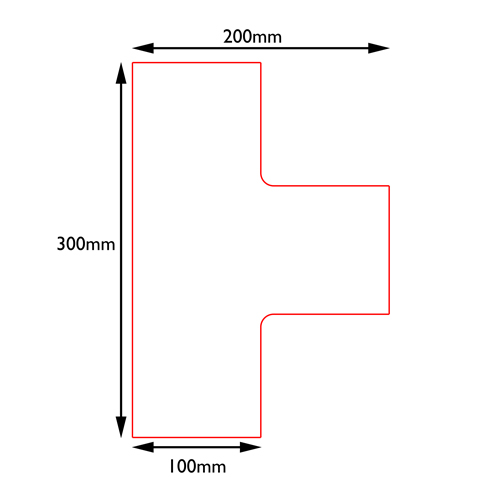

T-Junction
ZN0339 – To join 100mm rolls

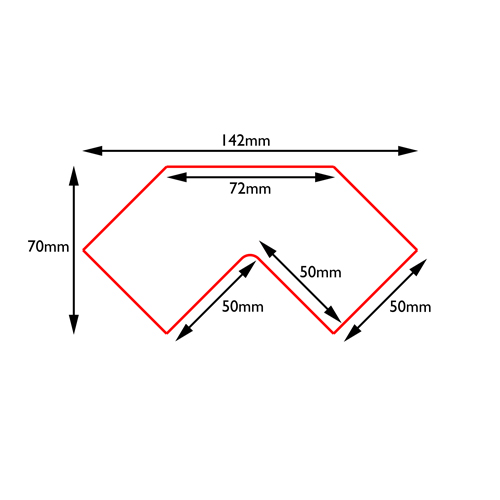

Bridge
ZN0061 – To join 50mm rolls

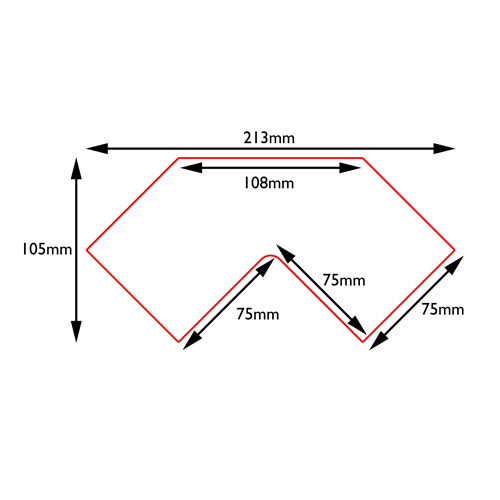

Bridge
ZN0062 – To Join 75mm Rolls
Bridge
ZN0340 – To join 100mm rolls

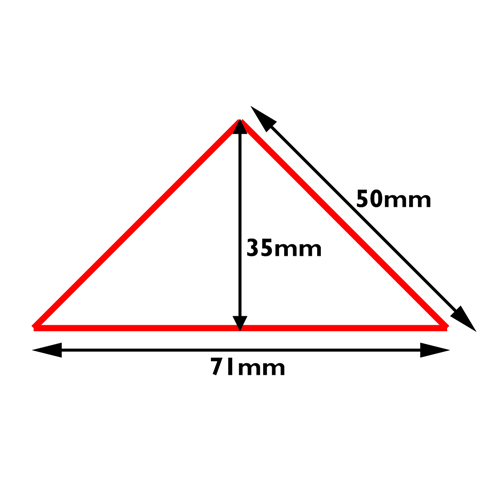

End Cap
ZN0157 – To join 50mm rolls

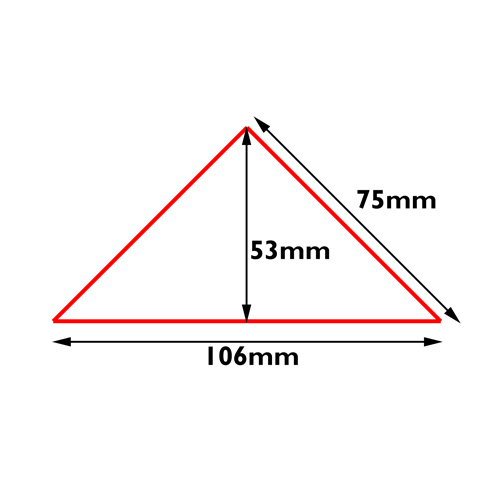

End Cap
ZN0341 – To join 75mm rolls

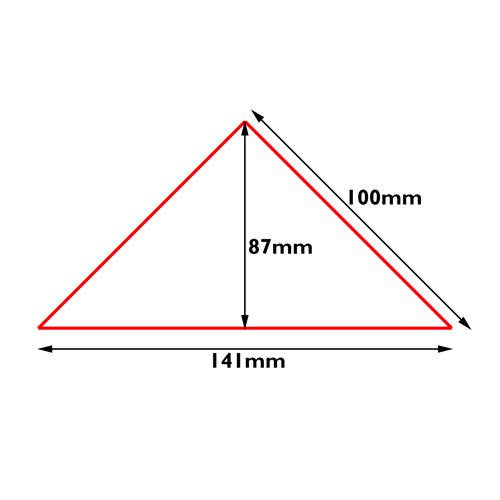

End Cap
ZN0342 – To join 100mm rolls
Numbers (Click images to view dimensions)

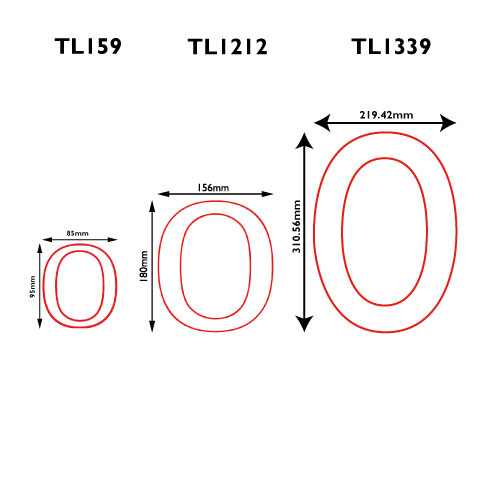

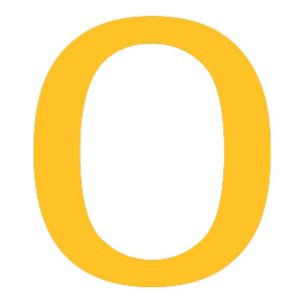

0
ZN0083– 95mm
ZN0093– 180mm
ZN0093– 300mm

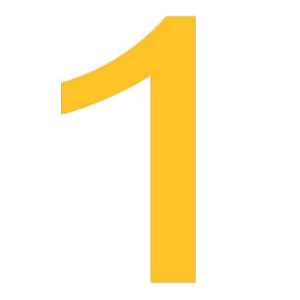

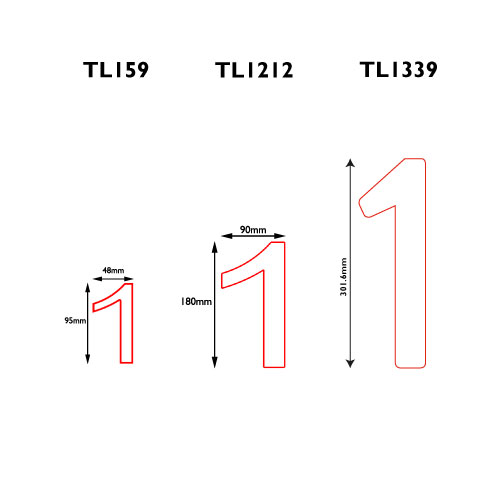

1
ZN0084– 95mm
ZN0094– 180mm
ZN0103– 300mm

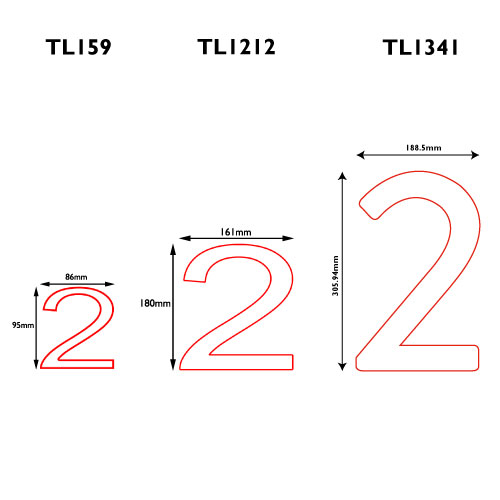

2
ZN0085– 95mm
ZN0095– 180mm
ZN0105– 300mm

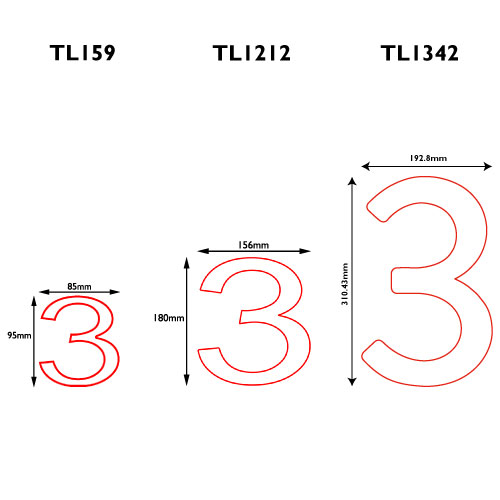

3
ZN0083– 95mm
ZN0096– 180mm
ZN0103– 300mm

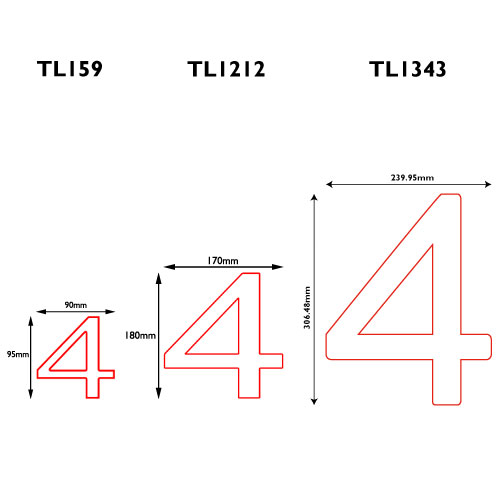

4
ZN0087– 95mm
ZN0097– 180mm
ZN0107– 300mm

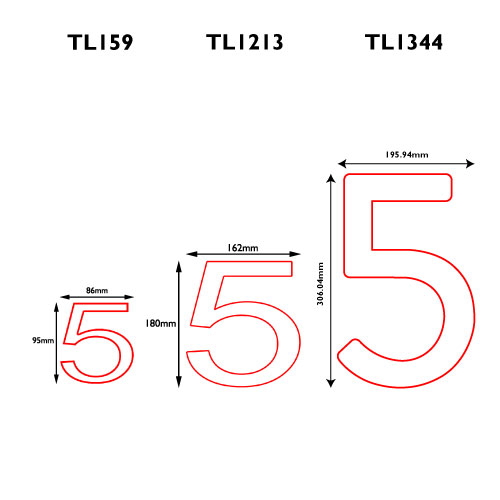

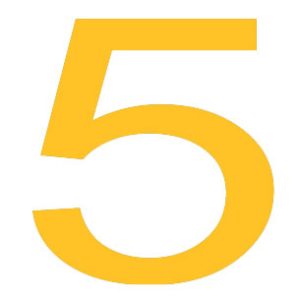

5
ZN0088– 95mm
ZN0098– 180mm
ZN0108– 300mm

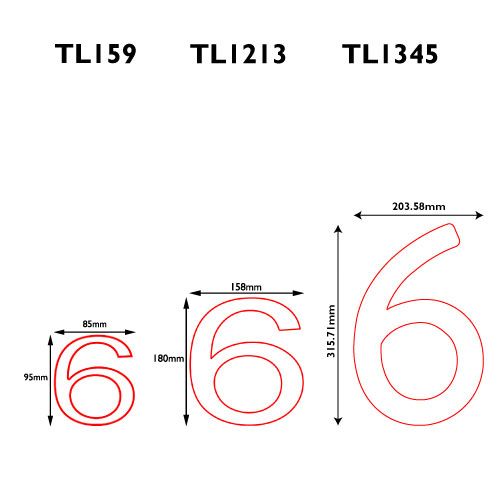

6
ZN0089– 95mm
ZN0099– 180mm
ZN0109– 300mm

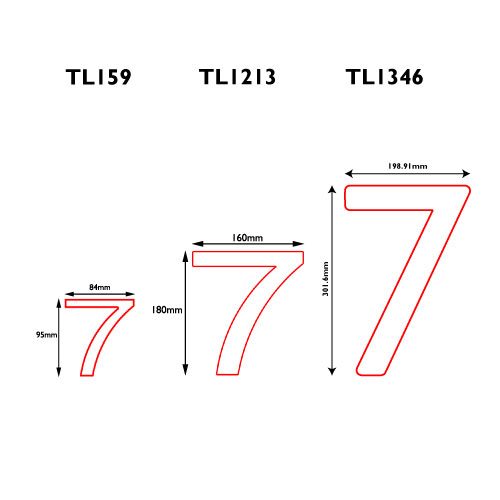

7
ZN0090– 95mm
ZN0100– 180mm
ZN0110– 300mm

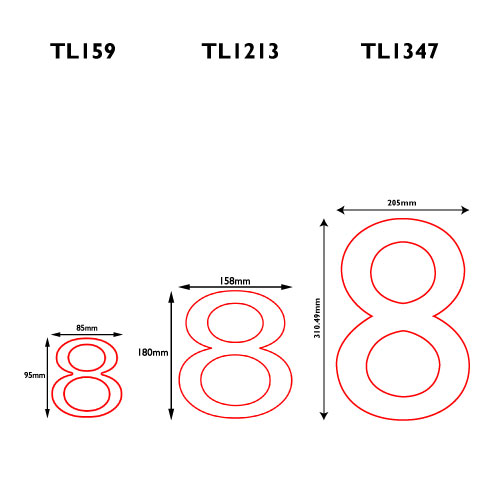

8
ZN0091– 95mm
ZN0101– 180mm
ZN0111– 300mm

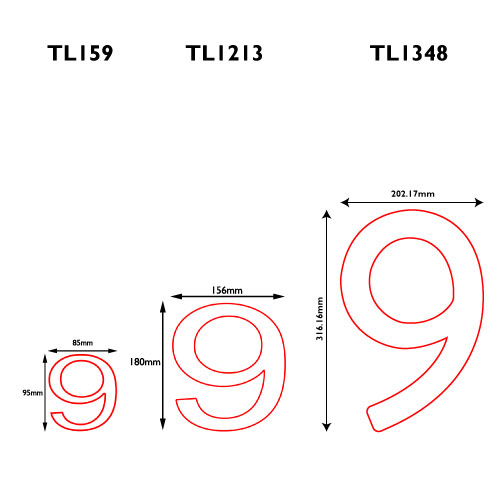

9
ZN0092– 95mm
ZN0102– 180mm
ZN0112– 300mm
Letters (Click images to view dimensions)

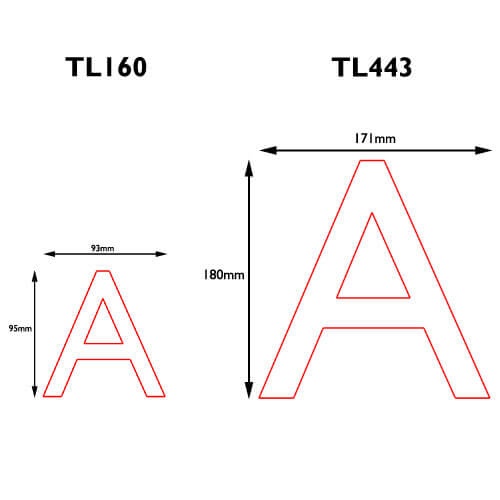

A
ZN0229– 95mm
ZN0255– 180mm

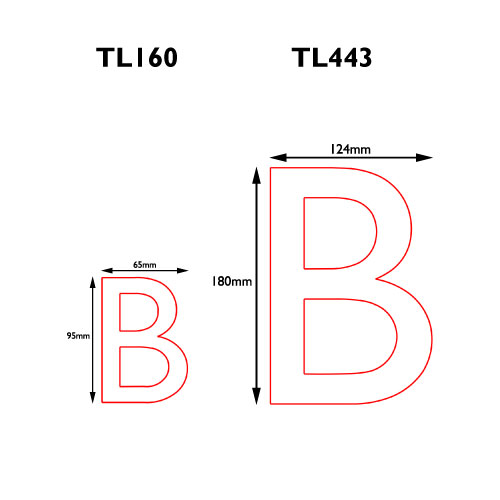

B
ZN0230– 95mm
ZN0230– 180mm

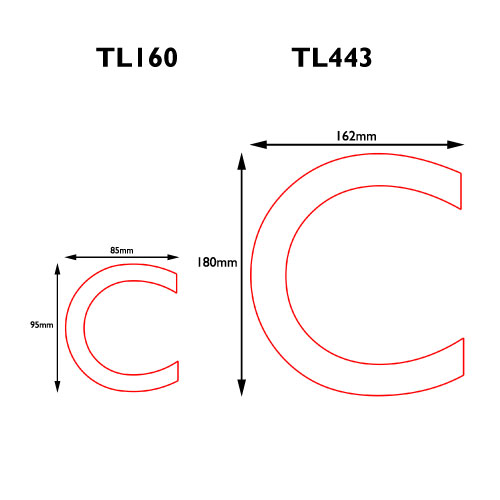

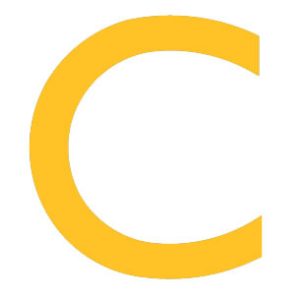

C
ZN0231– 95mm
ZN0257– 180mm

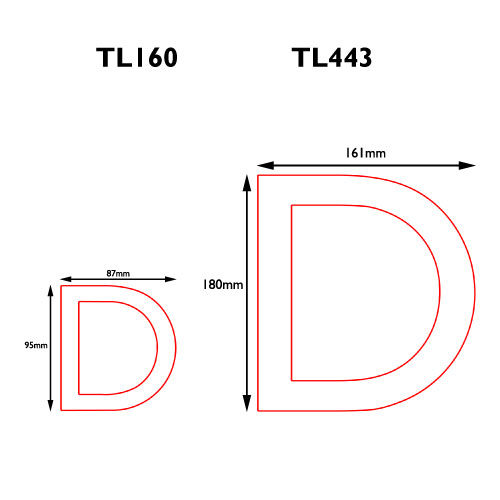

D
ZN0232– 95mm
ZN0258– 180mm

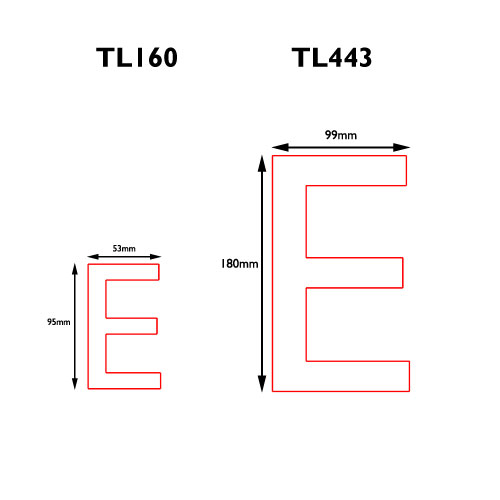

E
ZN0233– 95mm
ZN0259– 180mm

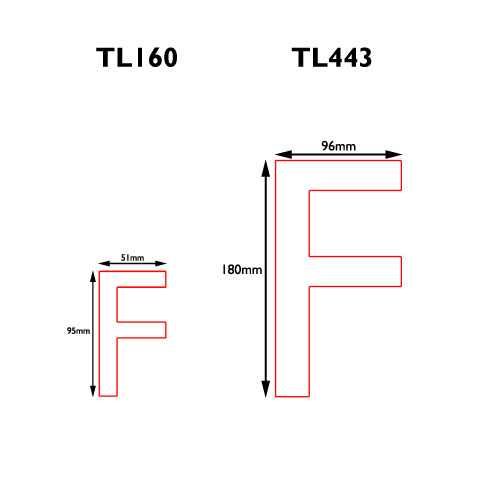

F
ZN0234– 95mm
ZN0260– 180mm

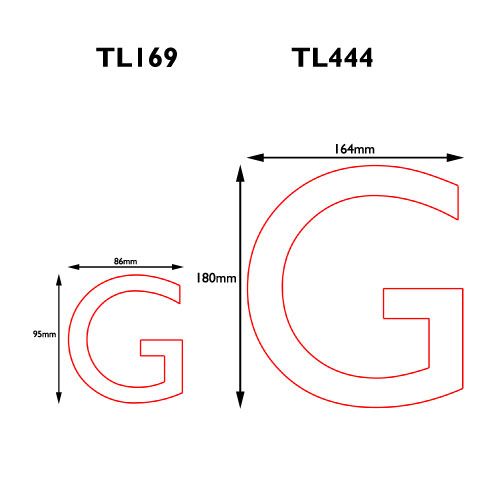

G
ZN0235– 95mm
ZN0261 – 180mm

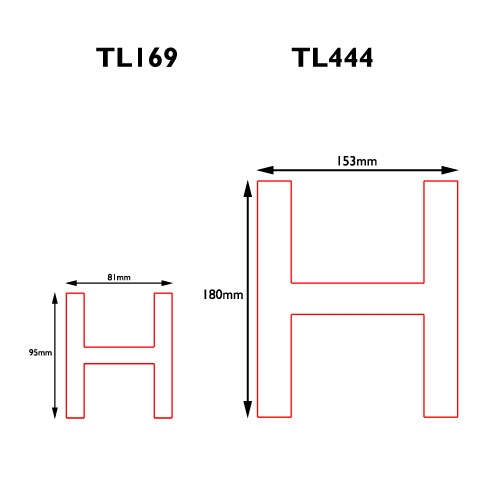

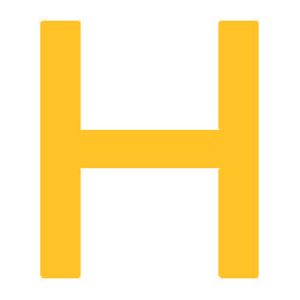

H
ZN0236– 95mm
ZN0262– 180mm

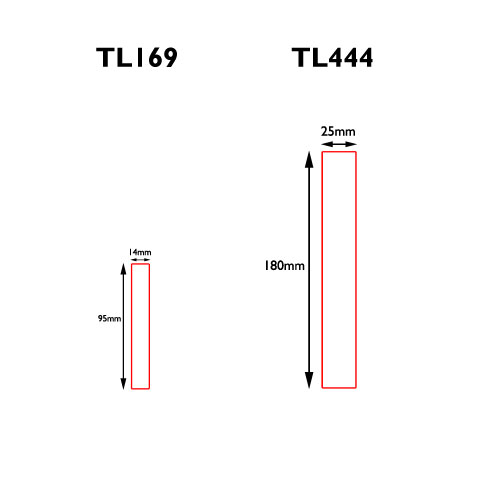

I
ZN0237– 95mm
ZN0263– 180mm

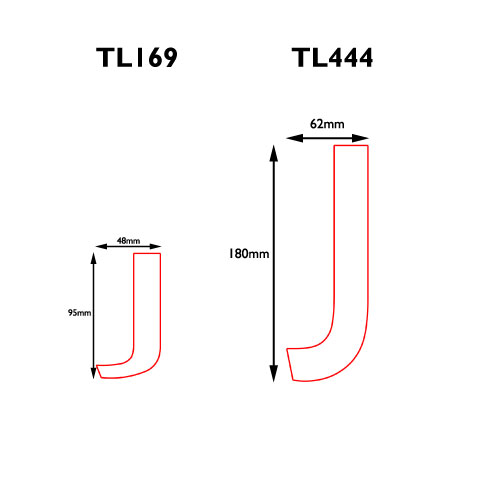

J
ZN0238– 95mm
ZN0264– 180mm

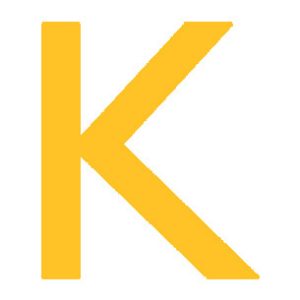

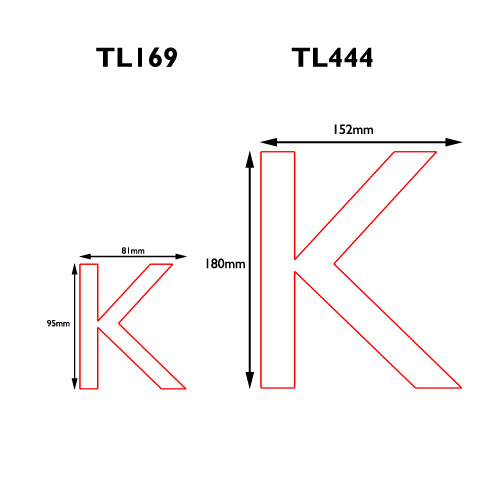

K
ZN0239– 95mm
ZN0265– 180mm

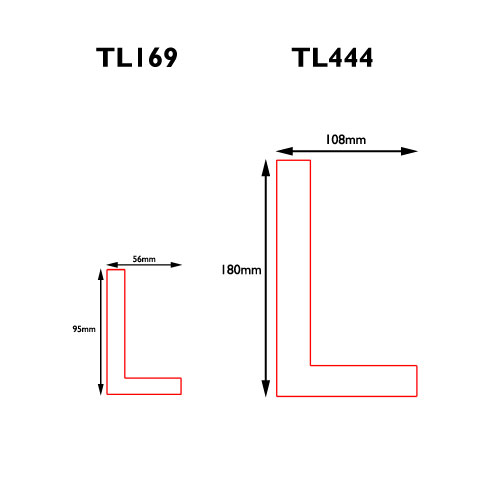

L
ZN0240– 95mm
ZN0266– 180mm

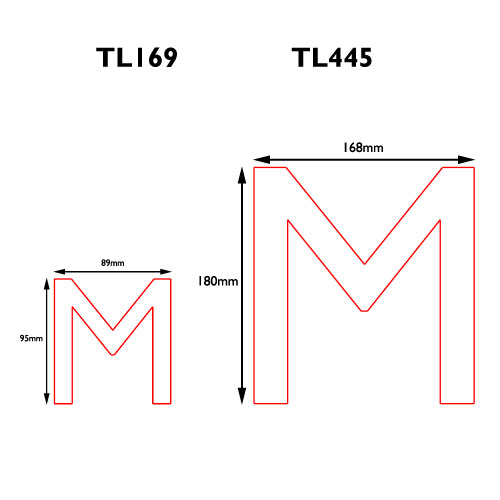

M
ZN0241– 95mm
ZN0267– 180mm

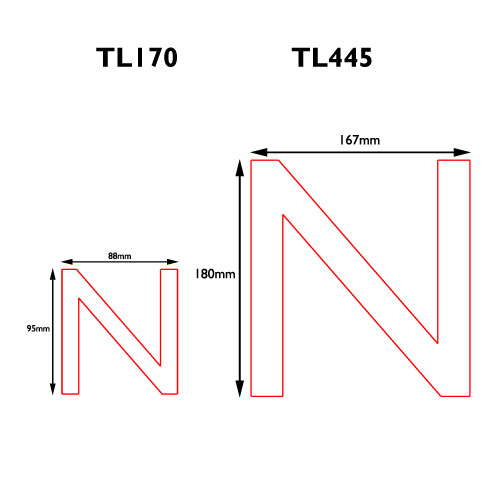

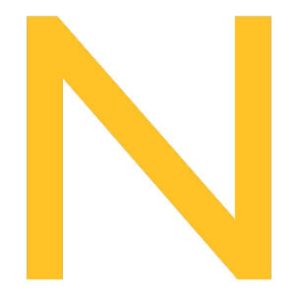

N
ZN0242– 95mm
ZN0268– 180mm

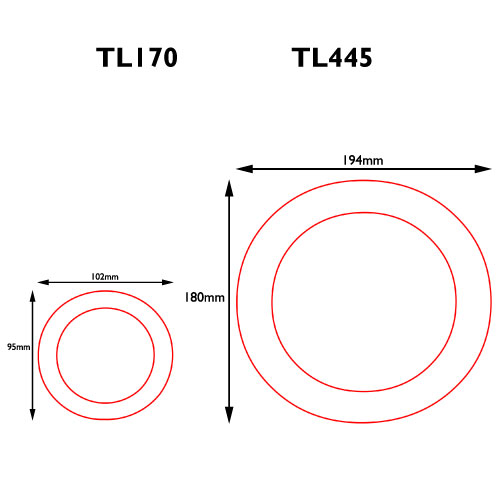

O
ZN0243– 95mm
ZN0269– 180mm

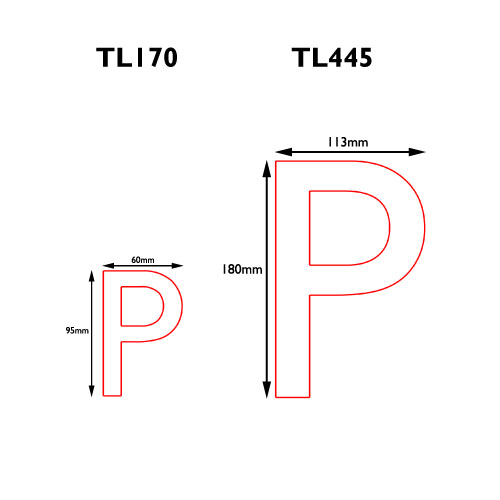

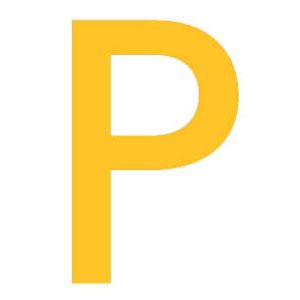

P
ZN0244– 95mm
ZN0270– 180mm

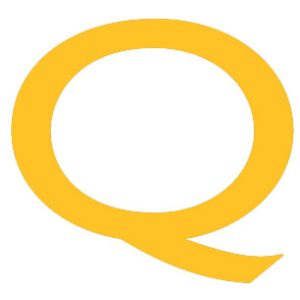

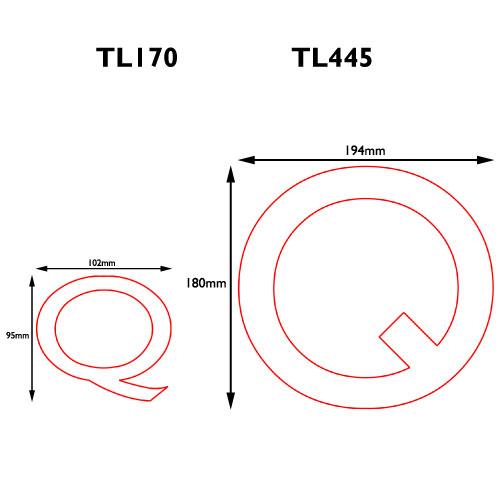

Q
ZN0245 – 95mm
ZN0271– 180mm

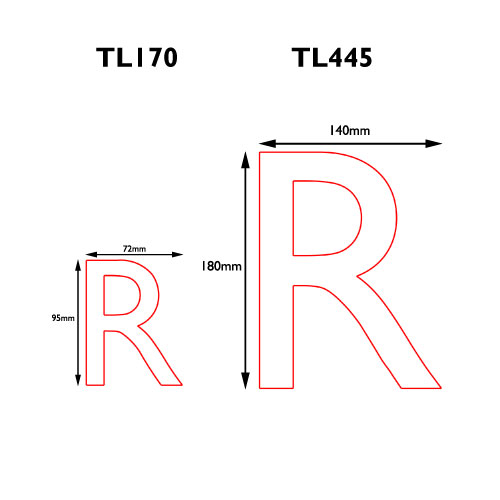

R
ZN0246– 95mm
ZN0272– 180mm

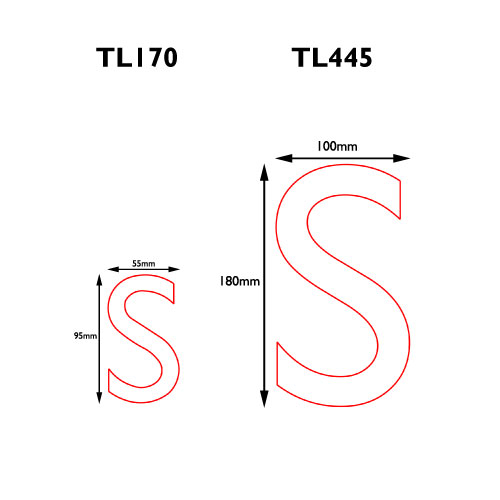

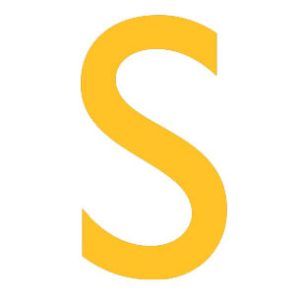

S
ZN0247– 95mm
ZN0273– 180mm

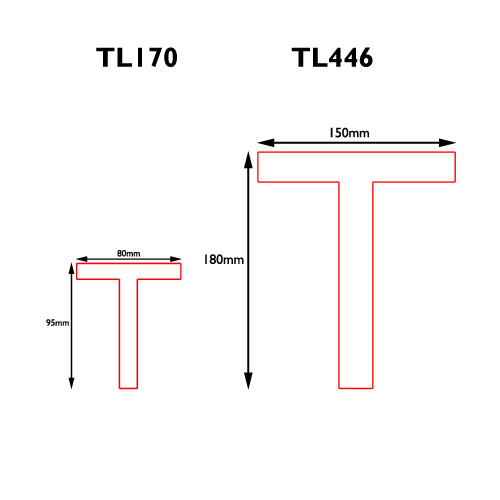

T
ZN0248– 95mm
ZN0274– 180mm

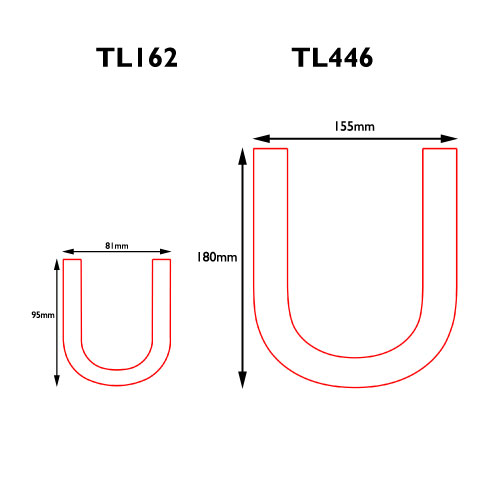

U
ZN0249– 95mm
ZN0275– 180mm

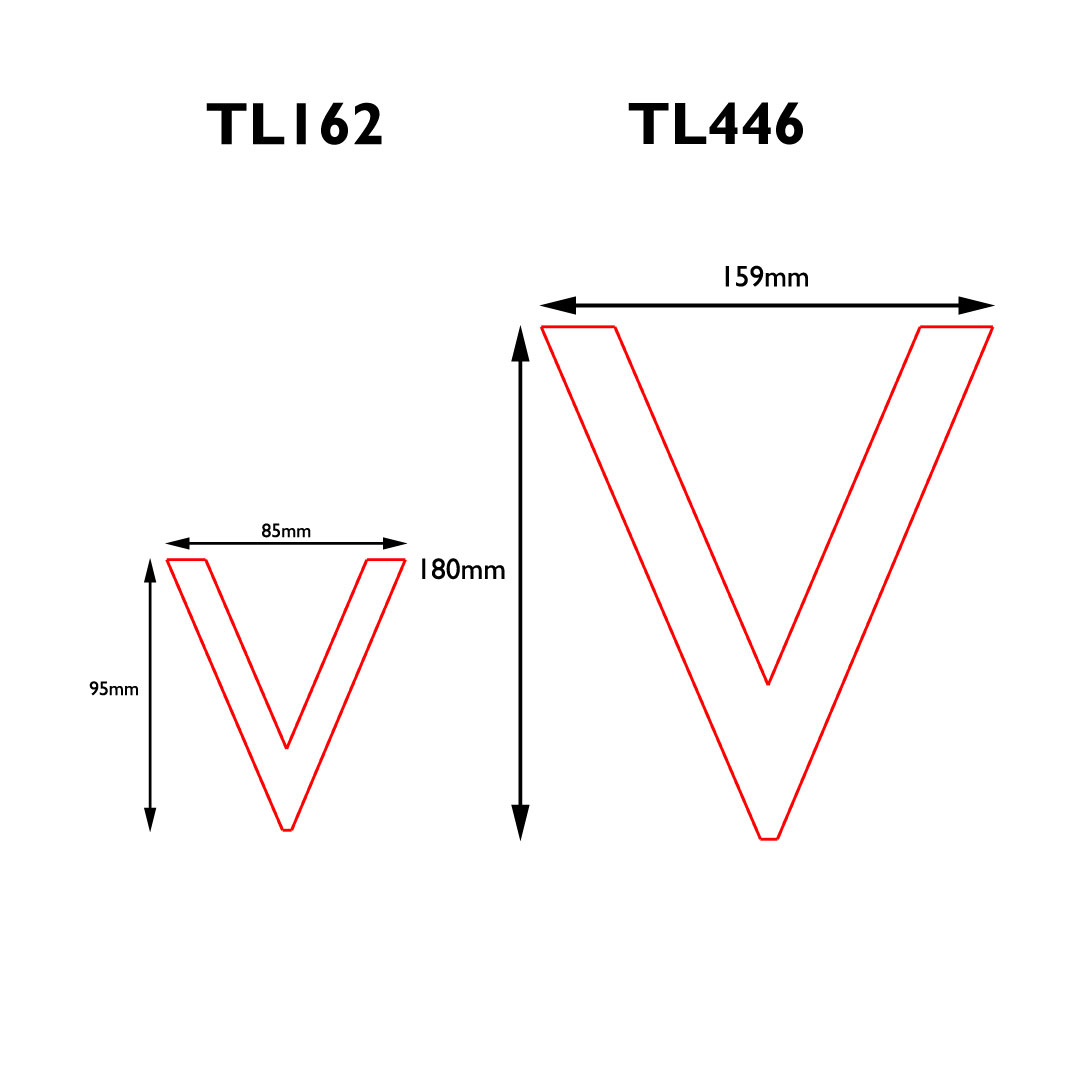

V
ZN0250– 95mm
ZN0276– 180mm

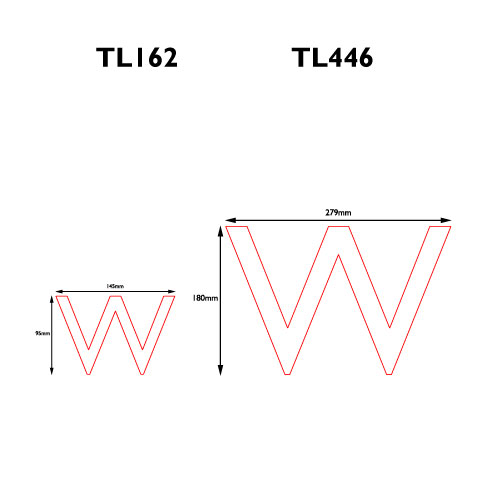

W
ZN0251– 95mm
ZN0277– 180mm

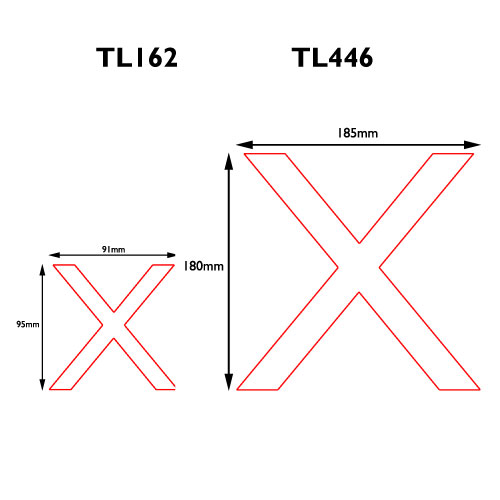

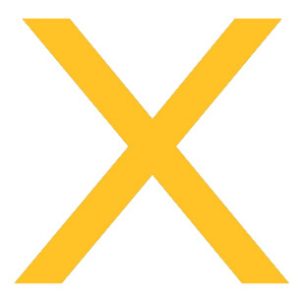

X
ZN0252– 95mm
ZN0278– 180mm

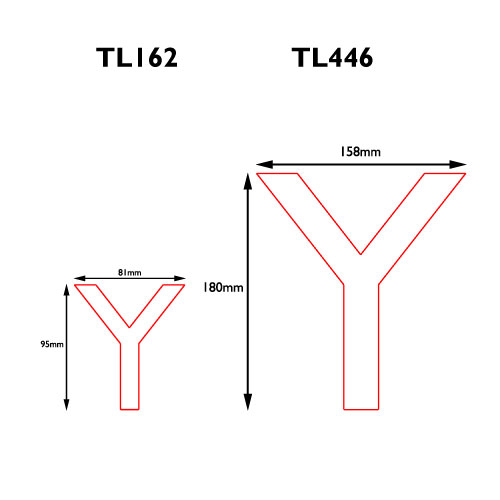

Y
ZN0253– 95mm
ZN0279– 180mm

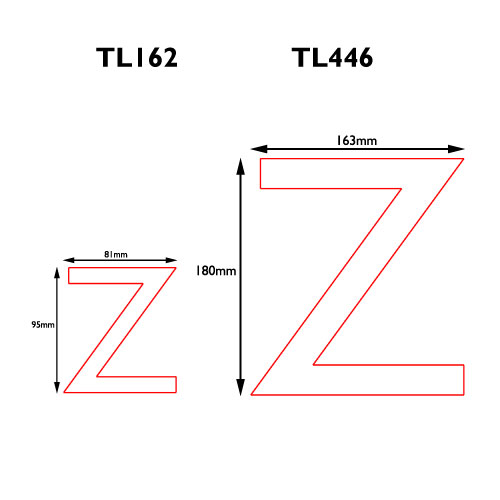

Z
ZN0254– 95mm
ZN0280– 180mm
Colours
H6907N
Pantone / RAL
Black U / 9011
Black
H6907R
Pantone / RAL
1797 U / 3020
Red
H6907O
Pantone / RAL
130 U / 1007
Orange
H6907Y
Pantone / RAL
107 U / 1016
Yellow
H6907V
Pantone / RAL
361 U / 6018
Green
H6907B
Pantone / RAL
2995 U / 5015
Blue
H6907W
Pantone / RAL
White / 9003
White
